1700C Hydrogen Tube Furnace With An Alumina Tube Size OD60mm
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
ProgramTherm
Product Description
Hydrogen Tube Furnace up to 1700 degree C
Product Description:
Hydrogen Tube Furnace workstation generally consists of a tube furnace, a high vacuum pump unit, filtration device for the Hydrogen or Auto ignation device and other assembling parts such as furnace tube, flanges, etc. Tmax 1700°C, the ultimate vacuum rate goes to 10^-3 torr with molecular vacuum pump units. This kind of tubular furnace is competent for the experiments as CVD, Diffusion, and other thermo-treatments under vacuum status and atmosphere protection.

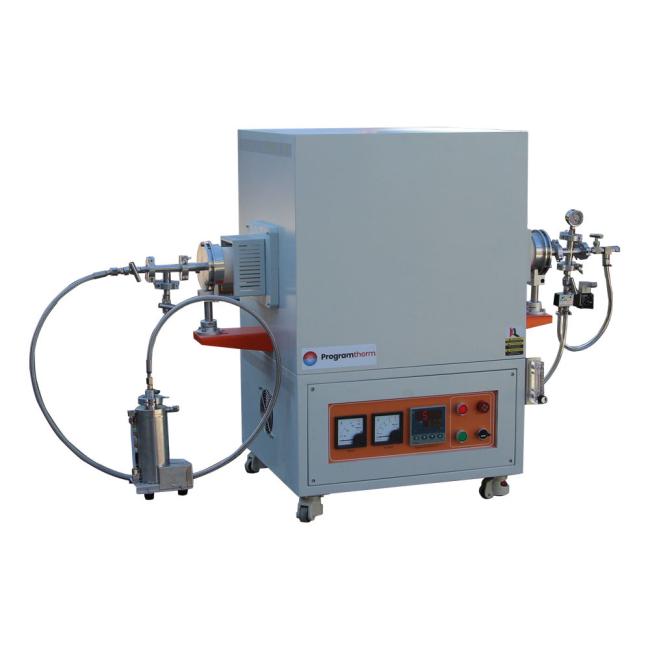

Front View for 1700C Rotary Tube Furnace
Main Features
- Tmax 1700°C
- Dual steel structure, minium heat loss
- Multi-channel precise mass flow gas control
- Filtration device or Auto ignation device
- Multiple gas inlets and outlets
- Max vacuum level 10E-3 torr
- Powerful MoSi2 heating elemets ensure uniform temperature
- PID controller with programmable 30 segments
- Alumina tube and SS304 sealing flanges included
- Dual flanges support provides better sealing and longer tube life
- Non-Split furnace chamber to protect heat loss
- Long life type B thermocouple
- CE standard
Safety
-
- Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
- Overheat protection shuts down the tube furnace if temperature is outside of acceptable range (refer to controller’s manual) or when the thermocouple is broken or malfunctions.
- Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
- Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot
Technical Parameters:
| Model No. | PTC D60/300/17 |
| Heating zone | Zone length:300mm /12″ Uniform temp zone:140mm Temperature uniformity +/- 5C |
| Power | 5KW AC208-240V, 50/60Hz, 1 phase |
| Working temperature | Tmax 1700°C (3092°F) Continuously 1600°C (2912°F) |
| Temperature controller | Yudian PID controller Auto-tune function Programmable 30 segments Temperature accuracy +/- 1°C |
| Heating rate | ≤10°C / min |
| Thermocouple | B type |
| Furnace tube | Material: Alumina content 99.6% Size: OD60, length 900mm |
| Vacuum flanges | SS304 sealing flanges Multiple gas inlets and outlets |
| Vacuum level | Max 10E-5 torr with molecular pump |
| Chamber lining | Mitsubishi Raw Material high alumina 1800# fiber board |
| Electronic components | Schneider maker air switch, AC contactor, SSR Relay etc. |
| Heating element | Powerful MoSi2 rods |
| Shipping info | Weight: 265 kgs W980xL600xH1360mm |
| Compliance | CE, ISO |
| Warranty | 18 months limited warranty with lifetime technical support |
Application Notes
- Don’t fill any explosive gasses such as Hydrogen or Methane into the tube without necessary safety controls and supervision.
- Tube furnaces with quartz tubes are designed for use under vacuum and low pressure < 0.2 bars / 3 psi / 0.02 MPa.
- Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating
Size Comparison
| Item name | PTC D40/300/17 | PTC D80/300/17 | PTC D100/300/17 |
| Heating length | 300mm | 300mm | 300mm |
| Tube size | OD40xL900mm | OD80xL900mm | OD100xL900mm |
| Power | 3 KW | 4 KW | 7 KW |
| Weight | 185 KGS | 238 KGS | 356 KGS |
