Controlled Atmosphere Top Hat Furnace 1700°C (OD12″ 21L)
Controlled Atmosphere Top Hat Furnace 1700°C (OD12″ 21L)
Overview
Top hat furnace also called elevator furnace or bell type furnace. Features stable electrically driven bottom loading system, easy for sample loading and unloading, all sides heating achieves an outstanding temperature uniformity, controlled atmosphere. Constructed dual steel housing, stability and low temperature leakage, round vertical chamber lined with 1850# high alumina ceramic fiber. Our laboratory standard top hat furnace covers Tmax 1750 degrees Celsius with capacities up to 96 liters, which is suitable for multiple heat treatments such as calcination, sintering and other processes on new materials, ceramics in labs and industrial. Programtherm supplies a variety of top hat furnaces, and programtherm top hat furnace makes your heat treatment more successful.essful.
Main Features
- Tmax 1700 °C (In air)
- Bottom loading, elevator hearth, top hat furnace
- Dual steel structure with fan cooling for low surface temperature
- Sealed chamber structure, multiple gas inlets and outles
- Auto lifting bottom, available for four sides loading
- Bottom heating protected by multi-steps Alumina tiles which provide for a level stacking surface
- Fiber-insulated Round chamber with MoSi2 rods heating from four sides, which ensures maximum temperature stability and uniformity
- 7″ touchscreen controller with USB adaptor
- Long life type B thermocouple
- CE certified, standard
Safety Measures
- Built-in Ammeter and dual Voltmeters for easy monitoring and troubleshooting.
- Overheat protection shuts down elevator hearth furnace if temperature is outside of acceptable range or when the thermocouple is broken or malfunctions
- Power failure protection resumes furnace operation right after the point of failure when power is reestablished
- Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot
Product illustration

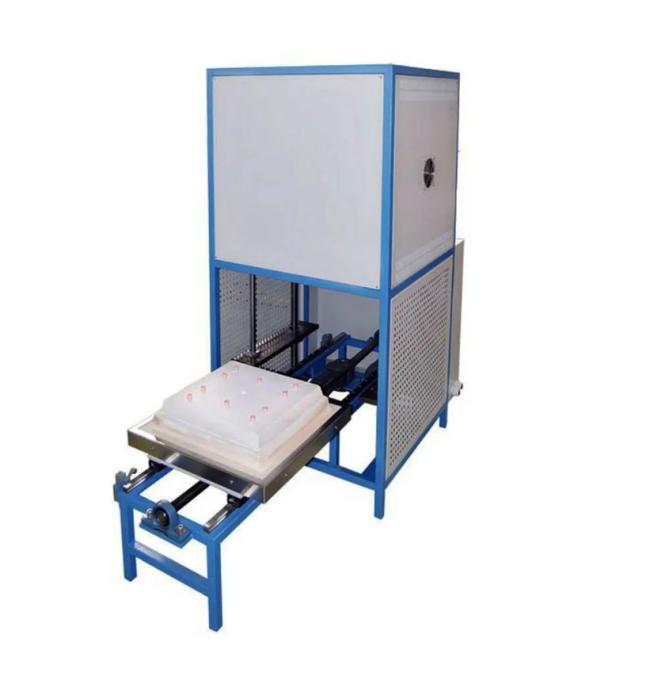

Bottom Loading Details for Top Hat Furnace 1700°C

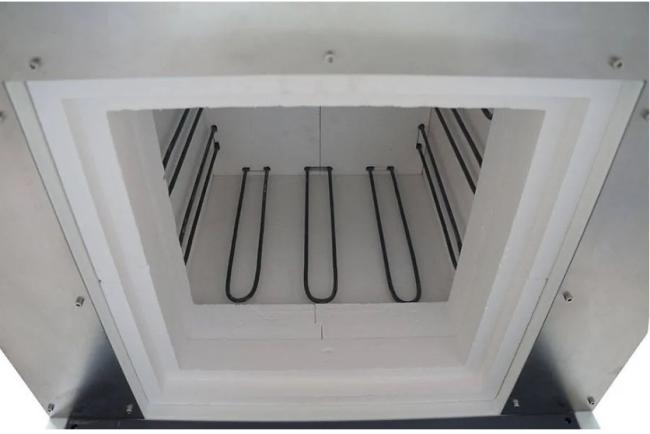

Chamber Detail for Top Hat Furnace 1700°C
Vertical Round Furnace Chamber with Alumina Lining Board, MoSi2 rod Heating from All Sides
Technical Specifications
| Model No. | PEA D300/17 |
| Chamber size (DxWxH) | 300x300mm” Capacity: 21 Liters |
| Power supply | 8KW AC380-415V, 50/60Hz, three phases |
| Working temperature |
Tmax 1700°C (3092°F) |
| Temperature controller |
Yudian PID controller |
| Heating rate | ≤10°C /min |
| Thermocouple | B type |
| Chamber lining | Mitsubishi Raw Material high alumina 1850# fiber board |
| Electronic components | Siemens maker air switch, AC contactor, SSR Relay etc |
| Heating element | MoSi2 (U shape, 9pcs) |
| Shipping info | Weight: 430 kgs W810xL850xH1960mm |
| Compliance | CE, ISO |
| Warranty | 18 months limited warranty with lifetime technical support |
Application Notes
- However, toxic or explosive gases that may generate from the sample during the heating are not recommended for use with this programmable muffle furnace without necessary safety controls and supervision.
- Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating
Size Comparison
| Item name | PEA D100/17 | PEA D150/17 | PEA D200/17 |
| Inner size (DxWxH) | OD100xH100mm | OD150xH150mm | OD200xH200mm |
| Capacity | 1 L | 2.5 L | 6 L |
| Power | 3 KW | 4 KW | 5 KW |
