Rotary Tube Furnace up to 1700 degree C features single heating zones with length of 300mm

Product Overview for 1700C Rotary Tube Furnace

PTR D80/300/17 is a 1700 degree C rotary tube furnace, features single heating zones with length of 300mm, rotating speed could be adjusted. The tube furnace could be work with molecular vacuum pump reach vacuum level of max 10E-3 torr. It is mianly build for heat treatment of particulate materials continuous flowing at high temperatures.

Main Features

• Tmax 1700°C
• Single zone, Horizontal, non-split, Rotary Tube Furnace
• High alumina content 99.6% ceramic tube
• Motor drived tube rotating speed 1-8 RPM
• Max vacuum level 10E-3 torr
• Multiple gas inlets and outlets
• MoSi2 heating elements
• SS304 sealing flanges and gauge included
• Type B thermocouple
• CE standard
• B thermocouple
• CE standard

Ramping, Dwelling, Cooling Curves for 1700 Series Tube Furnaces

Safety Measures

• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller’s manual) or when the thermocouple is broken or malfunctions.
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product Gallery

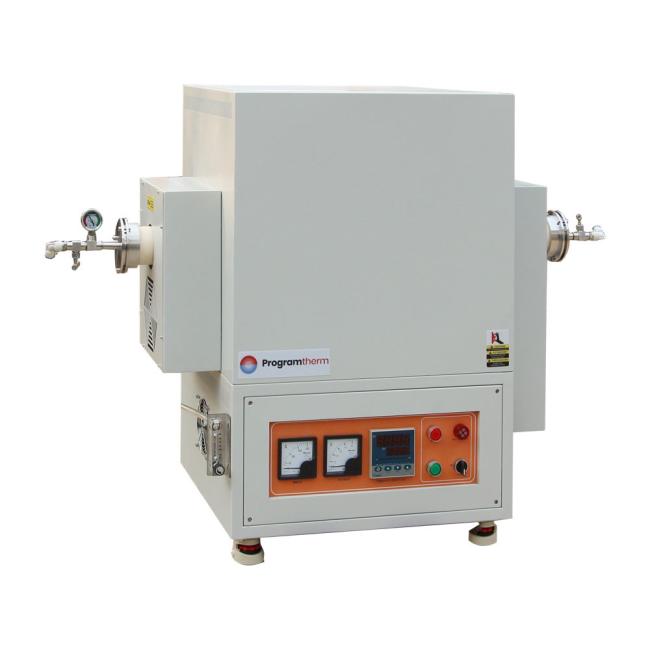

Front View for 1700C Rotary Tube Furnace

Technical Specifications

Application Notes

• Don’t fill any explosive gasses such as Hydrogen or Methane into the vacuum tubular without necessary safety controls and supervision.
• Vacuum Tube furnaces with alumina tubes are designed for use under vacuum and low pressure < 0.2 bars / 3 psi / 0.02 MPa.
• Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating

Size Comparison
