High Temperature Muffle Furnace 1700 C (8″x8″x8″, 8L)

 Product Overview for 1700C Muffle Furnace

PM L8/17 is a high temperature muffle furnace, features a dull-wall steel housing helps minimize heat loss to exterior surface. The muffle furnace chamber is build with high temperature resistance 1800 grade alumina fiber insulation and molybdenum silicide (MoSi2) heating elements, Tmax 1700°C. High temperature muffle furnace is an ideal for multiple heat treatment applications.

Main Features

• High Temperature 1700 °C Muffle Furnace
• Double steel shell with cooling fan ensures low surface temperature
• Fiber-insulated chamber for maximum temperature stability and uniformity
• Powerful MoSi2 rods heating from two sides give an improved temperature gradient
• Programmable Digital Temperature Controller with 30 segments
• Long life type B thermocouple
• CE certified, standard

Safety Measures

• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller’s manual) or when the thermocouple is broken or malfunctions
• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product Gallery

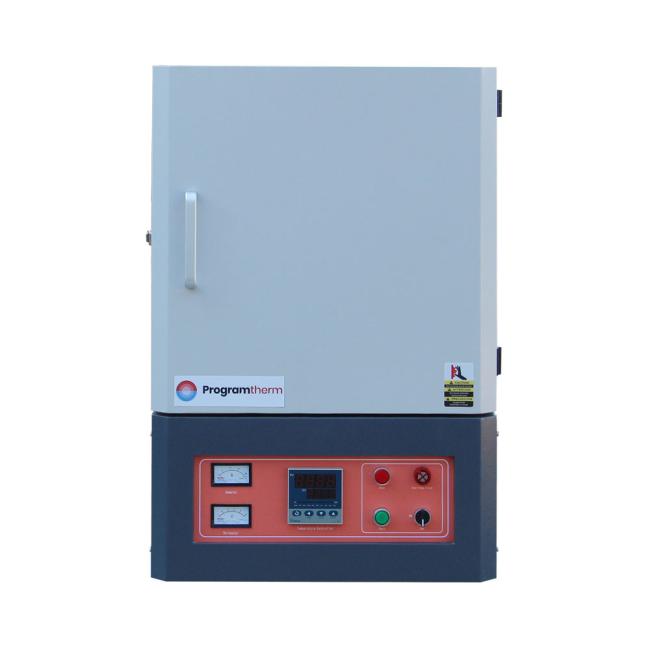

Front View for High Temperature Muffle Furnace 1700 degree C

Front view for 1700 degree C High Temperature Tube Furnace

Technical Specifications

Application Notes

• However, toxic or explosive gases that may generate from the sample during the heating are not recommended for use with this muffle furnace 1200 C without necessary safety controls and supervision.
• Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating

Size Comparison
