Product Overview

PM L8/14 Tmax 1400℃.Carbon steel double air-cooling housing and beautiful powder electrostatic spraying process.High temperature and corrosion resistant. Chamber lining uses high alumina 1600# ceramic fiber raw material,high corrosion resistant,long service life.Heating element uses SIC rod,uniform temperature field.Temperature control system uses Shimaden PID temperature controller,phase-shift trigger, thyristor control,programmable 32 segments, high temperature control accuracy.Protection system with Power off, over-temperature, thermocouple breaking and burnout protection.An ideal tool for material research and preparation of small-sized samples in the laboratory. It can perform furnace fire assay, sealed firing of ceramics and glass, ignition test, gravimetric analysis and heat treatment of steel parts, stone, etc.

Main Features

• TMax 1400°C
• Two-color high-quality epoxy powder electrostatic spraying
• Carbon steel double housing,fan cooling,surface temperature Rt+45℃
• High alumina 1600# ceramic fiber raw material,CNC carved,good thermal insulation,Temp resistance 1600°C
• Furnace door and furnace bottom uses wear-resistant alumina insulation material
• U-shape SIC rod, resistant to oxidation and corrosion, fast heating
• Durable Type S Thermocouple
• Smart Shimaden PID controller, 32 segments programmable,curve heating and set temperature rate
• Power off, over-temperature, thermocouple breaking and burnout protection
• Siemens electrical components, long service life
• Stable performance, low noise and high safety
• CE certification

Safety Measures

• The muffle oven furnace with built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller’s manual) or when the thermocouple is broken or malfunctions
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product Details

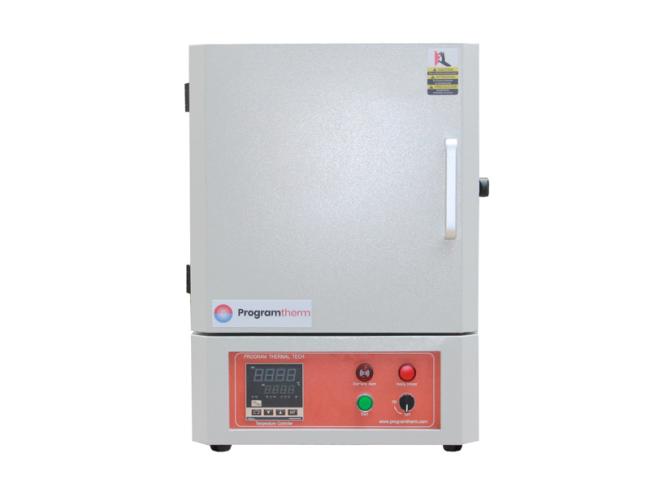

Laboratory Fire Assay Muffle Furnace

• PM L8/14 Laboratory Fire Assay Muffle Furnace consists of three parts: furnace body, temperature control system and air cooling system.
• Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.With a built-in cooling fan,the surface temperature Rt+45℃.
• Siemens electrical components, superior quality
• Export quality, CE certified.

Laboratory Fire Assay Muffle Furnace,Chamber.

• Chamber lining uses high alumina 1600# ceramic fiber raw material,CNC carved.Square chamber,chamber walls tight coupling.
• U-shape SIC rod, uniform temperature field,TMax 1400°C.
• Durable S-type thermocouple with long service life.

1400℃ Laboratory Fire Assay Muffle Furnace,Electrical control panel.

• Shimaden PID temperature controller,phase-shift trigger, thyristor control,32 segments programmable,high temperature control accuracy.
• Consists of temperature control instruments, function buttons, and alarm indicators. Responsible for monitoring and controlling the temperature in the furnace to ensure temperature stability and accuracy during experiments or production processes.
• Power off, over-temperature, thermocouple breaking and burnout protection
• Temperature self-tuning function
• With 485 communication interface(Optional)

Technical Specifications

Application Notes

• Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
• Please do not inject flammable, explosive or strong corrosive gases without safety measures.
