1700C Single Zone Rotary Tube Furnace With Flange And 80mm Alumina Tube - PTR D80/300/17

Product Overview

PTR D80/300/17 is a 1700℃ single zone, benchtop rotary tube furnace. Rotating speed 1-8rpm freely adjusted, allowing the powdery or granular samples inside to fully and uniformly react with in atmospheres or vacuum sintering. Double-layer carbon steel shell structure. 1800# high aluminum ceramic insulation. 99.5% alumina tube, quick-opening sealing flanges with 1/4" gas pipe adaptor, MoSi2 heating elements, programmable 30 segments digital controller with an accuracy of +/-1C.

Main Features

• Tmax 1700°C
• Single Zone, benchtop, rotary tube furnace
• Dual steel structure, minium heat loss
• Individual set of single-channel gas supplying system
• Rotating speed 1-8rpm
• Fiber-insulated chamber for maximum temperature stability and uniformity
• Powerful MoSi2 heating elemets ensure uniform temperature
• Digital PID controller with programmable 30 segments
• 99.5% Alumina content processing tube with SS304 sealing flanges with 1/4" gas pipe adaptor
• Dual flanges support provides better sealing and longer tube life
• Long life type B thermocouple
• CE certified, standard

Safety Measures

• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller’s manual) or when the thermocouple is broken or malfunctions.
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product Details

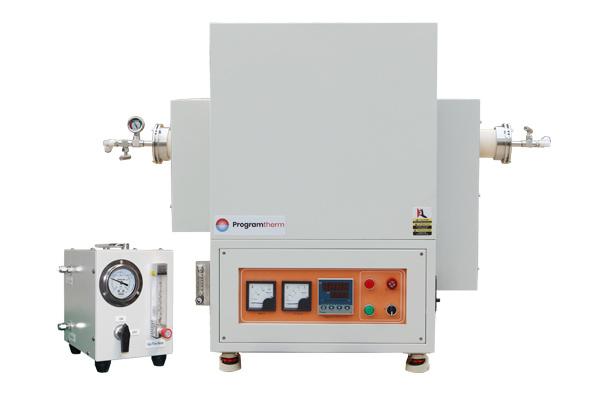

1700°C SINGLE ZONE ROTARY TUBE FURNACE WITH FLANGES AND ALUMINA TUBE

• The 1700°C single zone rotary tube furnace is mainly composed of five parts: furnace body, furnace tube, flange sealing accessories, gas supplying system and temperature controling system
• The furnace outer steel shell is processed with pickling and phosphating, environment powder coating on the surface, corrosion and oxidation resistance, built-in cooling fan, surface temperature Rt+45℃
• Exquisite appearance, ISO, CE compliance

1700°C SINGLE ZONE HIGH TEMPERATURE ROTARY TUBE FURNACE CHAMBER

• High alumina ceramic insulation, CNC engraving, chamber walls coupling tightly, U type MoSi2 heator, temperature resistant up to 1800C
• Heating length 300mm, suitable for aluminua tube diameter 40-80mm. High alumina processing tube, temperature resistance up to 1700℃,The critical part of the heating zone inside the furnace tube is equipped with the ceramic tube plug, which can effectively prevent heat from escaping and reduce heat loss
• B type thermocouple

NOTE:Chamber structure is only for reference, take the real design as standard

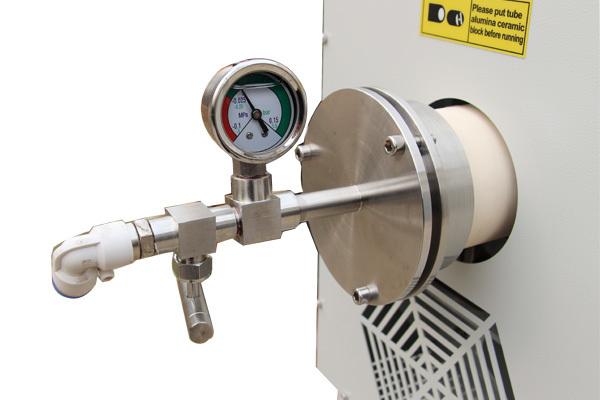

Quick opening flange with rotary joint, 1/4" pagoda gas nozzle

• Equipped with SS304 quick-opening flange accessories for materials fast loading and unloading, sealed with high-temperature resistant fluorine rubber sealing rings
• The air inlet and outlet adopts G1/4-inch pagoda air nozzle, which can be connected to a PTFE pipe with an outer diameter of 8mm. Max vacuum can reach 10*-7torr
• Equipped with adjustable flange brackets to ensure safe and stable operation of the furnace tube

Individual set of single channel gas supplying device

• The 1200C-1700C laboratory tube furnaces are all equipped with a single-channel gas supply device
• Double ferrule joints; gas float flowmeter, the flow rate is adjustable ranges 60-600ml/min
• Available gases: N2, Ar, H2, CO etc

NOTE:When filling reducing gases, check valves, one-way valves, exhaust gas treatment systems, etc. need to be configured

CONTROL PANEL FOR 1700°C SINGEL ZONE HIGH TEMPERATURE ROTARY TUBE FURNACE

• Integrated design with temp controller, Ammeter, voltmeter, function buttons on panel
• Intelligent PID temperature controller with 30-segment programs, accuracy of ±1°C
• Power off, over-temperature, thermocouple breaking and burnout protection
• Temperature self-tuning function
• With 485 communication interface (Optional)

HEATING PROGRAMS FOR 1700°C SINGLE ZONE ROTARY TUBE FURNACE

• Programmable 30 segments, heating rate 1-10C/min freely adjusted
• Good thermal insualtion, natural cooling, cooling down gently
• 7" touchscreen panel is optional, heating programs can be showed timely, and downloaded

Technical Specifications

Application Notes

• The processing tube pressure should be lower 0.02MPa
• Gas source should equip the pressure reducing valve
• Before filling reduction gases like H2, should pump the air out of the tube

Size Comparison
