1200C Vertical Dual Zones Tube Furnace With OD60mm Metal Tube
Product Overview
PT D60/600/12/2 is a 1200C Vertical Dual zones Tube Furnace with OD60mm Metal Tube. The furnace is designed with two heating zones with embedded alloy coil wire. The furnace tube is made of 310SS stainless steel tube with built in stirring blade, the effective loading volume is 10L. Especially suitable for the heat treatment process of granular materials, such as calcining ceramic oxide and graphite powder etc.
Main Features
- Tmax 1200℃
- Dual zones, verticable tube furnace
- Manual furnace door with hydraulic rods assitance
- Ceramic fiber insulation chamber with embedded heating wire
- 310SS tube with built in stirring blade, loading volume 10L
- Equip air cooling on both tube ends
- SS304 sealing flange with gas inlet and outlet
- N type thermocouple
- Digital PID controller with programmable 30 segments
- Dual flanges support provides better sealing and longer tube life
- CE certified
Safety Measures
- Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
- Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller’s manual) or when the thermocouple is broken or malfunctions.
- Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
- Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot
Product Details

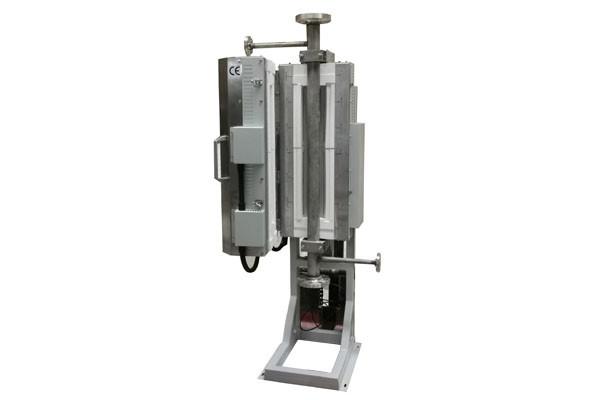

1200C Vertical Dual zones Tube Furnace with OD60mm Metal Tube
Heating programs for 1200°C large verticable rotary tube furnace
- Programmable 32 segments, heating rate 1-20C/min freely adjusted
- Good thermal insualtion, natural cooling, cooling down gently
- 7" touchscreen panel is optional, heating programs can be showed timely, and downloaded
Technical Specifications
| Model No. | PT D60/600/12/2 |
| Heating length |
600mm/24″ |
| Power supply |
15KW AC380-415V 50/60Hz 3 phases |
| Working temperature |
Tmax 1200°C (2192°F) |
| Temperature controller |
Shimaden PID controller |
| Heating rate | ≤20°C / min |
| Thermocouple | N type |
| Furnace tube | Material: 310SS, temperature resistance up to 1000 degree C Size:OD60mm |
| Sealing flange |
SS304 sealing flange |
| Vaccum level |
10-5torr provided with molecular pump unit |
| Chamber lining | 1500# Ceramic alumina insulation |
| Electronic components | Schneider maker air switch, AC contactor, SSR Relay etc. |
| Heating element |
Embedded alloy coil wire |
| Shipping info | Weight: 1200kgs W2290xL950xH2230mm |
| Compliance | CE, ISO |
| Warranty | 18 months quality warranty with lifetime technical support (excluded consumable parts such as quartz tube, thermocouple etc) |
Application Notes
- Quartz tube pressure should be lower 0.02MPa
- Gas source should equip the pressure reducing valve
- Before filling reduction gases like H2, should pump the air out of the tube
- When filling gases from gas inlet in the tube, should make sure the gas outlet valve open
