1200℃ Small Table-top Lifting Muffle Furnace
Product Overview
PE D80/80/12 is a Small Table-top Lifting Muffle Furnace.The stable motorized bottom loading system makes it easy to load samples.Carbon steel double air-cooling housing,high temperature and corrosion resistance. Embedded HRE alloy coil wire heating,uniform temperature field.Round chamber,chamber lining uses High aluminum 1500#ceramic fiber board,good corrosion resistance.Yudian PID controller, Programmable 50 segments, Temperature accuracy +/- 1°C. It is an ideal furnace for colleges and universities, scientific research institutes, industrial and mining enterprises to do powder sintering, ceramic sintering, glass melting, high-temperature experiments, and quality inspection etc.
Main Features
- TMax 1200°C
- Carbon steel double air-cooled housing,reduce surface temperture
- Round chamber,High aluminum 1500#ceramic fiber board,CNC carved,high temperature resistance,efficient energy saving
- Bottom electric lifting, loading and unloading freely,high production efficiency.
- Embedded HRE alloy coil wire heating,uniform temperature field
- Stainless steel round chassis, double-layer aluminum tray,good thermal insulation effect
- Type N Thermocouple,long service life
- Heating rate:0℃-20℃/min adjustable
- Smart 50-stage programmable automatic temperature control,high temperature control accuracy
- Power off, over-temperature, thermocouple breaking and burnout protection
- CE certification
Safety Measures
- Built-in Ammeter and dual Voltmeters for easy monitoring and troubleshooting.
- Overheat protection shuts down elevator hearth furnace if temperature is outside of acceptable range or when the thermocouple is broken or malfunctions
- Power failure protection resumes furnace operation right after the point of failure when power is reestablished
- Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot
Product Details

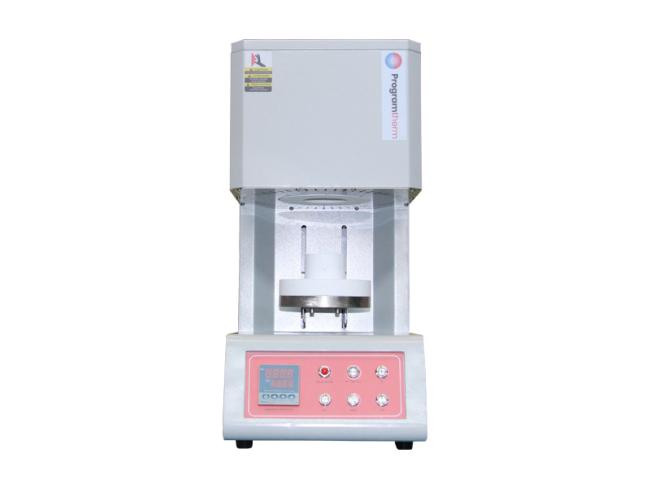

1200°C Small Table-top Lifting Muffle Furnace
- PE D80/80/12 Small Table-top Lifting Muffle Furnace consists of four parts: carbon steel shell, ceramic chamber, temperature control system, and lifting system.
- Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.With a built-in cooling fan,the surface temperature Rt+45℃.
- Siemens electrical components, long service life
- Export quality, ISO,CE certified.

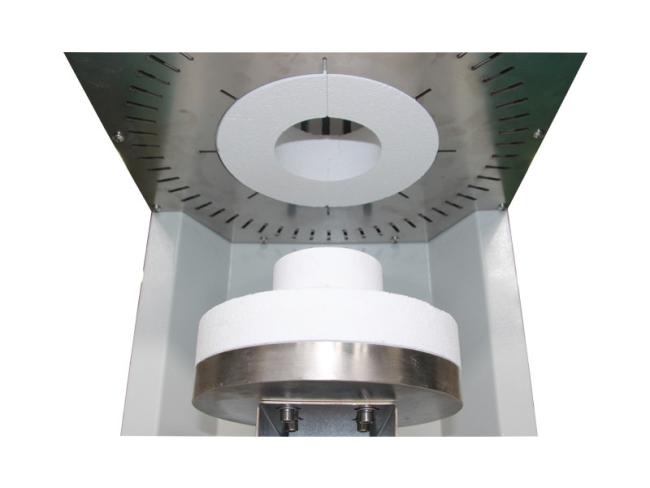

1200°C Small Table-top Lifting Muffle Furnace,Chamber.
- Chamber lining uses High aluminum 1500#ceramic fiber board,CNC carved,round chamber,chamber walls tight coupling.
- Embedded HRE alloy coil wire heated,uniform temperature field,TMax 1200°C.
- Durable N-type thermocouple,long service life.

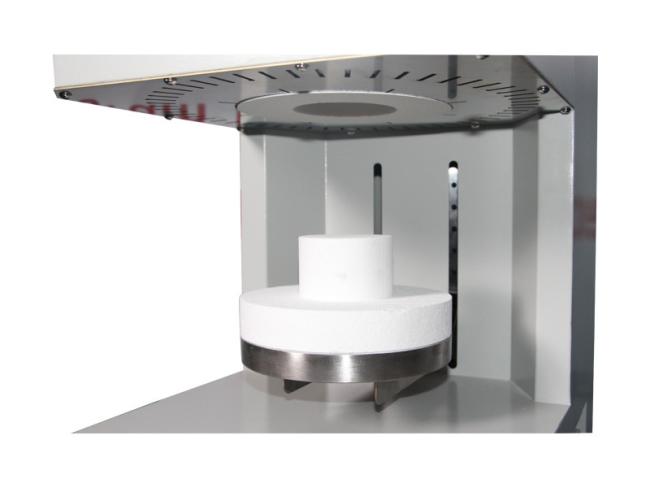

1200°C Small Table-top Lifting Muffle Furnace,Lifting system
- Stainless steel round chassis, double-layer aluminum tray, total length 100mm, good thermal insulation effect.
- Ball screw with double-line slider module, electric lifting.
- Built-in limit switch, lifting speed 0-2m/min adjustable, tight coupling when the furnace door is closed.

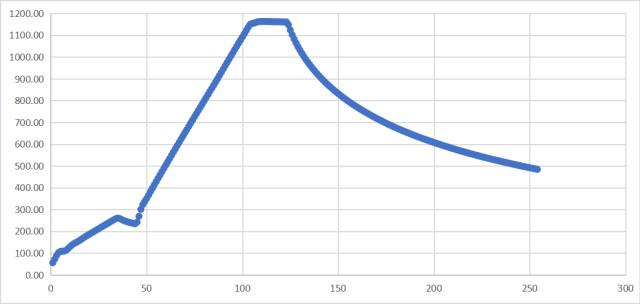

Heating Programs for 1200°C Elevator Furnace
- Yudian PID temperature controller,programmable 50 segments, phase-shift trigger, thyristor control, heating rate 1-20C/min freely adjusted
- Good thermal insualtion, natural cooling, cooling down gently
- 7" touchscreen panel is optional, heating programs can be showed timely, and downloaded
Technical Specifications
| Model No. | PE D80/80/12 |
| Chamber size (DxWxH) | OD100xH400mm Capacity: 1 Liter |
| Power supply | 1.4 KW AC220V, 50/60Hz, single phase |
| Working temperature |
Tmax 1200°C (2192°F) |
| Temperature controller |
Yudian PID controller |
| Heating rate | ≤20°C /min |
| Thermocouple | N type |
| Chamber lining | ceramic fiber board |
| Lifting system |
Stainless steel round chassis, double-layer aluminum tray, total length 100mm. Ball screw with double-line slider module, electric lifting. Built-in limit switch, lifting speed 0-2m/min adjustable. |
| Electronic components | Schneider or Siemens maker air switch,AC contactor,Solid state relay etc. |
| Heating element | HRE alloy coil wire |
| Shipping info | Weight: 80 kgs W500xL450xH700mm |
| Compliance | CE, ISO |
| Warranty | 18-month warranty with lifetime technical support |
Application Notes
- Small cracks may appear on the surface over extended use. A normal occurrence and the cracks can be repaired with alumina coating.
- Please do not inject flammable, explosive or highly corrosive gases.
- For safety, please place the furnace in a ventilated place.
- The sample should be placed in a crucible, not directly in the chamber.
Size Comparison
| Item name | PE L45/17 | PE L96/17 | PE L150/17 |
| Inner size (DxWxH) | 500x300x300mm | 600x400x400mm | 600x500x500mm |
| Capacity | 45 L | 96 L | 150 L |
| Power | 18 KW | 25 KW | 30 KW |
| Weight | 565 KGS | 775 KGS | 1200 KGS |
