Product Overview

PC L1000/12 is a large floor-standing Industrial Chamber Furnace.Carbon steel double housing.Square furnace chamber.Chamber lining uses high alumina mullite bricks,high temperature and corrision resistance.Heating element uses HRE alloy coil wire,mounted on ceramic tube,5-side heating,N-type thermocouple.Smart Shimaden PID controller, 32 segments programmable,high temperature control accuracy.This chamber furnace is mainly suitable for many kinds of heat treatment such as carbon products, metal, ceramic material sintering and so on.

Main Features

• TMax 1200℃
• Industrial, heavy type chamber furnace.Square furnace chamber.High alumina mullite bricks chamber,good high temperature resistance and high strength
• The furnace door opens sideways, and the top of the doorway is inlaid with stainless steel matting, preventing burns caused by heat spillage effectively
• Self-developed new arched furnace top, sturdy and durable with a long service life
• The exhaust holes is arranged with openings at the top of the chamber
• HRE alloy coil wire heated,mounted on ceramic tube,5-sided heating,uniform temperature field
• Power off, over-temperature, thermocouple breaking and burnout protection
• N-type thermocouple
• Heating rate 0℃-20℃/min adjustable
• Good performance and energy saving effect
• CE certification

Safety Measures

• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down the chamber furnace if temperature is outside of acceptable range or when the thermocouple is broken or malfunctions
• Power failure protection resumes furnace chamber operation right after the point of failure when power is reestablished
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product Details

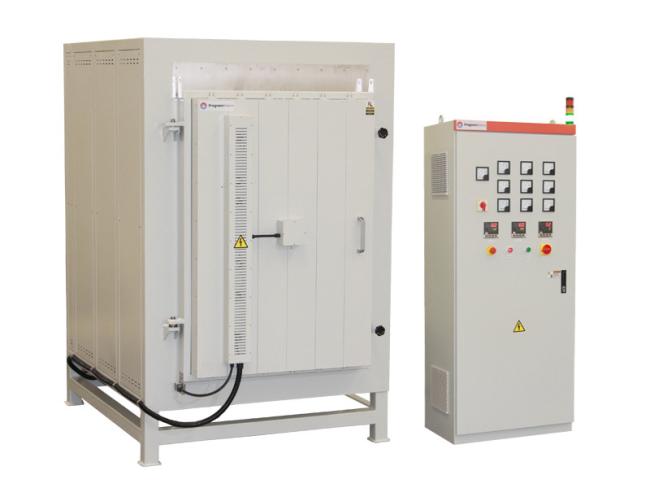

1200℃ Industrial Chamber Furnace

• PC L1000/12 Industrial Chamber Furnace consists of four parts: dual-layer carbon steel shell, furnace chamber, exhaust discharging and temperature control system.
• Separate design of furnace body and temperature control system.
• Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.
• Siemens electrical components,long service life.
• Export quality,ISO,CE certified.

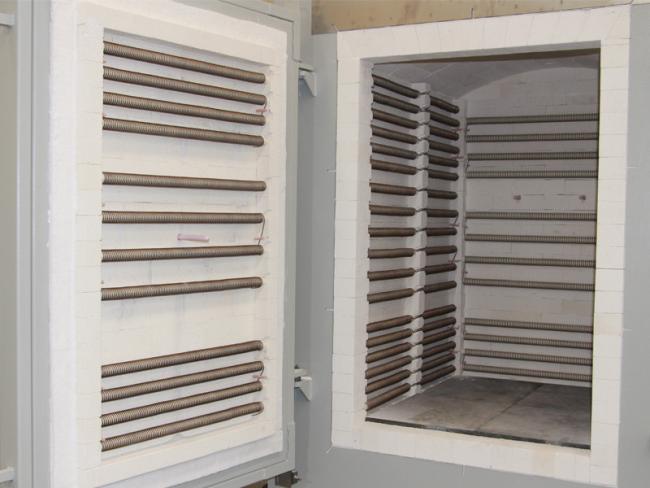

1200℃ Industrial Chamber Furnace,Chamber

• Square chamber. Chamber lining uses high alumina mullite bricks,good high temperature resistance and high strength.Chamber walls tight coupling.
• Heating element uses HRE alloy coil wire,mounted on ceramic tube,5-sided heating,uniform temperature field,TMax 1200℃.
• The left and right sides of the chamber adopt double-row layout of the wire, with strong support in the middle part to prevent the ceramic tube from deformation and breakage due to self-weight under long-term use or high temperature.
• Arch-roof design, sturdy and durable with a long service life.
• The exhaust holes is arranged with openings at the top of the furnace chamber, convenient for the discharge of smoke or exhaust gas generated during the heating process.
• Equip two N-type thermocouples,long service life.

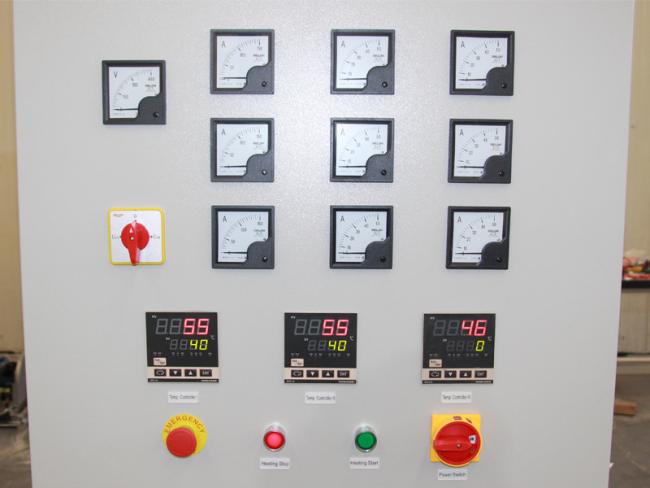

1200℃ Industrial Chamber Furnace,Electrical control panel.

• The temperature control system part adopts a split design
• The heating zone is divided into 3 temperature zones, with sensors set at the rear and bottom respectively. Each zone can be independently temperature controlled.
• Shimaden PID temperature controller,32 segments programmable,high temperature control accuracy.(Yudian, Shimaden, Euro, touch screen optional)
• Power off, over-temperature, thermocouple breaking and burnout protection
• Temperature self-tuning function
• With 485 communication interface(Optional)

Heating and cooling of 1200℃ high temperature Chamber Furnace

• Shimaden PID temperature controller,32 segments programmable,high temperature control accuracy.
• Good thermal insualtion, natural cooling, cooling down gently.
• 7" touchscreen panel is optional, heating programs can be showed timely, and downloaded

Technical Specifications

Application Notes

• Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
• Please do not inject flammable, explosive or strong corrosive gases without safety measures.

Size Comparison
