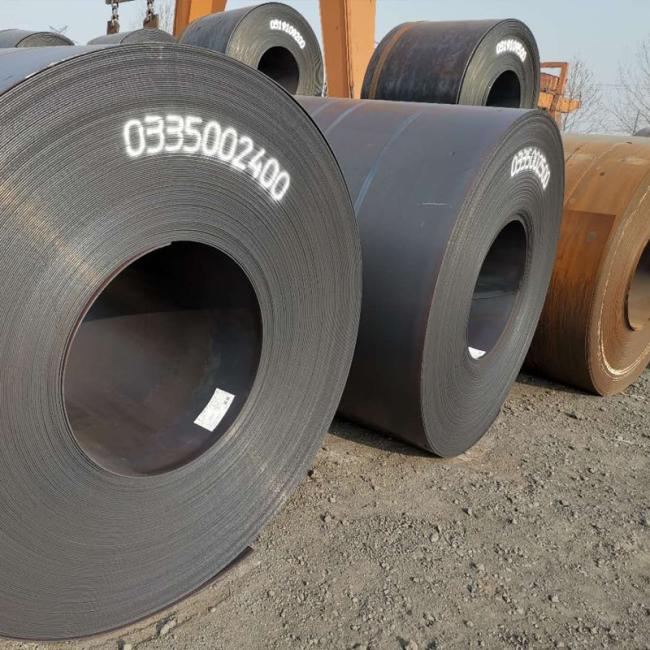

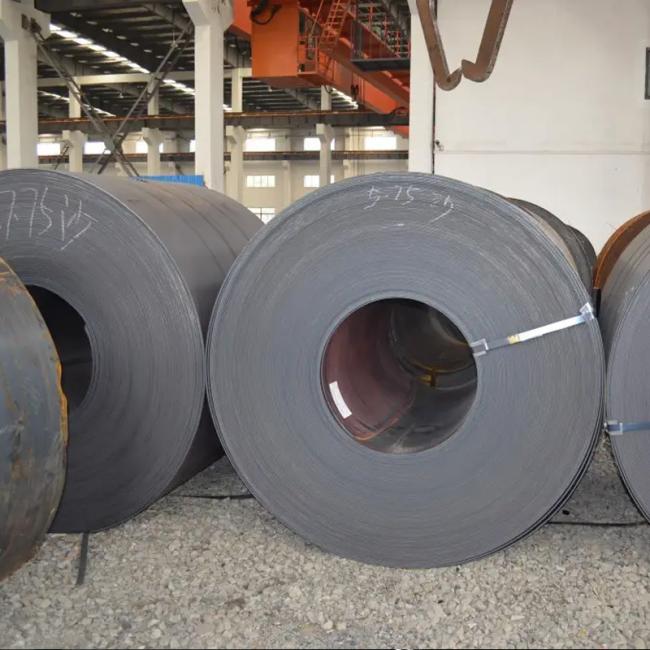

S235J0W S235J2W carbon steel HRC Hot Rolled Coil steel S235J0W 1.8958 EN 10025-5-2004
Price:
800$-1500$
MOQ:
1Ton
Delivery Time:
7-15days
Brand:
hyx
Product Description
| Grade : | S235J0W |
| Number: | 1.8958 |
| Classification: | Alloy special steel |
| Standard: | EN 10025-5: 2004 Hot rolled products of structual steels. Technical delivery conditions for structural steels with improved atmospheric corrosion resistance |
Chemical composition % of steel S235J0W (1.8958): EN 10025-5-2004
| Method of deoxidation FN = rimming steels not permitted For long products the P and S content can be 0.005% higher The steels may show a Ni content of max. 0,65 % It is permissible to exceed the specified values provided that for each increase of 0,001 % N the P max. content will be reduced by 0,005 %; the N content of the ladle analysis, however, shall not be more than 0,012 %. The max. value for nitrogen does not apply if the chemical composition shows a minimum total Al content of 0,020 % or if sufficient other N binding elements are present. The N binding elements shall be mentioned in the inspection document. |
| C | Si | Mn | P | S | Cr | N | Cu | CEV |
| max 0.13 | max 0.4 | 0.2 - 0.6 | max 0.035 | max 0.035 | 0.4 - 0.8 | max 0.009 | 0.25 - 0.55 | max 0.44 |
Mechanical properties of steel S235J0W (1.8958)
| Nominal thickness (mm): | to 3 | 3 - 100 | 100 - 150 |
| Rm - Tensile strength (MPa) | 360-510 | 360-510 | 350-500 |
| Nominal thickness (mm): | to 16 | 16 - 40 | 40 - 63 | 63 - 80 | 80 - 100 | 100 - 150 |
| ReH - Minimum yield strength (MPa) | 235 | 225 | 215 | 215 | 215 | 195 |
| KV - Impact energy (J) longitud., | -20° 27 |
0° 27 |
| Nominal thickness (mm): | 1.5 - 2 | 2 - 2.5 | 2.5 - 3 |
| A - Min. elongation Lo = 80 mm (%) | 19 | 20 | 21 |
| Nominal thickness (mm): | 3 - 40 | 40 - 63 | 63 - 100 | 100 - 150 |
| A - Min. elongation Lo = 5,65 √ So (%) | 26 | 25 | 24 | 22 |
Equivalent grades of steel S235J0W (1.8958)
Warning! Only for reference
| EU EN |
France AFNOR |
England BS |
European old EN |
Italy UNI |
| S235J0W |
E24W3
|
WR40B
|
Fe360CKI
|
Fe360CK1
|
