BH93420-I Water Level Transmitter 0.5-4.5VDC Pressure Sensor Probe For Water Tank
Hot words: water tank level sensor, China suppliers, manufacturers, vendors, uses, transmitter
BH93420-I 5V POWER 0.5-4.5VDC OUTPUT WATER LEVEL TRANSMITTER
BH93420-I Water Level Transmitter
Introduction of water level transmitter:
BH93420-I water level transmitter utilizes the HT series high-precisionPiezoresistive diffused silicon pressure sensor. It features a fully welded stainless steel housing, equipped with a hexagonal and water guide head design, and employs waterproof sealing technology. This design enables it to meet various customer installation requirements and adapt to different application scenarios.
BH93420-I water level transmitter is made from stainless steel with rigid and robust construction. The protection cap with a small hole not only protect the diaphragm, but also let the liquids contact the diaphragm freely. The exquisite sealing technology and good assembly techniques guarantee water level transmitter's outstanding quality & performance
- Fully welded design, ensuring safety and reliability
- Dual options for probe insertion and threaded installation, meeting various on-site installation needs
- Rigorously tested for high and low temperatures, suitable for a wide temperature range of applications
- Explosion-proof marking: ExiaIICT6
- PTFT, PU cables
- Various output signal options
- Compatible with 316LSS,noncorrosive liquids
- Monitoring water levels in various applications such as sewage, industrial and municipal water, water tanks, wells, rivers, seawater, lakes, etc
- Measuring fuel levels in diesel and fuel tanks
| Performance Parameters: | |
| Measurement Range | 0~10m…400mH2O |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m ); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | 1Cr18Ni9Ti,316L Stainless Steel |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.3Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |
| Outline Construction: |
|
Electrical Connection: |
|

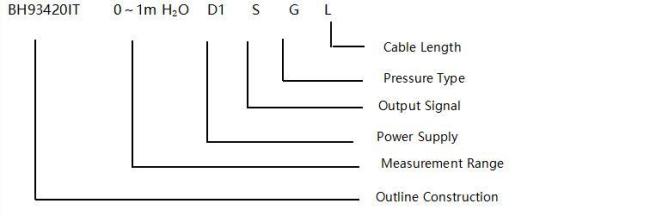

Selection Examples: |
Ordering tips:
2. The density of the measured medium should be specified.
3. For strong electromagnetic or radio frequency interference, please provide details to our company and indicate it in the order.
4. To ensure the reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure the product and power supply are reliably grounded.
Order Guide:
| BH93420 | Code | Outline Construction | ||||||
| IT | Pressure Transmitter | |||||||
| Measurement Range | 0~10m…400mH2O | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | S8 | RS485 | |||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
| Code | Material | |||||||
| 01 | 304 Stainless Steel | |||||||
| 02 | 316L Stainless Steel | |||||||
| Code | Cable Material | |||||||
| C1 | PU | |||||||
| C2 | PTFE | |||||||
