304SS Flush Diaphragm Pressure Sensor Sanitary Pressure Transmitter For Food Beverage
Price:
Negotiable
MOQ:
1
Delivery Time:
5-8 work days
Brand:
HT SENSOR
Product Description
Stainless Steel 4 20mA Sanitary Pressure Transmitter Flush Diaphragm Pressure Sensor
BP93420-IQT Pressure Transmitter
Introduction of Flush Diaphragm Pressure Sensor:
The BP93420-IQT is equipped with a φ50.4mm large diaphragm high-temperature transmitter signal processing circuit, which is installed in a stainless steel housing to convert the sensor signal into a standard output signal. This pressure transducer is primarily used in high sanitary conditions to ensure reliable and accurate pressure measurement in a healthy environment.
1.Various pressure interface options
2.Designed for hygienic applications to prevent medium scaling
3.High accuracy with a fully stainless steel structure
4.Easy to clean.
Applications of Flush Diaphragm Pressure Sensor:
1.Suitable for measuring non-corrosive gases and liquids with 316L
2.Ideal for environmental protection and chemical industries
3.Used in the marine and aviation industries
4.Well-suited for use in the medical, biopharmaceutical, and food hygiene industries.
| Performance Parameters | |
| Measurement Range | -100kPa…0kPa ~ 35kPa…3.5MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | SS304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.5kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |

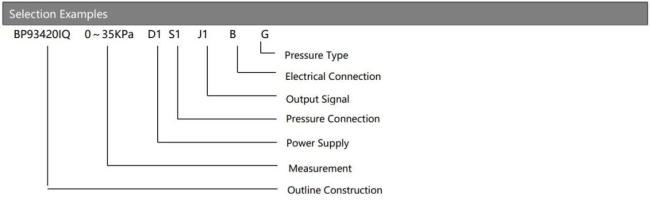

| Order Guide | ||||||||
| BP93420XX | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| IB | General Pressure Transmitter | IX | Display Pressure Transmitter | |||||
| IE | Shock-resistant Aviation Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter | |||||
| IF | Moisture-proof Pressure Transmitter | IIE/IIIE | General/Display Pressure Transmitter | |||||
| IN | Air Conditioning Dedicated Pressure Transmitter | IC | High-temperature Pressure Transmitter | |||||
| IQ/IQT | Large Diaphragm /High-temperature Pressure Transmitter | |||||||
| Measurement Range | -100kPa…0kPa ~ 35kPa…3.5MPa | |||||||
| (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | |||||||
| Code | Electrical Connection | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Sealed Cable Output | |||||||
| B4 | 2088 Industrial Casing | |||||||
| B5 | 2088 Industrial Casing with Display | |||||||
| B6 | Other | |||||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
| Ordering tips |
1.Prior to product selection, please ensure that the measured medium is compatible with the product's contact parts.
2.Please be aware that explosion-proof products do not include digital display heads when placing an order.
3.To ensure reliable product operation, it is recommended to install on-site lightning protection devices and ensure proper grounding of the product and power supply.
4.The Fluoro rubber O-ring has a rated working temperature range of -20ºC to 250ºC. For operating temperatures below -20ºC, an EPDM O-ring seal should be selected.
5.The default cable length is 1.5m and is available in three materials. If no specific material is specified, polyethylene cable will be provided. If a different cable material is required, please indicate it in the order.
6.For special requirements such as strong vibration, sudden impact force, or electromagnetic/radio frequency interference, please inform our company and specify them in the order.
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
2.Please be aware that explosion-proof products do not include digital display heads when placing an order.
3.To ensure reliable product operation, it is recommended to install on-site lightning protection devices and ensure proper grounding of the product and power supply.
4.The Fluoro rubber O-ring has a rated working temperature range of -20ºC to 250ºC. For operating temperatures below -20ºC, an EPDM O-ring seal should be selected.
5.The default cable length is 1.5m and is available in three materials. If no specific material is specified, polyethylene cable will be provided. If a different cable material is required, please indicate it in the order.
6.For special requirements such as strong vibration, sudden impact force, or electromagnetic/radio frequency interference, please inform our company and specify them in the order.
| Q&A |
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
