BPZ2008 Differential Pressure Transmitter Gauge Water Pressure Transmitter Sensor
Price:
Negotiable
MOQ:
1
Delivery Time:
5-8 work days
Brand:
HT SENSOR
Product Description
BPZ2008 Differential Pressure Transmitter Gauge Water Pressure Transmitter Sensor
Product Description
BPZ2008 Differential Pressure Transmitter gauge
Introduction:
The BPZ2008 digital differential pressure gauge is a moisture-proof gauge with media isolation, designed for measuring non-corrosive gases and liquids. It utilizes a piezoresistive diffused silicon sensor and integrated circuit design, housed in a rust-resistant iron casing. The gauge features a 5-digit LCD display and offers high reliability and stability.
- 5-digit LCD display
- Powered by a 9V battery
- Selectable units of measurement: bar, psi, kg/cm2, KPa, MPa
- Peak hold and continuous reading functions
Differential pressure measurement for various gases and liquids in industries such as petroleum, chemical, power, and hydrology for pipeline applications.
| Performance Parameters | |
| Measurement Range | 0-10KPa...~4MPa |
| Pressure Type | Differential Pressure |
| Single-side Overload | ≤3 times of the rated range |
| Static pressure | The minimum value between 5 times the rated range or 7 MPa |
| Power Supply | 9V alkaline battery. |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | 0.1%FS |
| Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa) |
| Zero Point Temperature Drift | ±1%F.S/ºC(≤100KPa) ±2%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±1%F.S/ºC(≤100KPa) ±2%F.S/ºC(>100KPa) |
| Compensation Temperature | 0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC |
| Operating Temperature | -1ºC~49ºC |
| Storage Temperature | -40ºC~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | ABS,1Cr18Ni9Ti |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Protection Rating | IP65 |
| Weight | ~0.45kg |

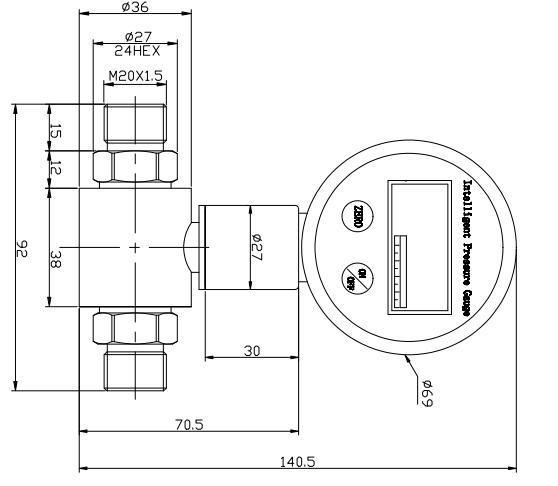

| Outline Construction | |
| Dimension |  |
| Ordering tips |
- When selecting the product, please ensure that the measured medium is compatible with the product's contacting parts.
- To ensure reliable operation, it is recommended to install a three-valve manifold between the measurement point and the transmitter, ensuring a slow and uniform pressure application to the positive and negative pressure chambers of the transmitter.
- . During installation, it is advisable to position the pressure interfaces at both ends horizontally to minimize the impact of the installation location on the product.
- . The 9V alkaline battery is not included in the product package. Please purchase it separately.
- For special requirements such as strong vibration, instant impact force, strong electromagnetic interference, or radio frequency interference, please inform our company and specify these requirements in the order.
| Q&A |
1.Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.2.Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service3.Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4.Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.5.Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6.Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.Similar Products
