HT26V 10V Piezoresistive Silicon Pressure Sensor Diaphragm Sensor Core OEM
Price:
Negotiable
MOQ:
1
Delivery Time:
5-8 work days
Brand:
HT SENSOR
Product Description

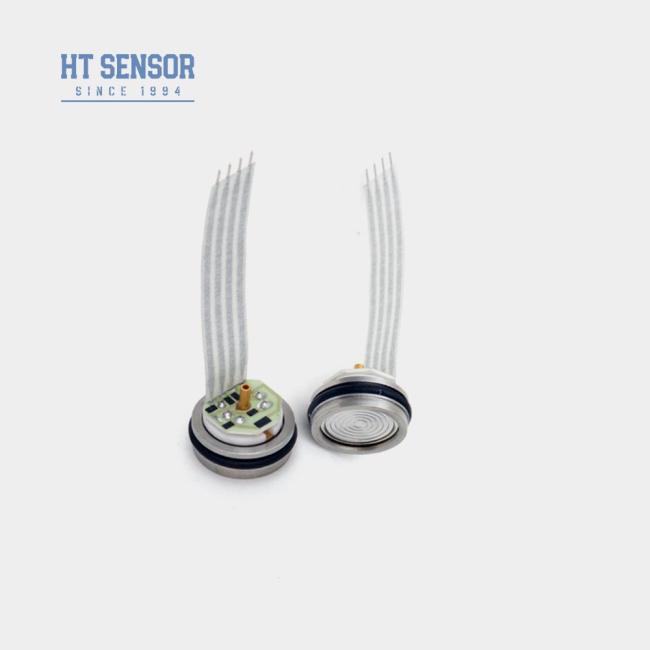

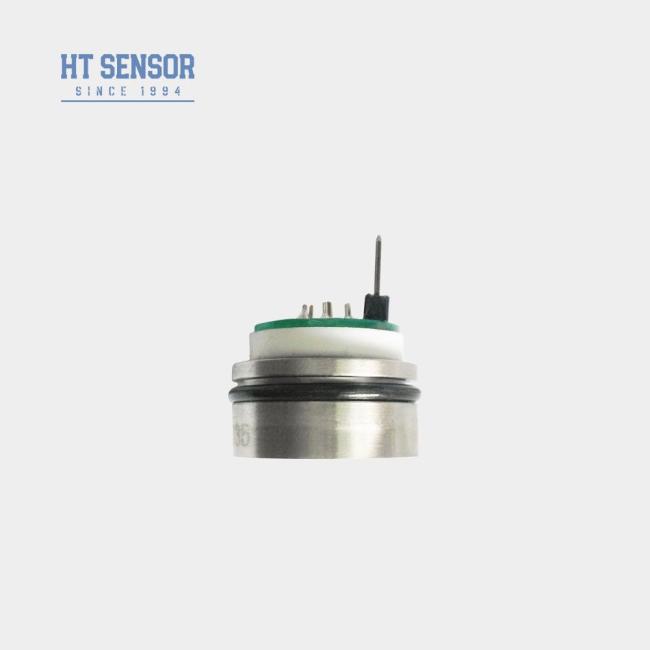

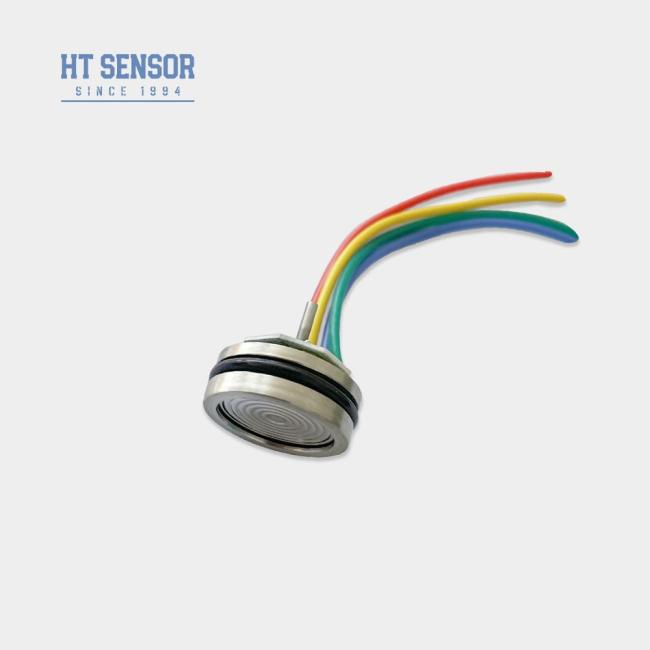

HT26V 10V Piezoresistive Silicon Pressure Sensor Diaphragm Sensor OEM
HT26V Silicon Piezoresistive Pressure Sensor
Introduction of silicon pressure sensor:
HT26V silicon pressure sensor is a kind of piezoresistive type, its core is the spread of the highly stable silicon crystal components.The pressure difference of the measured medium is transferred to the silicon diaphragm through a 316L isolation diaphragm and sealed silicone oil.Custom structures are made from a conventional diameter of 19mm and are highly customized, with stainless steel parts available as low as 7mm.5-10V constant voltage power supply, regular output.HT26V pressure sensor is equipped with o-rings, used for pressure seal, convenient installation.
- Constant voltage power supply and output standard signals.
- High reliability, good stability.
- The height is 7mm, and various structures can be customized.
- Suitable for petroleum, chemical, metallurgy, electric power, hydrology and other industrial process site.
- Used in ship and aviation industry.
- Suitable for hydraulic and pneumatic control system.
- Used for process control applications.
- Power Supply: ≤10VDC
- Common Mode Voltage Output: 50% of the input (typical)
- Input Impedance:4KΩ~20KΩ
- Output Impedance:2.5KΩ~6KΩ
- Electrical Connection:100mm high-temperature wire,ribbon cable and pin connectors.
| Performance Parameters of silicon pressure sensor: | |||||
| Measurement Range | Gauge(G) | 10KPa,20KPa,35KPa,100KPa,200KPa,350KPa,1000KPa,2000KPa | |||
| Absolute(A) | 100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA | ||||
| Sealed(S) | 3500KPaS,7MPaS,10MPaS | ||||
| Typ | Max | Unit | |||
| NonLinearity | ±0.15 | ±0.3 | %F.S | ||
| Repeatability | 0.05 | 0.1 | %F.S | ||
| Hysteresis | 0.05 | 0.1 | %F.S | ||
| Zero Offset Output | 0±1 | 0±2 | mV | ||
| Full Scale Output | ≤20KPa | 50±1 | 50±2 | mV | |
| ≥35kPa | 100±1 | 100±2 | mV | ||
| Zero Offset Temp. Drift | ≤20KPa | ±1 | ±2.5 | %F.S | |
| ≥35kPa | ±0.8 | ±1.5 | %F.S | ||
| Full Scale Temp. Drift | ≤20KPa | ±1 | ±2 | %F.S | |
| ≥35kPa | ±0.8 | ±1.5 | %F.S | ||
| Compensated Temp. | ≤20KPa | 0~50 | ºC | ||
| ≥35kPa | 0~70 | ºC | |||
| Operating Temperature | -20~80 | ºC | |||
| Storage Temperature | -40~125 | ºC | |||
| Allowable Overload | 3 times the full scale | ||||
| Burst Pressure | 5X the full scale | ||||
| Long-term Stability | 0.2 % | F.S/Year | |||
| Diaphragm Material | 316L | ||||
| Insulation Resistance | ≥200MΩ 100VDC | ||||
| Vibration | No change under conditions of 10gRMS, 20Hz to 2000Hz | ||||
| Shock | 100g,11ms | ||||
| Response Time | ≤1ms | ||||
| O-ring Seal | Nitrile rubber or Fluoro rubber | ||||
| Filling Medium | Silicon Oil | ||||
| Weight | ~25g | ||||
| The parameters are tested under the following conditions: Constant voltage of 10V and ambient temperature of 25ºC | |||||

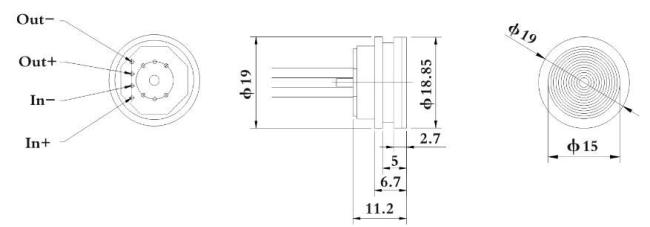

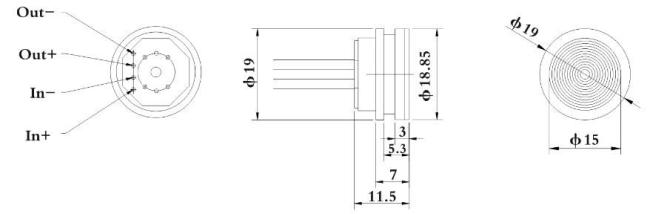

| Outline Construction | |
| Pressure Tube <3.5MPaS |
 |
| Normal ≥3.5MPaS <40MPaS |
 |

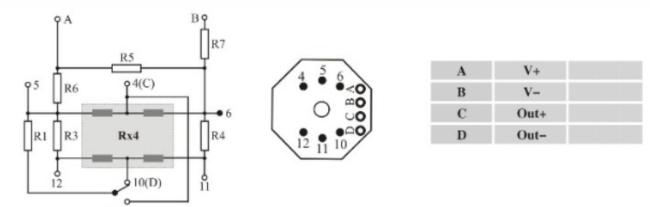

| Electrical connection and compensation |
 |
| Selection Examples |
| Ordering tips |
1. In the assembly, attention should be paid to the coordination of the core size and the transmitter housing to achieve the necessary tightness.
2. During the assembly of the shell, ensure that it is vertically aligned and apply pressure evenly to avoid getting stuck or damaging the compensation plate.
3. If the medium under test is not compatible with the core diaphragm and housing material (316L), special instructions should be provided when placing the order.
4. Avoid pressing the sensor diaphragm with your hands or sharp objects to avoid deformation or puncture of the diaphragm and damage to the core.
5. Keep the pressure port of the gauge pressure core open to the atmosphere to prevent water, water vapor or corrosive media into the negative pressure chamber of the gauge pressure core.
6. If there is any change in the pin, please refer to the label you actually carry.
7. Customizable, please contact the business manager to negotiate.
| FQA |
1.Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.2.Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service3.Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4.Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.5.Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6.Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
