The HT12 silicon piezoresistive pressure sensor is a highly stable diffusion silicon element packaged using advanced TO8 packaging technology. The non-oil-filled core eliminates profile errors and significantly enhances the stability of the small range, making it particularly effective for measuring dry non-corrosive gas pressure.
Product Features of silicon pressure sensor:- The measurement range is wide from 0 to 10KPa to 2Mpa.
- High reliability, good stability.
- TO8 encapsulation technology.
- Aerospace applications.
Applications of silicon pressure sensor:
- Dry, non-corrosive gas pressure was measured.
- The pneumatic control systemMedical applications of biomedical engineering.
- Hvac (HVAC) controls.
- Aerospace aviation related to the purpose of experiment.
- Power Supply: ≤2mA DC (Typical 1.5mA DC)
- Input Impedance:3KΩ~6KΩ
- Output Impedance:2.5KΩ~6KΩ
- Electrical Connection:Gold-plated Kovar pins or 100mm high-temperature wires
| Performance Parameters of silicon pressure sensor: | ||||||
| Measurement Range | Gauge(G) | 10KPa,20KPa,35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa | ||||
| Absolute(A) | 100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA | |||||
| Range with TO8 | Min:7kpa Max:200kpa | |||||
| Typ | Max | Unit | ||||
| Linearity | ±0.15 | ±0.3 | %F.S | |||
| Repeatability | 0.05 | 0.1 | %F.S | |||
| Hysteresis | 0.05 | 0.1 | %F.S | |||
| Zero Offset Output | 0±1 | 0±2 | mV | |||
| Full Scale Output | ≤20KPa | 50±10 | 50±30 | mV | ||
| ≥35kPa | 100±10 | 100±30 | mV | |||
| Zero Offset Temp. Drift | ≤20KPa | ±1 | ±2 | %F.S | ||
| ≥35kPa | ±0.5 | ±1 | %F.S | |||
| Full Scale Temp. Drift | ≤20KPa | ±1 | ±2 | %F.S | ||
| ≥35kPa | ±0.5 | ±1 | %F.S | |||
| Compensated Temp. | ≤20KPa | 0~50 | ºC | |||
| ≥35kPa | 0~70 | ºC | ||||
| Operating Temperature | -20~80 | ºC | ||||
| Storage Temperature | -40~125 | ºC | ||||
| Allowable Overload | Take the smaller value between 3 times the full scale or 4MPa | |||||
| Burst Pressure | 5X the full scale | |||||
| Long-term Stability | 0.2 % | F.S/Year | ||||
| Diaphragm Material | 316L | |||||
| Insulation Resistance | ≥200MΩ 100VDC | |||||
| Vibration | No change under conditions of 10gRMS, 20Hz to 2000Hz | |||||
| Shock | 100g,11ms | |||||
| Response Time | ≤1ms | |||||
| Weight | ~12.5g | |||||
| The parameters are tested under the following conditions: Constant current of 1.5mA and ambient temperature of 25°C | ||||||
| Outline Construction | |
| Dimension |  |

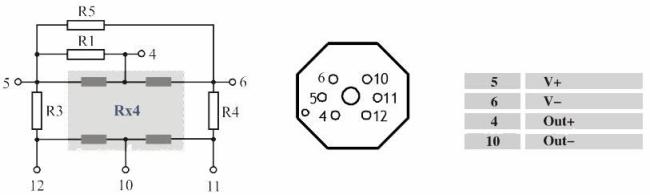

| Electrical connection and compensation |
|
| Ordering tips |
1. Pay attention to the matching of the core size and the transmitter housing during assembly to achieve the required air tightness.
2. During assembly, ensure the vertical alignment and apply even pressure to prevent jamming or damaging the compensation plate.
3. Keep the gauge pressure core air duct connected to the atmosphere and prevent water, water vapor, or corrosive media from entering the positive and negative pressure chambers of the core.
4.If there are any changes in the pin lead, refer to the label attached to the core for accurate identification.
