4-20mA Sewage Level Sensor IP68 316L Stainless Steel 0.5% Accuracy
Price:
200
MOQ:
1
Delivery Time:
Negotiable
Brand:
HT
Product Description
Sewage Liquid Level Transmitter
Product Overview
The BH-WS Sewage Level Sensor is a high-performance liquid level transmitter designed for demanding industrial applications. Utilizing a precision piezoresistive silicon pressure sensor with full 316L stainless steel construction, this robust device delivers reliable measurements in contaminated liquid environments.
Key Features
- Engineered for harsh industrial environments
- Explosion-proof certification: ExiaIICT6
- High protection rating: IP68
- Full 316L stainless steel construction for superior corrosion resistance
- Exceptional measurement accuracy and long-term stability
Applications
- Compatible with 316L stainless steel and non-corrosive liquids
- Fuel level monitoring in diesel tanks, fuel storage containers
- Liquid level measurement in polluted environments including:
- Sludge tanks and clarifiers
- Digesters and chemical storage tanks
- Sewage pits and water reservoirs
- Alum tanks and lime slurry systems
Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement Range | 0~10m...400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload Capacity | ≤ 2X rated range |
| Accuracy @ 25°C | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Operating Temperature | -20~100°C |
| Housing Material | 316L Stainless Steel |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| Weight | ~2.1Kg (without cable) |
Electrical Specifications
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V, 0/1~10V, 0.5~4.5V | 5VDC |

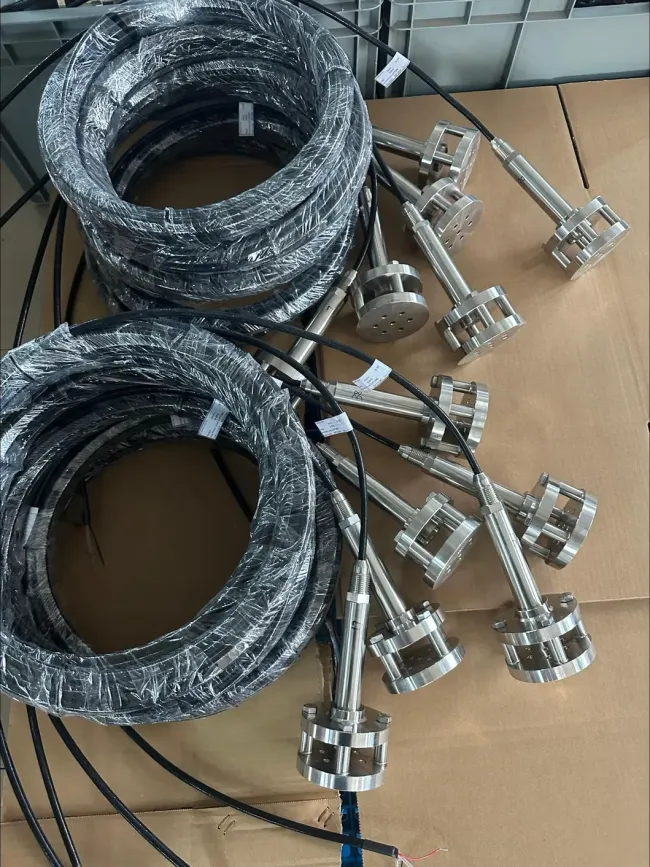

Product Images
Ordering Information
Please ensure compatibility with your measured medium and specify density when ordering.
- For strong electromagnetic interference environments, please provide details
- Recommended to install lightning protection devices and ensure proper grounding
Order Guide
| Code | Description |
|---|---|
| BH-WS | Pressure Transmitter |
| D1 | 24VDC Power Supply |
| S1 | 4~20mADC Output |
| G | Gauge Pressure Type |
| C1 | PE Cable Material |
Frequently Asked Questions
Q: What are the features of your pressure sensor transmitters?
A: Our transmitters offer high precision, durability, and excellent performance in harsh conditions. Custom configurations are available.
Q: Can I customize special specifications?
A: Yes, our engineering team provides OEM/ODM services to meet specific application requirements.
Q: What is your production capacity?
A: We can produce 30,000 units monthly. Contact our sales team for large order planning.
Q: What's the typical delivery period?
A: Standard models ship in 5-8 business days. Custom products may vary.
Q: What is the warranty and after-sales service?
A: 24-month warranty with 24-hour response time for technical support, including remote assistance.
