HTsensor BP156 Industrial Pressure Sensor for High-Performance Air Compressors and Refrigeration Equipment
Price:
20
MOQ:
1
Delivery Time:
Negotiable
Brand:
HT
Product Description
BP156 Pressure Transmitter
The BP156 pressure transmitter is a cost-effective solution designed specifically for air compressors and refrigeration equipment. Featuring advanced technology and a high-performance transmitter circuit developed in-house, this product offers compact size, superior moisture resistance, and excellent anti-electromagnetic interference capabilities.
Product Features

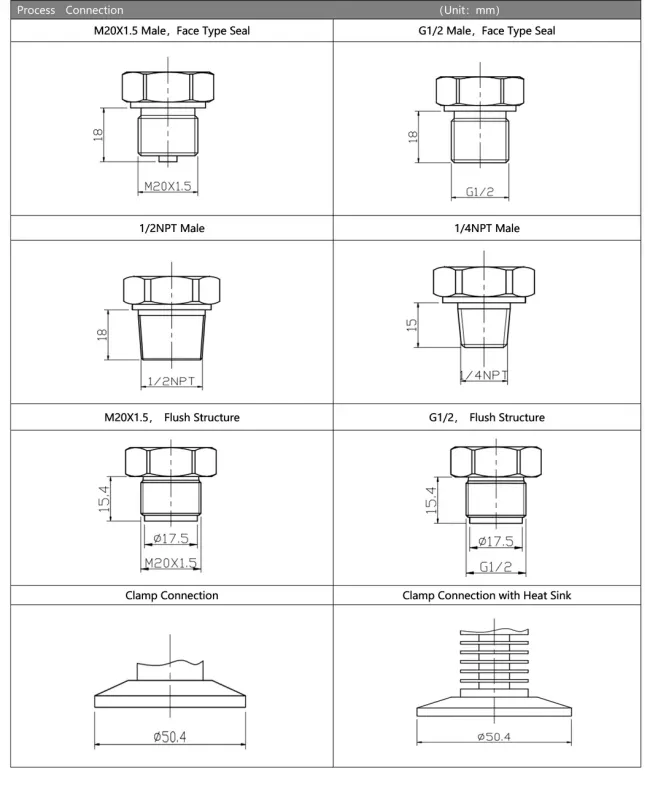

- Wide measuring range with stainless steel structure and diverse pressure interface options
- Compact and lightweight design for easy integration
- Adjustable zero and full-scale settings
- High precision measurement with all stainless steel construction
Applications
- Pressure measurement of non-corrosive gases and liquids with 316L stainless steel
- Marine and aviation industry applications
- Industrial processes including petroleum, chemical, metallurgy, power generation, and hydrology
- Hydraulic and pneumatic control systems
Performance Parameters
| Measurement Range | 0kPa ~ 10kPa…5MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability & Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.05kg |
Output Signal Specifications
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0/1~10V 0.5~4.5V |
5VDC |
Ordering Tips
- Ensure the measured medium is compatible with the product's contact parts
- Note that explosion-proof type products don't include digital display heads
- For transmitters with LCD/LED display, power supply should not be below 20VDC
- Install lightning protection devices and ensure proper grounding for reliable operation
- Fluoro rubber O-ring rated for -20ºC to 250ºC; choose EPDM for temperatures below -20ºC
- Default cable length is 1.5m (polyethylene); specify alternative materials if needed
- Inform us about special requirements like vibration, impact, or electromagnetic interference
Order Guide
| BP15X | Analog Pressure Transmitter | |
| Code | Outline Construction |
| 5 | Packard plug |
| 6 | Sealed Direct Output Cable 1.5 meters |
| 7 | Mini Hirschmann Connector |
| 8 | Large Hirschmann Connector |
| Measurement Range: 0kPa ~ 10kPa…5MPa | |
| (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range |
Frequently Asked Questions
Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month. Contact our sales team in advance for large orders.
Q: What's the typical delivery period?
A: 5~8 working days for standard models. Customized products may vary.
