HTsensor China Factory OEM Temperature Sensor with 4–20mA Output Mini Temperature Indicator Transmitter
Price:
30
MOQ:
1
Delivery Time:
Negotiable
Brand:
HT SENSOR
Product Description
BT93420 Temperature Indicator Transmitter
The BT93420 temperature indicator transmitter utilizes a dedicated temperature module that performs linear correction on various thermocouples and resistance temperature detectors (RTDs), outputting standard analog signals. This device offers high accuracy, excellent stability, strong anti-interference capability, water resistance, explosion-proof design, high temperature resistance, and shock resistance. It integrates seamlessly with control systems for automated temperature control and monitoring.
Product Features
- Full stainless steel structure with excellent corrosion resistance
- Available with analog output or digital output options
- Multiple display options: terminal box, 2088 LCD, or LED display
Applications
- Temperature monitoring for generators, transformers, cables, and other critical equipment
- Industrial automation systems
- Temperature measurement of gases and liquids in pipelines across petroleum, chemical, power, and hydrology industries
Performance Parameters
| Measurement Range | -55~1200ºC |
|---|---|
| Accuracy @ 25ºC | ±0.5% (Typ.) ±1% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Operating Temperature | -30~80ºC |
| Storage Temperature | -40~100ºC |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Maximum Temperature | 120% of the rated temperature range |
| Protection Rating | IP65 |
| Weight | ~0.5Kg |
Outline Construction

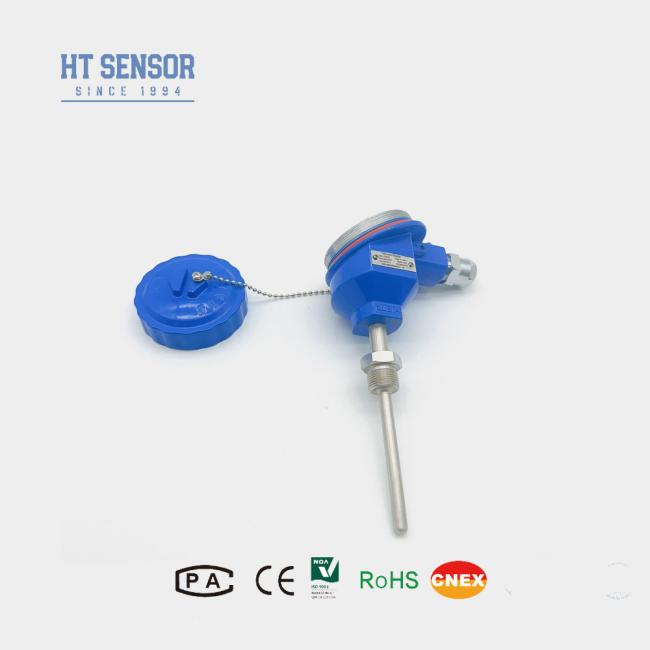

Terminal Box
BT93420 Temperature Indicator Transmitter
Outline Construction Codes
| I | Blue Terminal Box |
| II | 2088 housing |
| III | 2088+LED |
| IIIA | 3051+LED |
Power Supply Codes
| D1 | 24VDC |
| D2 | Other |
Output Signal Codes
| S1 | 4~20mADC |
| S2 | 1~5VDC |
| S3 | 0~5VDC |
| S4 | 0~10mADC |
| S5 | 0~20mADC |
| S6 | 0~10VDC |
Pressure Connection Codes
| J1 | M27X2 Male |
| J2 | Other |
Insertion Depth
| L | Actual insertion depth |
Company
Frequently Asked Questions
What are the features of your pressure sensor transmitters?
High precision, durability, and excellent performance. Customization available.
Can I customize special specifications?
Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
What is your production capacity?
Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
What's the typical delivery period?
5~8 working days for standard models. Customized products may vary.
How are the products priced? Any discounts?
Competitive pricing with discounts for bulk orders or long-term partners.
What is the warranty of your products? And after-sales service?
Our warranty time is 24 months after shipment, and our after-sales will respond to your questions within 24 hours. Remote instruction by PC network is always available.
