For Air Conditioner Small Size Bp156 Pressure Transmitter With Ht Sensor
Price:
15
MOQ:
1
Delivery Time:
Negotiable
Brand:
HT SENSOR
Product Description
BP156 Pressure Transmitter for Air Conditioners
The BP156 pressure transmitter is a cost-effective solution specifically designed for air compressors and refrigeration equipment. Incorporating advanced technology and our proprietary high-performance transmitter circuit, this compact device offers exceptional moisture resistance and electromagnetic interference protection.
Product Features
- Wide measuring range with stainless steel construction
- Multiple pressure interface configurations available
- Compact and lightweight design for easy installation
- Adjustable zero and full-scale calibration
- High precision performance with all-stainless steel structure
Applications
- Pressure measurement of non-corrosive gases and liquids using 316L stainless steel
- Marine and aviation industry applications
- Industrial processes including petroleum, chemical, metallurgy, power generation, and hydrology
- Hydraulic and pneumatic control systems
Performance Parameters
| Measurement Range | 0kPa ~ 10kPa…40MPa |
|---|---|
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability & Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10MPa, customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.25kg |

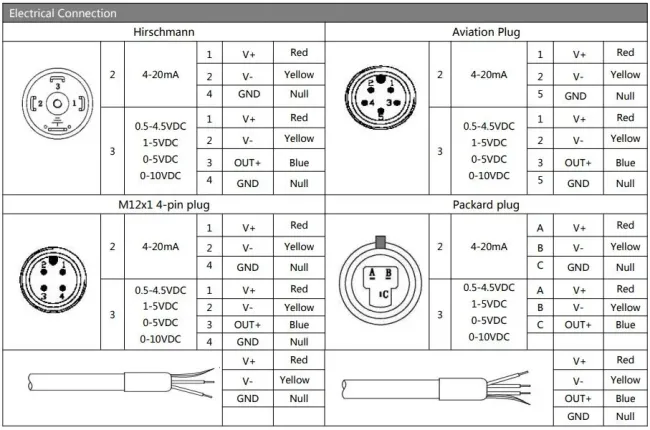

Output Signal Specifications
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0/1~10V 0.5~4.5V |
5VDC |
Selection Examples

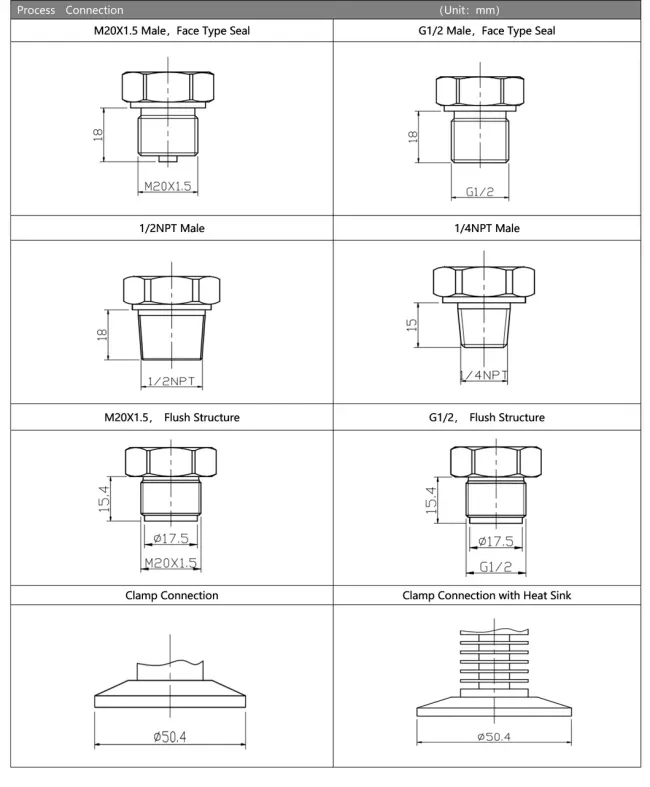

Ordering Information
Important Tips
- Ensure compatibility between the measured medium and product contact parts
- Explosion-proof models do not include digital display heads
- Transmitters with LCD/LED display require power supply ≥20VDC
- Install lightning protection devices and ensure proper grounding
- For temperatures below -20ºC, specify EPDM O-ring seal
- Default cable length is 1.5m (polyethylene material)
- Specify special requirements for vibration, impact, or electromagnetic interference
Order Guide
Frequently Asked Questions
What are the features of your pressure sensor transmitters?
High precision, durability, and excellent performance. Customization available.
Can I customize special specifications?
Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
What is your production capacity?
Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, capable of meeting large-scale orders. Contact our sales team in advance for scheduling.
What's the typical delivery period?
5-8 working days for standard models. Customized products may vary.
How are the products priced? Any discounts?
Competitive pricing with discounts for bulk orders or long-term partners.
What is the warranty of your products? And after-sales service?
24-month warranty after shipment. After-sales support responds within 24 hours with remote PC network assistance available.
