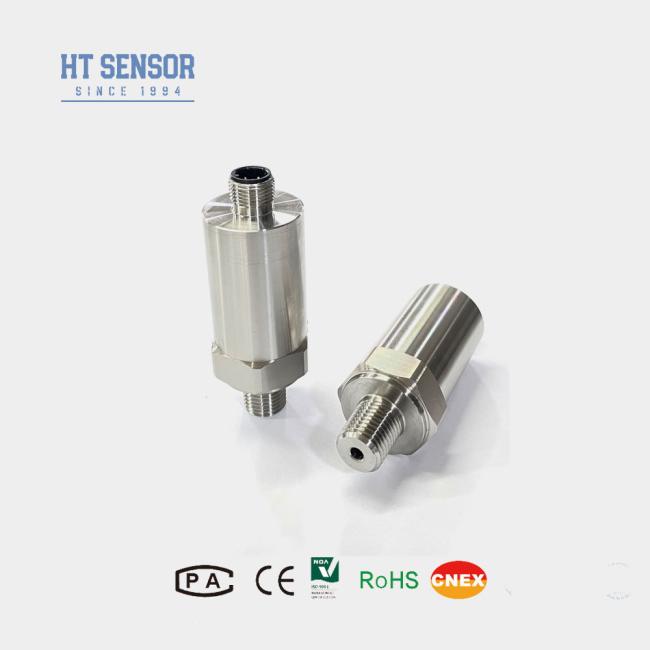

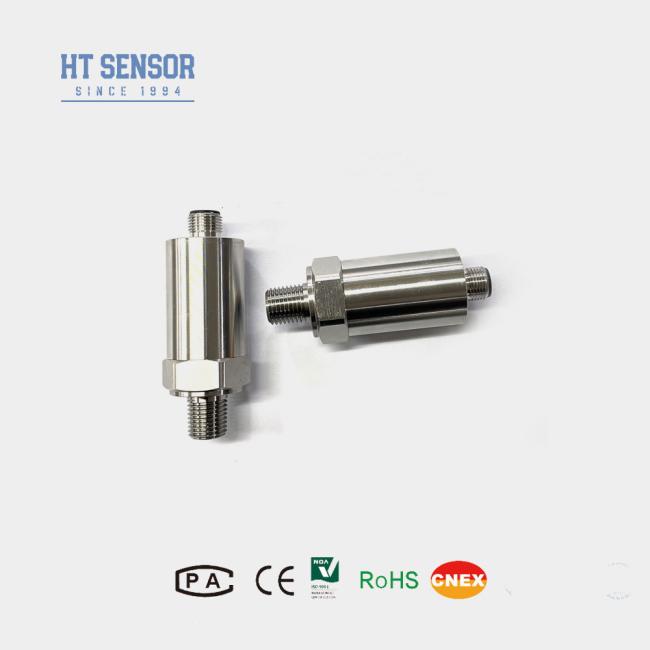

Hengtong BP156 Small Size M12 Pressure Sensor Oil Water Pressure Transmitter

Price Negotiable

Price: 20

MOQ: 1

Delivery Time: Negotiable

Brand: HT SENSOR

Product Description

BP156 Small Size M12 Pressure Transmitter Sensor

Product Overview

The BP156 pressure transmitter utilizes HT series silicon pressure-resistant isolation membrane oil-filled core technology as the signal measuring element. The signal processing circuit is housed within a stainless steel enclosure, converting sensor signals into standard output signals. Rigorous testing and aging screening of components, semi-finished products, and finished products ensure stable and reliable performance.

Key Features

Wide measuring range with stainless steel construction
Multiple pressure interface configurations available
IP65 protection rating with stainless steel housing
Zero and full-scale adjustment capability
High precision measurement accuracy

Applications

Pressure measurement of non-corrosive gases and liquids using 316L stainless steel
Marine and aviation industry applications
Industrial process monitoring in petroleum, chemical, metallurgy, power generation, and hydrology
Hydraulic and pneumatic control systems

Performance Parameters

Measurement Range	0kPa ~ 10kPa…5MPa
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload	≤ 1.5 times of the rated range
Accuracy @ 25ºC	±0.25% (Typ.) ±0.5% (Max.)
Repeatability & Hysteresis	0.02%F.S(Typ.) 0.05%F.S(Max.)
Long-Term Stability	±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.)
Zero Point Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response	2.4Khz
Compensation Temperature	0-70ºC(≤10mpa,customizable)
Operating Temperature	-20ºC~80ºC
Storage Temperature	-40ºC~120ºC
Vibration	10g,55Hz ~ 2kHz
Housing Material	304,316L
Diaphragm Material	316L
Insulation Resistance	100MΩ 100VDC
Explosion-proof Rating	Ex ia IIC T6 Ga
Protection Rating	IP66
Weight	~0.25kg

Output Signal Specifications

Output Signal	Supply Voltage	Output Type
4~20mA	12~30VDC	2/3/4 wire
0~10/20mA		3 wire
0/1~5V 0/1~10V 0.5~4.5V	5VDC

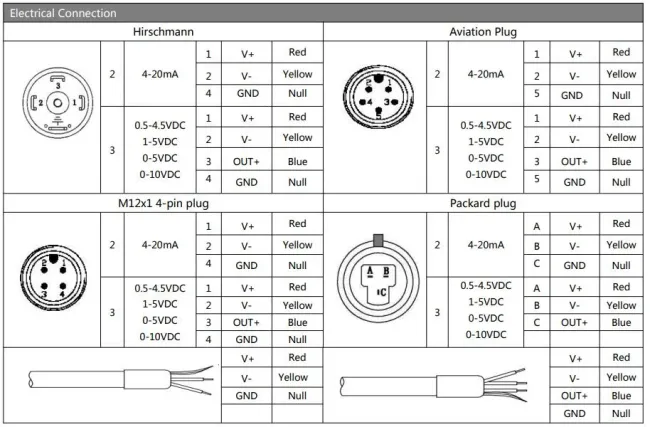

BP156 Pressure Transmitter technical specifications label

Selection Examples

BP156 Pressure Transmitter selection guide and configuration examples

Ordering Guidelines

Ensure the measured medium is compatible with the product's contact materials
Explosion-proof models do not include digital display heads
For transmitters with LCD or LED display heads, power supply should not be lower than 20VDC
Install lightning protection devices and ensure proper grounding for reliable operation
For operating temperatures below -20ºC, select EPDM O-ring seals instead of standard Fluoro rubber
Default cable length is 1.5m with polyethylene material - specify alternatives when ordering
Notify us of special requirements including strong vibration, impact forces, or electromagnetic interference

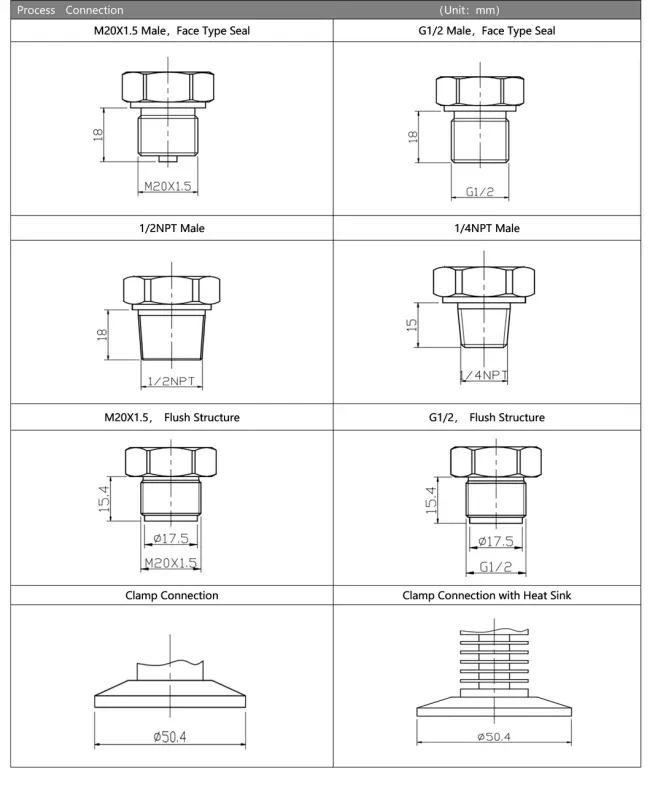

BP156 Pressure Transmitter ordering guide and configuration options

Order Configuration Guide

BP15X	Analog Pressure Transmitter
Outline Construction	5: Packard plug \| 6: Sealed Direct Output Cable 1.5 meters \| 7: Mini Hirschmann Connector \| 8: Large Hirschmann Connector
Measurement Range	0kPa ~ 10kPa…5MPa (0-X)Kpa or MPa where X indicates actual measuring range
Power Supply	D1: 24VDC \| D2: 5VDC \| D3: Other
Output Signal	S1: 4~20mADC \| S2: 1~5VDC \| S3: 0~5VDC \| S4: 0~10mADC \| S5: 0~20mADC \| S6: 0~10VDC \| S7: 0.5~4.5VDC
Pressure Connection	J1: M20×1.5 \| J2: G1/2 \| J3: G1/4 \| J4: 7/16-20UNF \| J5: Others(¢50.4 Flange)
Electrical Connection	B1: Hirschmann \| B2: PG7 \| B3: Cable Sealed Outlet 1.5 meters \| B4: Other
Pressure Type	G: Gauge Pressure \| A: Absolute Pressure \| S: Sealed Reference Pressure

Frequently Asked Questions

What are the features of your pressure sensor transmitters?
High precision, durability, and excellent performance. Customization available.

Can I customize special specifications?
Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.

What is your production capacity?
Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.

What's the typical delivery period?
5-8 working days for standard models. Customized products may vary.

How are the products priced? Any discounts?
Competitive pricing with discounts for bulk orders or long-term partners.

What is the warranty of your products? And after-sales service?
Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
