Industrial Pressure Sensor BP156 Pressure Transmitter with M12*1 G1/4 Level Sensor
Price:
15
MOQ:
1
Delivery Time:
Negotiable
Brand:
HT SENSOR
Product Description
BP156 Pressure Transmitter
The BP156 pressure transmitter utilizes the HT series silicon pressure-resistant isolation membrane oil-filled core as the signal measuring element. The signal processing circuit is located inside a stainless steel housing, converting the sensor signal into a standard output signal. The product has undergone rigorous testing and aging screening of components, semi-finished products, and finished products to ensure stable and reliable performance.
Product Features
- Wide measuring range with stainless steel structure and diverse pressure interface forms
- IP65 protection rating stainless steel construction
- Zero and full-scale adjustable calibration
- High precision with all stainless steel structure
Applications
- Pressure measurement of non-corrosive gases and liquids with 316L stainless steel
- Marine and aviation industry applications
- Industrial on-site processes including petroleum, chemical, metallurgy, power generation, and hydrology
- Hydraulic and pneumatic control systems
Performance Parameters
| Measurement Range | 0kPa ~ 10kPa…40MPa |
|---|---|
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability & Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10MPa, customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP65 |
| Weight | ~0.25kg |
Output Signal Specifications
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA 0~10/20mA | 12~30VDC | 2/3/4 wire |
| 0/1~5V 0/1~10V 0.5~4.5V | 5VDC | 3 wire |
Selection Examples
Ordering Tips
- Ensure the measured medium is compatible with the product's contact parts
- Explosion-proof type products do not include digital display heads
- For transmitters with LCD or LED display heads, power supply should not be lower than 20VDC
- Install lightning protection devices and ensure proper grounding for reliable operation
- For operating temperatures below -20ºC, select EPDM O-ring seal instead of Fluoro rubber
- Default cable length is 1.5m (polyethylene material) - specify alternatives in order
- Notify us of special requirements including strong vibration, impact force, or electromagnetic interference
Order Guide
BP15X | Analog Pressure Transmitter
| Code | Outline Construction |
|---|---|
| 5 | Packard plug |
| 6 | Sealed Direct Output Cable 1.5 meters |
| 7 | Mini Hirschmann Connector |
| 8 | Large Hirschmann Connector |
| Code | Power Supply |
|---|---|
| D1 | 24VDC |
| D2 | 5VDC |
| D3 | Other |
| Code | Output Signal |
|---|---|
| S1 | 4~20mADC |
| S2 | 1~5VDC |
| S3 | 0~5VDC |
| S4 | 0~10mADC |
| S5 | 0~20mADC |
| S6 | 0~10VDC |
| S7 | 0.5~4.5VDC |

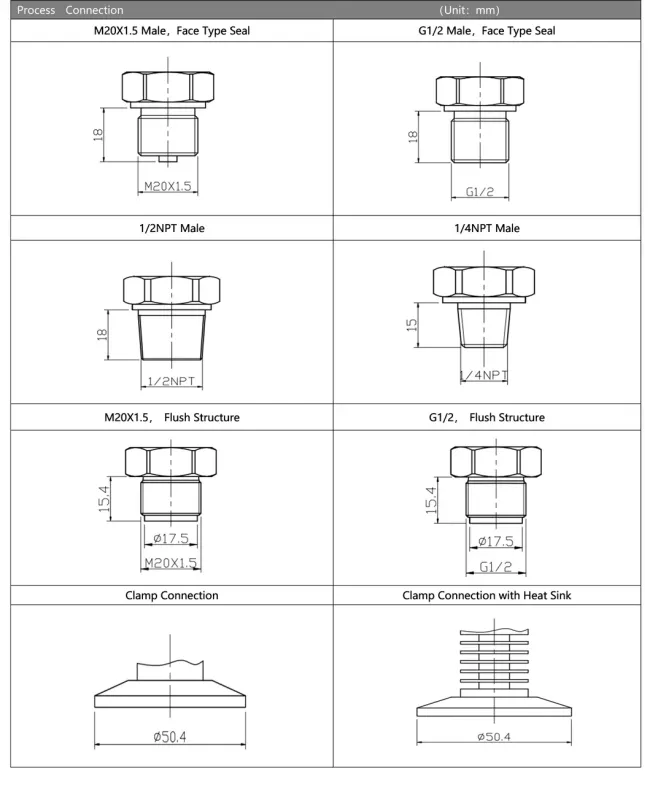

| Code | Pressure Connection |
|---|---|
| J1 | M20×1.5 |
| J2 | G1/2 |
| J3 | G1/4 |
| J4 | 7/16-20UNF |
| J5 | Others(¢50.4 Flange) |

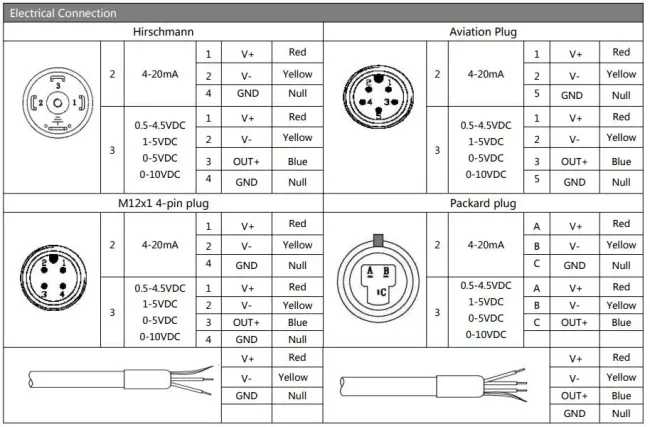

| Code | Electrical Connection |
|---|---|
| B1 | Hirschmann |
| B2 | PG7 |
| B3 | Cable Sealed Outlet 1.5 meters |
| B4 | Other |
| Code | Pressure Type |
|---|---|
| G | Gauge Pressure |
| A | Absolute Pressure |
| S | Sealed Reference Pressure |
Frequently Asked Questions
What are the features of your pressure sensor transmitters?
High precision, durability, and excellent performance. Customization available.
Can I customize special specifications?
Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
What is your production capacity?
Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
What's the typical delivery period?
5~8 working day for standard models. Customized products may vary.
How are the products priced? Any discounts?
Competitive pricing with discounts for bulk orders or long-term partners.
What is the warranty of your products? And after-sales service?
Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
