HTsensor 316L 4-20mA Pressure Transmitter Transducer Oil Gas Pressure Sensor Industrial Pressure Sensor
Price:
20
MOQ:
1
Delivery Time:
Negotiable
Brand:
HT SENSOR
Product Description
HTsensor 316L 4-20mA Pressure Transmitter Transducer Oil Gas Pressure Sensor Industrial Pressure Sensor

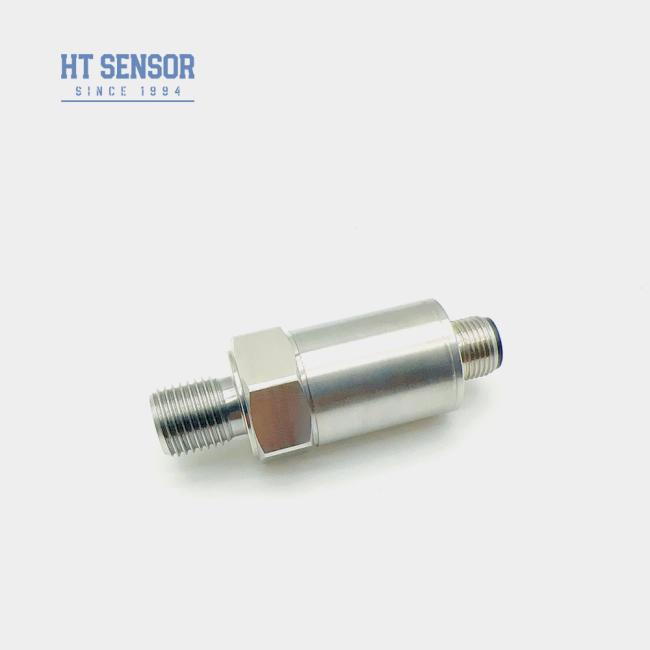

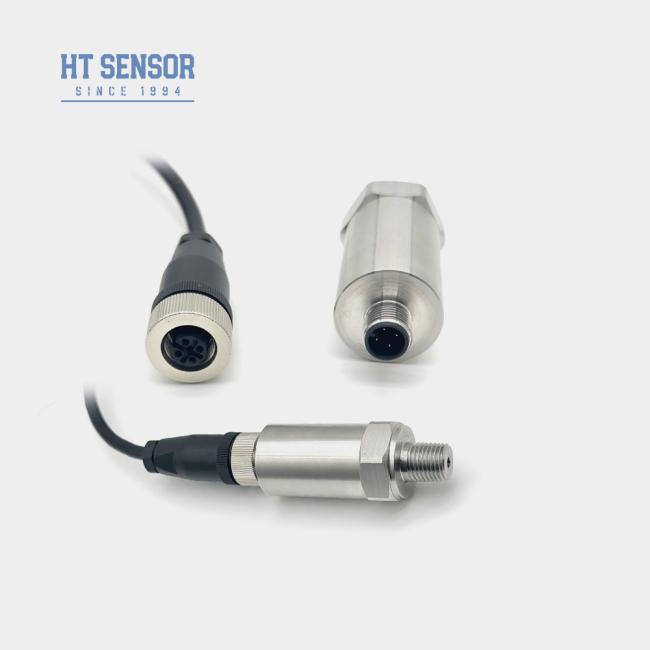

BP156 Pressure Transmitter
The BP156 pressure transmitter utilizes HT series silicon pressure-resistant isolation membrane oil-filled core technology as the signal measuring element. The signal processing circuit is housed within a durable stainless steel enclosure, converting sensor signals into standard output signals. Each unit undergoes rigorous testing and aging screening of components, semi-finished products, and finished products to ensure stable and reliable performance.
Key Features
- Wide measuring range with stainless steel construction
- Multiple pressure interface configurations available
- IP65 protection rating for harsh environments
- Zero and full-scale calibration capability
- High precision measurement accuracy
Applications
- Pressure measurement of non-corrosive gases and liquids using 316L stainless steel
- Marine and aviation industry applications
- Industrial process monitoring in petroleum, chemical, metallurgy, power generation, and hydrology
- Hydraulic and pneumatic control systems
Performance Specifications
| Measurement Range | 0kPa ~ 10kPa…40MPa |
|---|---|
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload Capacity | ≤ 1.5 times rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability & Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10MPa, customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration Resistance | 10g, 55Hz ~ 2kHz |
| Housing Material | 304, 316L Stainless Steel |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.25kg |
Output Signal Configuration
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0/1~10V 0.5~4.5V | 5VDC |
Selection Examples
Ordering Guidelines
- Ensure media compatibility with product contact materials
- Explosion-proof models do not include digital display heads
- Transmitters with LCD/LED display require minimum 20VDC power supply
- Install lightning protection devices and ensure proper grounding for reliable operation
- For temperatures below -20ºC, specify EPDM O-ring seal
- Default cable length: 1.5m (polyethylene material)
- Specify special requirements for vibration, impact, or electromagnetic interference
Ordering Guide
BP15X | Analog Pressure Transmitter
| Code | Outline Construction |
|---|---|
| 5 | Packard plug |
| 6 | Sealed Direct Output Cable 1.5 meters |
| 7 | Mini Hirschmann Connector |
| 8 | Large Hirschmann Connector |
Configuration Options
| Measurement Range | 0kPa ~ 10kPa…5MPa (0-X)Kpa or MPa X: Indicates Actual Measuring Range |
|---|---|
| Power Supply | D1: 24VDC D2: 5VDC D3: Other |
| Output Signal | S1: 4~20mADC S2: 1~5VDC S3: 0~5VDC S4: 0~10mADC S5: 0~20mADC S6: 0~10VDC S7: 0.5~4.5VDC |

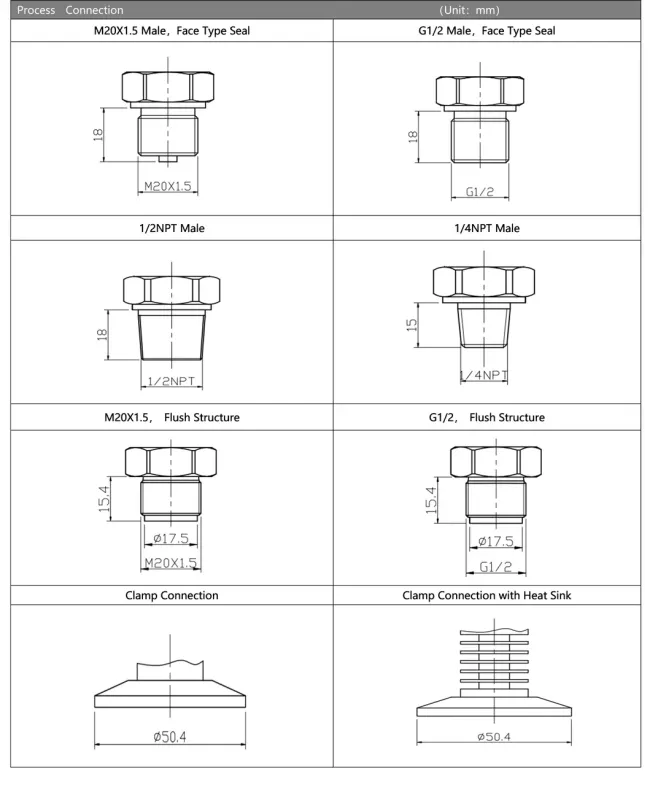

| Pressure Connection | J1: M20×1.5 J2: G1/2 J3: G1/4 J4: 7/16-20UNF J5: Others(¢50.4 Flange) |

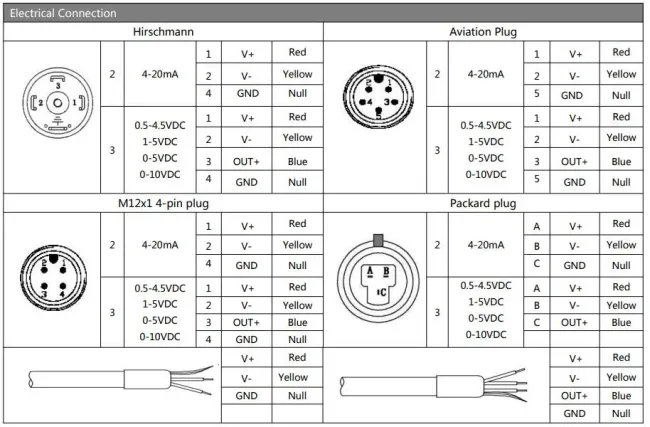

| Electrical Connection | B1: Hirschmann B2: PG7 B3: Cable Sealed Outlet 1.5 meters B4: Other |
| Pressure Type | G: Gauge Pressure A: Absolute Pressure S: Sealed Reference Pressure |
Frequently Asked Questions
What are the features of your pressure sensor transmitters?
High precision, durability, and excellent performance. Customization available.
Can I customize special specifications?
Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.
What is your production capacity?
Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, capable of meeting large-scale orders. Contact our sales team in advance for production scheduling.
What's the typical delivery period?
5-8 working days for standard models. Customized products may vary.
How are the products priced? Any discounts?
Competitive pricing with discounts for bulk orders or long-term partners.
What is the warranty of your products? And after-sales service?
24-month warranty after shipment. After-sales support responds within 24 hours with remote PC network assistance available.
