304 Stainless Steel Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection for Water and Oil Pressure Sensor
Price:
60
MOQ:
1
Delivery Time:
Negotiable
Brand:
HT SENSOR
Product Description
304 Stainless Steel Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection for Water and Oil Pressure Sensor
Professional differential pressure transmitter designed for water and oil applications in industrial environments.
Product Overview

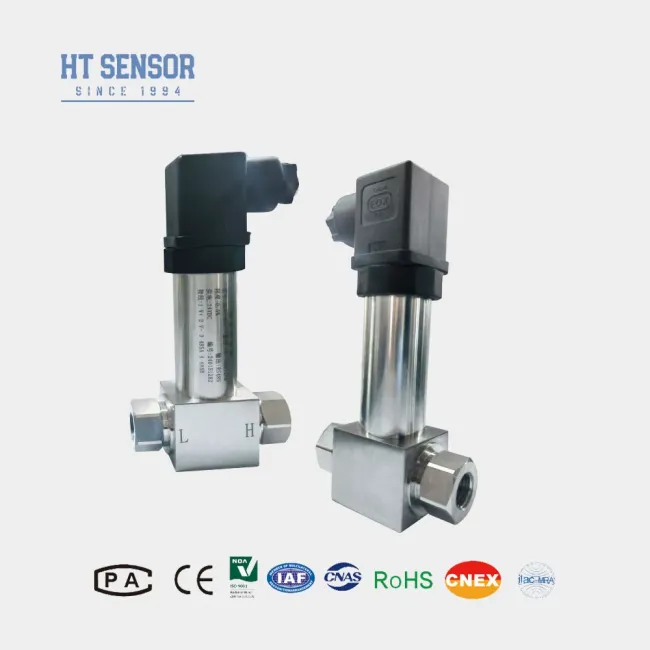

The BP93420DII differential pressure transmitter utilizes a piezoresistive diffused silicon sensor. When differential pressure acts on the corrugated diaphragms, the Wheatstone bridge output provides accurate linear measurement. Ideal for gas and liquid differential pressure measurements in petroleum, chemical, power, and hydrology industries.
Key Features
- Stainless steel construction for compact design and easy installation
- Rigorous temperature compensation and aging screening for stable performance
- Flexible electrical interface options: plug-in or direct wiring
Applications
- Differential pressure measurement for gases and liquids in petroleum, chemical, power, and hydrology pipelines
- Industrial process monitoring in petroleum, chemical, metallurgy, power generation, and hydrology
- Pipeline and furnace chamber pressure measurement systems
Performance Parameters
| Measurement Range | 0-10KPa...~2MPa |
|---|---|
| Pressure Type | Differential Pressure |
| Single-side Overload | ≤3 times of the rated range |
| Static pressure | The minimum value between 5 times the rated range or 7 MPa |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC |
| Operating Temperature | -30ºC~80ºC |
| Storage Temperature | -40ºC~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Intrinsically safe and explosion-proof |
| Protection Rating | IP65 |
| Weight | ~0.55kg |
Output Signal Configuration
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0.5~4.5V | 5VDC |
Ordering Information
Selection Guidelines
- Ensure measured medium compatibility with product contacting parts
- Install three-valve manifold for reliable operation and uniform pressure application
- Position pressure interfaces horizontally to minimize installation impact
- Specify special requirements for vibration, impact, or electromagnetic interference
Order Guide
| BP93420XX | Pressure Transmitter |
| DII | Differential Pressure Transmitter |
| Measurement Range | 0-10KPa...~2MPa |
| Code | Power Supply |
|---|---|
| D1 | 24VDC |
| D2 | 5VDC |
| D3 | Other |
| Code | Output Signal |
|---|---|
| S1 | 4~20mADC |
| S2 | 1~5VDC |
| S3 | 0~5VDC |
| S4 | 0~10mADC |
| S5 | 0~20mADC |
| S6 | 0~10VDC |
| S7 | 0.5~4.5VDC |
| Code | Pressure Connection |
|---|---|
| J1 | M20×1.5 Male |
| J2 | G1/2 Male |
| J3 | G1/4 Male |
| J4 | 1/2 NPT Male |
| J5 | Other |

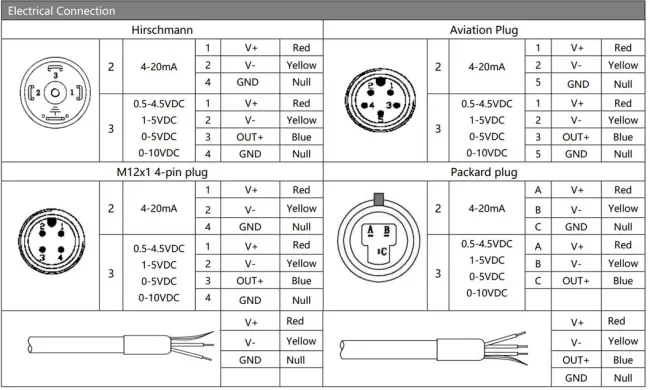

| Code | Electrical Connection |
|---|---|
| B1 | Hirschmann |
| B2 | PG7 Plug |
| B3 | Sealed Cable Output |
| B4 | Other |
| Code | Pressure Type |
|---|---|
| D | Differential Pressure |
Frequently Asked Questions
- What are the features of your pressure sensor transmitters?
- High precision, durability, and excellent performance. Customization available.
- Can I customize special specifications?
- Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
- What is your production capacity?
- Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, capable of meeting large-scale orders. Contact our sales team for production scheduling.
- What's the typical delivery period?
- 5-8 working days for standard models. Customized products may vary.
- How are the products priced? Any discounts?
- Competitive pricing with discounts for bulk orders or long-term partners.
- What is the warranty of your products? And after-sales service?
- 24-month warranty after shipment. After-sales support responds within 24 hours with remote PC network instruction available.
