High Temperature Liquid Level Transmitter And Corrosion Resistant IP68 Waterproof Liquid Level Sensor Pressure Transmitter
Price:
40
MOQ:
1
Delivery Time:
Negotiable
Brand:
HT SENSOR
Product Description
High Temperature And Corrosion Resistant Pressure Transmitter Liquid Level Sensor
The BH93420-I water level transmitter utilizes HT series diffused silicon isolation oil-filled core technology as its signal measuring element. Designed with a full stainless steel housing and compact one-piece structure, this immersion-type sensor features complete stainless steel sealing for superior waterproof performance. Rigorous high and low-temperature compensation and aging tests ensure high reliability and excellent stability.
Product Features
- Full stainless steel housing suitable for various testing environments
- Immersion-type probe measurement for easy installation
- Diverse output signal options available
- Explosion-proof certification: ExiaIICT6
- High protection rating: IP68
- PE or PU cable options
Applications
- Compatible with 316L stainless steel and non-corrosive liquids
- Monitoring water levels in sewage, industrial and municipal water systems, tanks, wells, rivers, seawater, and lakes
- Measuring fuel levels in diesel and fuel tanks
Performance Parameters
| Measurement Range | 0~10m…400m |
|---|---|
| Overload | ≤ 2 X of rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Point Temperature Drift | ±1.5%F.S(Typ.) ±2%F.S (Max.) |
| Full Scale Temperature Drift | ±1.5%F.Sr(Typ.) ±2%F.S (Max.) |
| Compensation Temperature | 0-50ºC (0-1m. 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.3Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane |
Output Signal Options
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0/1~10V 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
Ordering Information
Ordering Tips
- Ensure measured medium compatibility with product components during selection
- Specify the density of the measured medium
- For strong electromagnetic or radio frequency interference, provide details and indicate in order
- Install lightning protection devices on-site and ensure reliable grounding for optimal operation
Order Guide
| Component | Code | Description |
|---|---|---|
| Base Model | BH93420 | Pressure Transmitter |
| Measurement Range | 0~10m…400m | |
| Power Supply | D1 | 24VDC |
| Power Supply | D2 | 5VDC |
| Power Supply | D3 | Other |
| Output Signal | S1 | 4~20mADC |
| Output Signal | S2 | 1~5VDC |
| Output Signal | S3 | 0~5VDC |
| Output Signal | S4 | 0~10mADC |
| Output Signal | S5 | 0~20mADC |
| Output Signal | S6 | 0~10VDC |
| Output Signal | S7 | 0.5~4.5VDC |
| Output Signal | S8 | RS485 |
| Pressure Type | G | Gauge Pressure |
| Pressure Type | A | Absolute Pressure |
| Pressure Type | S | Sealed Reference Pressure |
| Material | 01 | 304 Stainless Steel |
| Material | 02 | 316L Stainless Steel |
| Cable Material | C1 | PE |
| Cable Material | C2 | PU |
Frequently Asked Questions
What are the features of your pressure sensor transmitters?
High precision, durability, and excellent performance. Customization available.
Can I customize special specifications?
Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
What is your production capacity?

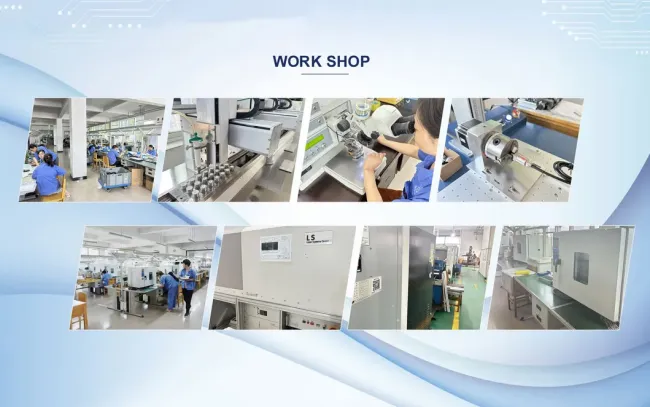

Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
What's the typical delivery period?
5~8 working days for standard models. Customized products may vary.
How are the products priced? Any discounts?
Competitive pricing with discounts for bulk orders or long-term partners.
What is the warranty of your products? And after-sales service?
Our warranty time is 24 months after shipment, and our after-sales will respond to your questions within 24 hours. Remote instruction by PC network is always available.
