4-20mA Output 316L Stainless Steel Sensor IP68 Waterproof Liquid Level Transmitter Pressure Transducer
Price:
40
MOQ:
1
Delivery Time:
Negotiable
Brand:
HT SENSOR
Product Description
4-20mA Output 316L Stainless Steel Sensor IP68 Waterproof Liquid Level Transmitter Pressure Transducer
BH93420-I Water Level Transmitter
The BH93420-I water level transmitter utilizes HT series diffused silicon isolation oil-filled core technology as its signal measuring element. Featuring a full stainless steel housing and compact one-piece structure, this immersion-type transmitter offers exceptional waterproof performance with its completely sealed stainless steel sensing element. Rigorous high and low-temperature compensation and aging tests ensure high reliability and excellent stability.
Key Features
- Full stainless steel housing for diverse testing environments
- Immersion-type probe measurement for easy installation
- Multiple output signal options available
- Explosion-proof certification: ExiaIICT6
- High protection rating: IP68
- PE or PU cable options
Applications
- Compatible with 316L stainless steel and non-corrosive liquids
- Water level monitoring for sewage, industrial and municipal water systems, tanks, wells, rivers, seawater, and lakes
- Fuel level measurement in diesel and fuel tanks
Performance Parameters
| Measurement Range | 0~10m…400m |
|---|---|
| Overload | ≤ 2 X of rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Point Temperature Drift | ±1.5%F.S(Typ.) ±2%F.S (Max.) |
| Full Scale Temperature Drift | ±1.5%F.Sr(Typ.) ±2%F.S (Max.) |
| Compensation Temperature | 0-50ºC (0-1m. 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.3Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane |

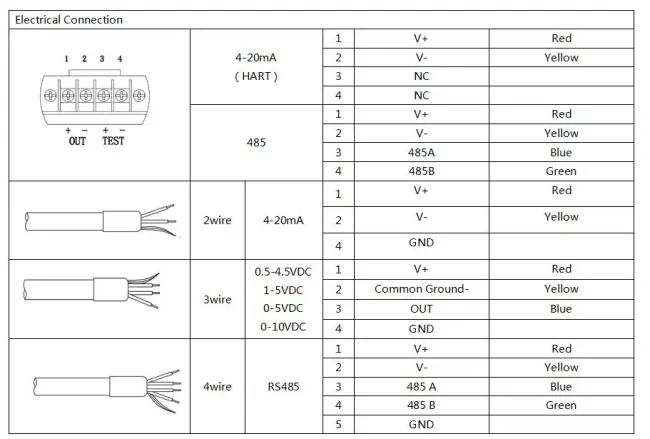

Output Signal Specifications
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0/1~10V 0.5~4.5V |
5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
Ordering Information
Selection Tips
- Ensure measured medium compatibility with product components
- Specify the density of the measured medium
- Provide details of strong electromagnetic or radio frequency interference environments
- Install lightning protection devices and ensure reliable grounding for optimal performance
Order Guide
| BH93420 | Code | Outline Construction | |
|---|---|---|---|
| I | Pressure Transmitter | ||
| Measurement Range | 0~10m…400m | ||
| Code | Power Supply | ||
| D1 | 24VDC | ||
| D2 | 5VDC | ||
| D3 | Other | ||
| Code | Output Signal | ||
| S1 | 4~20mADC | S5 | 0~20mADC |
| S2 | 1~5VDC | S6 | 0~10VDC |
| S3 | 0~5VDC | S7 | 0.5~4.5VDC |
| S4 | 0~10mADC | S8 | RS485 |
| Code | Pressure Type | ||
| G | Gauge Pressure | ||
| A | Absolute Pressure | ||
| S | Sealed Reference Pressure | ||
| Code | Material | ||
| 01 | 304 Stainless Steel | ||
| 02 | 316L Stainless Steel | ||
| Code | Cable Material | ||
| C1 | PE | ||
| C2 | PU |
Frequently Asked Questions
- What are the features of your pressure sensor transmitters?
- High precision, durability, and excellent performance. Customization available.
- Can I customize special specifications?
- Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
- What is your production capacity?
- Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
- What's the typical delivery period?
- 5~8 working day for standard models. Customized products may vary.
- How are the products priced? Any discounts?
- Competitive pricing with discounts for bulk orders or long-term partners.
- What is the warranty of your products? And after-sales service?
- Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
