Hengtong BH93420-III Stainless Steel IP68 Waterproof 4-20mA Output Liquid Level Transmitter and Level Sensor
Price:
50
MOQ:
1
Delivery Time:
Negotiable
Brand:
HT SENSOR
Product Description

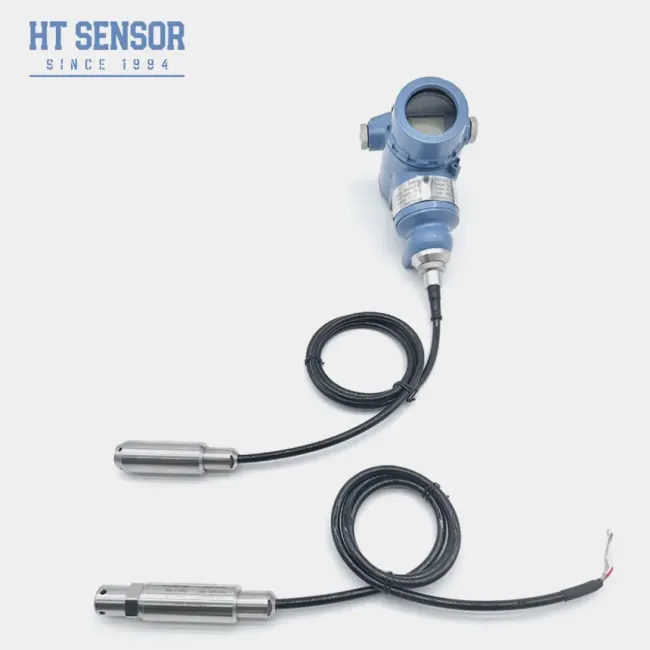

BH93420-III Split Level Transmitter Pressure Sensor
The Hengtong BH93420-III split level transmitter is a precision liquid level measurement sensor featuring 4-20mA output with LED display capability. This advanced sensor utilizes a highly precise piezoresistive diffused silicon pressure sensor to measure static pressure directly related to water level, converting it into standard signal output through amplification circuitry.
Key Features
- Split-type design for easy on-site wiring and calibration
- Integrated LED display for clear readings
- Explosion-proof rating: ExiaIICT6
- High protection rating: IP68
- Multiple cable options: PE, PU, PTFE
Applications
- Compatible with 316L stainless steel and non-corrosive liquids
- Water level monitoring for sewage, industrial and municipal water systems, tanks, wells, rivers, seawater, and lakes
- Diesel, fuel, and other oil tank level monitoring
Performance Parameters
| Measurement Range | 0~10m…400m |
|---|---|
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | Cast aluminum, 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.5Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane, PTFE cable |
| Output Signal | 4~20mA, RS485 Communication Protocol |
Outline Construction
Electrical Connection
Selection Examples
Ordering Information
Important Ordering Tips
- Ensure measured medium compatibility with product components
- Specify the density of the measured medium
- For strong electromagnetic or radio frequency interference, provide details during ordering
- Install lightning protection devices and ensure proper grounding for reliable operation
Order Guide
| Parameter | Code | Description |
|---|---|---|
| Outline Construction | III | Liquid level transmitter with 2088 housing |
| Measurement Range | 0~10m…400m | |
| Power Supply | D1 | 24VDC |
| Output Signal | S1/S2 | 4~20mADC / RS485 |
| Electrical Connection | B5/B6 | 2088 with display / 3051A |
| Pressure Type | G/A/S | Gauge / Absolute / Sealed Reference Pressure |
| Material | 01/02 | 304 Stainless Steel / 316L Stainless Steel |
| Cable Material | C1/C2/C3 | PE / PU / PTFE |
Frequently Asked Questions
- Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available. - Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services. - Q: What is your production capacity?
A: Up to 30,000 pressure sensor transmitters per month. Contact our sales team for large-scale orders. - Q: What's the typical delivery period?
A: 5-8 working days for standard models. Customized products may vary. - Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners. - Q: What is the warranty and after-sales service?
A: 24-month warranty after shipment. 24-hour response time with remote PC network support available.
