304 Stainless Steel IP68 Waterproof Liquid Level Transmitter with 4-20mA Output for Fuel and Water Pressure Sensor
Price:
50
MOQ:
1
Delivery Time:
Negotiable
Brand:
HT SENSOR
Product Description

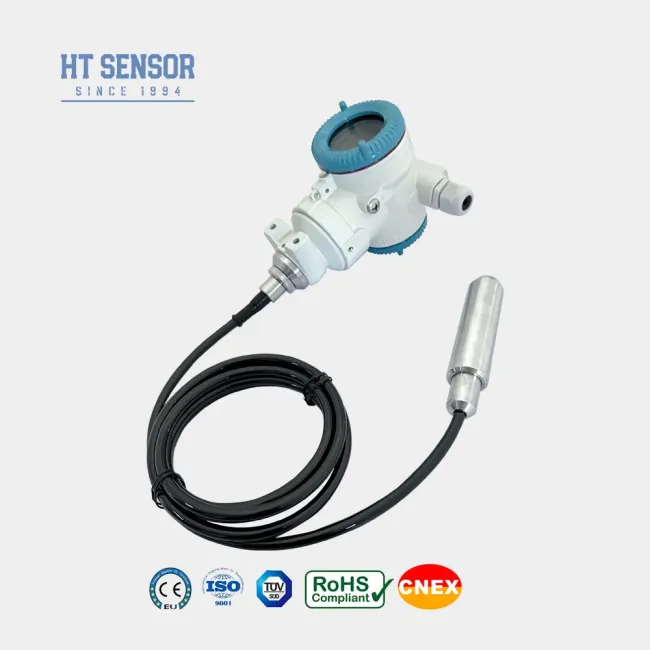

BH93420-III Water Level Transmitter
The BH93420-III water level transmitter utilizes a highly precise Piezoresistive diffused silicon pressure sensor to measure static pressure directly related to water level. This advanced sensor converts pressure into standard signal output through amplification circuitry, establishing a linear relationship between output signal and liquid level for precise and accurate water level measurement.
Key Features
- Split-type design for easy on-site wiring and calibration
- Clear LED display for real-time monitoring
- Explosion-proof rating: ExiaIICT6 for hazardous environments
- High protection rating: IP68 for complete dust and water immersion protection
- Multiple cable options: PE, PU, PTFE materials available
Applications
- Compatible with 316L stainless steel and non-corrosive liquids
- Water level monitoring in sewage, industrial and municipal water systems, tanks, wells, rivers, seawater, and lakes
- Diesel, fuel, and other oil tank level monitoring and control
Performance Parameters
| Measurement Range | 0~1m…400m H₂O |
|---|---|
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload Capacity | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration Resistance | 10g, 55Hz ~ 2kHz |
| Shock Resistance | 100g |
| Housing Material | Cast aluminum, 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.5Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane, PTFE cable |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 15~30VDC | 2/3/4 wire |
| RS485 Communication Protocol | 4 wire |
Outline Construction

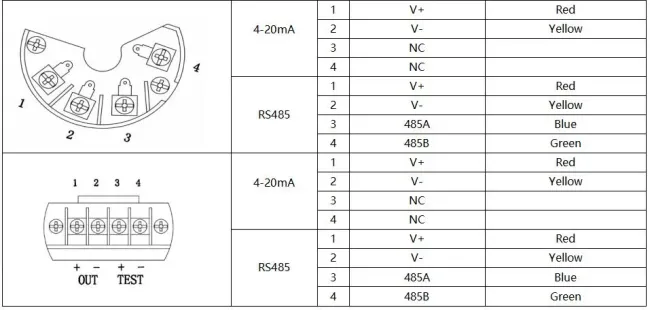

Electrical Connection
Selection Examples
Ordering Information
Important Ordering Considerations:
• Ensure measured medium compatibility with product components
• Specify density of the measured medium
• For strong electromagnetic or RF interference environments, provide details during ordering
• Install lightning protection devices and ensure proper grounding for reliable operation
Order Guide
| BH93420 | Code | Outline Construction | |
| I | Pressure Transmitter | ||
| Measurement Range | 0~10m…400m | ||
| Code | Power Supply | ||
| D1 | 24VDC | ||
| D2 | 5VDC | ||
| D3 | Other | ||
| Code | Output Signal | ||
| S1 | 4~20mADC | S5 | 0~20mADC |
| S2 | 1~5VDC | S6 | 0~10VDC |
| S3 | 0~5VDC | S7 | 0.5~4.5VDC |
| S4 | 0~10mADC | S8 | RS485 |
| Code | Pressure Type | ||
| G | Gauge Pressure | ||
| A | Absolute Pressure | ||
| S | Sealed Reference Pressure | ||
| Code | Material | ||
| 01 | 304 Stainless Steel | ||
| 02 | 316L Stainless Steel | ||
| Code | Cable Material | ||
| C1 | PE | ||
| C2 | PU |
Frequently Asked Questions
- Q: What are the features of your pressure sensor transmitters?
- A: High precision, durability, and excellent performance. Customization available.
- Q: Can I customize special specifications?
- A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.
- Q: What is your production capacity?
- A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, capable of meeting large-scale orders. Contact our sales team in advance for production and delivery scheduling.
- Q: What's the typical delivery period?
- A: 5-8 working days for standard models. Customized products may vary.
- Q: How are the products priced? Any discounts?
- A: Competitive pricing with discounts for bulk orders or long-term partners.
- Q: What is the warranty of your products? And after-sales service?
- A: 24-month warranty after shipment. Our after-sales team responds within 24 hours, with remote PC network instruction always available.
