BH93420-III Liquid Level Transmitter with 4-20mA Output 316L Stainless Steel and IP68 Waterproof Level Sensor
Price:
50
MOQ:
1
Delivery Time:
Negotiable
Product Description

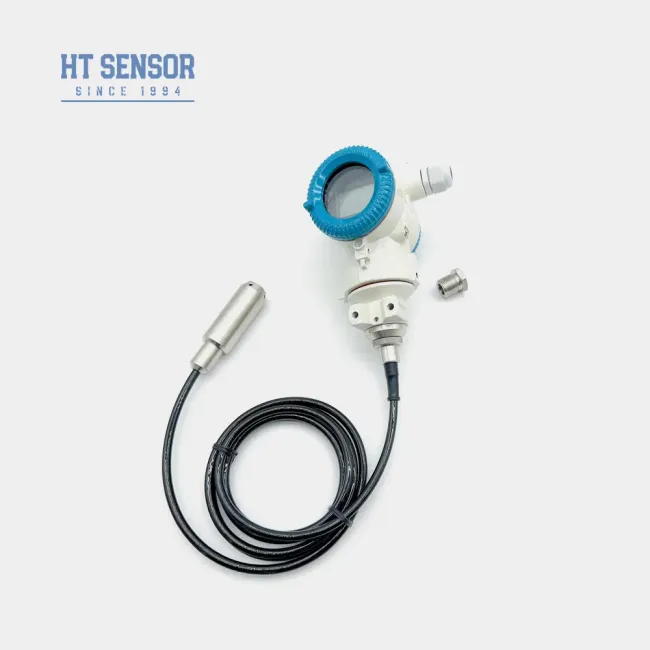

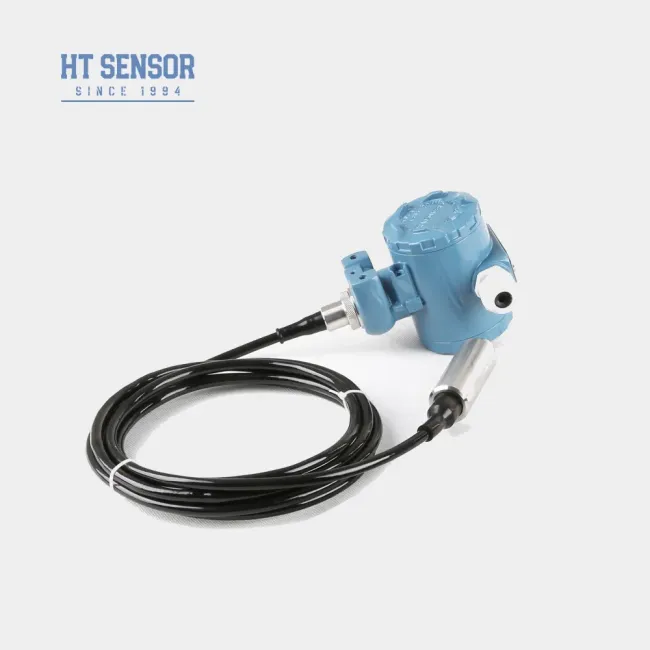

BH93420-III Oil Level Sensor with Display
The BH93420-III oil level sensor features a highly precise Piezoresistive diffused silicon pressure sensor for accurate liquid level measurement. It converts static pressure into standard 4-20mA output signals with linear relationship to liquid level.
Key Features
- Split-type design for easy on-site wiring and calibration
- Integrated LED display for real-time monitoring
- Explosion-proof rating: ExiaIICT6
- High protection rating: IP68
- Multiple cable options: PE, PU, PTFE
Applications
- Compatible with 316L stainless steel and non-corrosive liquids
- Water level monitoring for sewage, industrial water, municipal water systems, tanks, wells, rivers, seawater, and lakes
- Diesel, fuel, and oil tank level monitoring
Performance Parameters
| Measurement Range | 0~10m…400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | Cast aluminum, 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.5Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane, PTFE cable |
Output Signal Specifications
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 15~30VDC | 2/3/4 wire |
| RS485 Communication Protocol | 4 wire |
Outline Construction

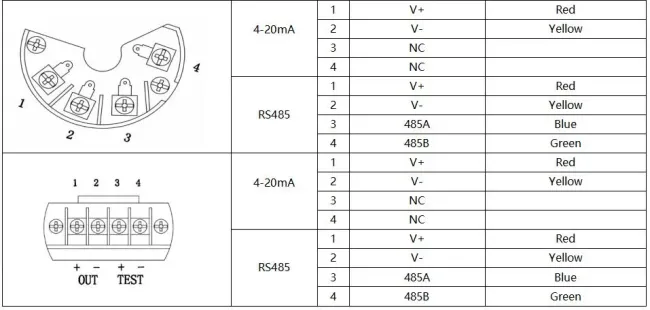

Electrical Connection

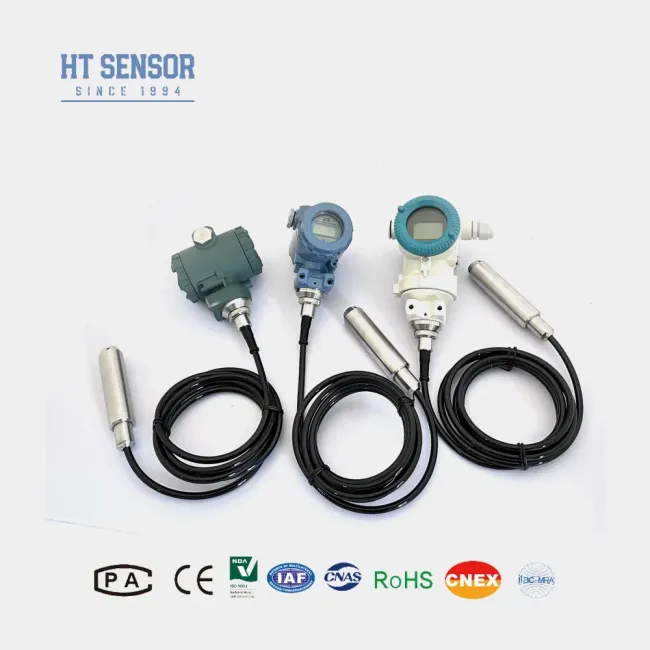

Selection Examples
Ordering Information
Important Considerations:
• Ensure measured medium compatibility with product components
• Specify density of measured medium
• For strong electromagnetic or RF interference environments, provide details during ordering
• Install lightning protection devices and ensure proper grounding for reliable operation
Order Guide
BH93420 | Code | Outline Construction
| III | Liquid level transmitter with the 2088 housing
| | Measurement Range | 0~10m…400m
| | | Code | Power Supply
| | | D1 | 24VDC
| | | | Code | Output Signal
| | | | S1 | 4~20mADC | S2 | RS485
| | | | | Code | Electrical Connection
| | | | | B5 | 2088 with display
| | | | | B6 | 3051A
| | | | | | Code | Pressure Type
| | | | | | G | Gauge Pressure
| | | | | | A | Absolute Pressure
| | | | | | S | Sealed Reference Pressure
| | | | | | | Code | Material
| | | | | | | 01 | 304 Stainless Steel
| | | | | | | 02 | 316L Stainless Steel
| | | | | | | | Code | Cable Material
| | | | | | | | C1 | PE
| | | | | | | | C2 | PU
| | | | | | | | C3 | PTFE
Frequently Asked Questions
Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.
Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month. Contact our sales team in advance for large-scale orders.
Q: What's the typical delivery period?
A: 5-8 working days for standard models. Customized products may vary.
Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
Q: What is the warranty of your products? And after-sales service?
A: 24-month warranty after shipment. After-sales support responds within 24 hours with remote PC network instruction available.
