Hengtong 4-20mA High Temperature Resistance Flush Diaphragm Pressure Transmitter for Hygienic Applications
Price:
48
MOQ:
1
Delivery Time:
Negotiable
Product Description
Hengtong 4-20mA High Temperature Resistance Flush Pressure Sensor Transmitter
High temperature flush diaphragm pressure sensor transducer BP93420-IQ Pressure Transmitter
Product Overview
BP93420-IQT features a 1.5mm clamp installation with large diaphragm high temperature transmitter design. The signal processing circuit is housed within a stainless steel enclosure, converting sensor signals into standard output signals. This pressure transmitter is specifically engineered for applications requiring high sanitary standards, ensuring reliable and accurate pressure measurements in hygienic environments.
Key Features

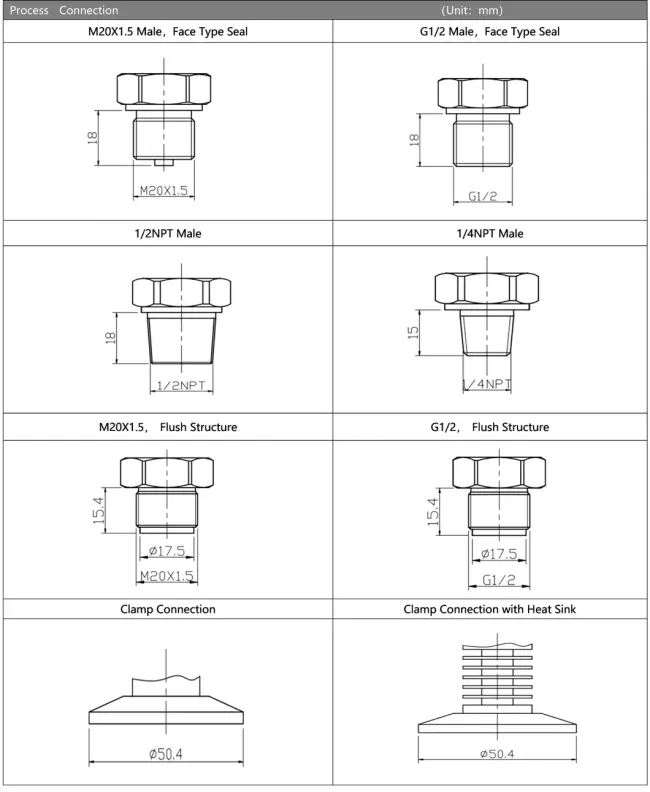

- Multiple pressure interface options for versatile applications
- Specifically designed for hygienic applications to prevent medium scaling
- High accuracy performance with fully stainless steel construction
- Easy to clean design for maintenance efficiency
Applications
- Measurement of non-corrosive gases and liquids using 316L materials
- Environmental protection and chemical processing industries
- Marine and aviation industry applications
- Medical, biopharmaceutical, and food hygiene industries
Performance Parameters
| Measurement Range | 0~35Kpa…~3.5MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | 0.1%FS |
| Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | -20-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.55kg |
Output Signal Specifications
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0/1~10V 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
Ordering Guide
Product Code Structure
BP93420XX | Pressure Transmitter
| Code | Outline Construction |
|---|---|
| IB | General Pressure Transmitter |
| IX | Display Pressure Transmitter |
| IE | Shock-resistant Aviation Pressure Transmitter |
| IIC/III | Industrial General/ Display Pressure Transmitter |
| IF | Moisture-proof Pressure Transmitter |
| IIE/IIIE | General/Display Pressure Transmitter |
| IN | Air Conditioning Dedicated Pressure Transmitter |
| IC | High-temperature Pressure Transmitter |
| IQ/IQT | Large Diaphragm /High-temperature Pressure Transmitter |
Measurement Range
-100kPa…0kPa ~ 35kPa…3.5MPa (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range
| Code | Power Supply |
|---|---|
| D1 | 24VDC |
| D2 | 5VDC |
| D3 | Other |
| Code | Output Signal |
|---|---|
| S1 | 4~20mADC |
| S2 | 1~5VDC |
| S3 | 0~5VDC |
| S4 | 0~10mADC |
| S5 | 0~20mADC |
| S6 | 0~10VDC |
| S7 | 0.5~4.5VDC |

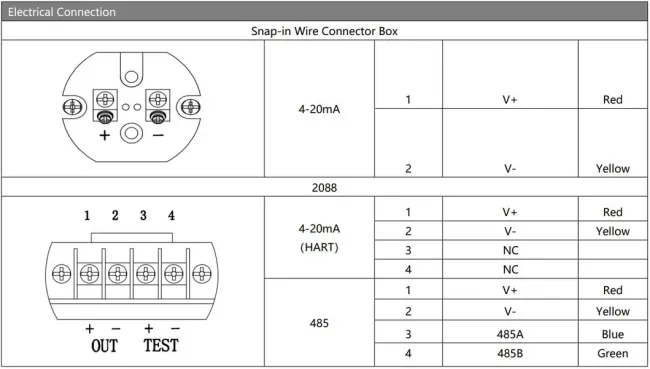

| Code | Electrical Connection |
|---|---|
| B1 | Hirschmann |
| B2 | PG7 Plug |
| B3 | Sealed Cable Output |
| B4 | 2088 Industrial Casing |
| B5 | 2088 Industrial Casing with Display |
| B6 | Other |
| Code | Pressure Type |
|---|---|
| G | Gauge Pressure |
| A | Absolute Pressure |
| S | Sealed Reference Pressure |
Ordering Guidelines
- Ensure the measured medium is compatible with the product's contact materials
- Explosion-proof type products do not include digital display heads
- Transmitters with LCD or LED display require power supply ≥20VDC
- Install lightning protection devices and ensure proper grounding for reliable operation
- Fluoro rubber O-ring rated for -20ºC to 250ºC; for temperatures below -20ºC, select EPDM O-ring seal
- Default cable length is 1.5m (polyethylene material); specify alternative materials if required
- Notify for special requirements: strong vibration, impact force, electromagnetic or RF interference
