19mm Dia Stainless Steel Housing IP65 Protection Silicon Piezoresistive Pressure Sensor Core for Diffused Silicon Transmitter
Price:
10
MOQ:
5
Delivery Time:
Negotiable
Product Description
19mm Dia Pressure Sensor Core for Industry Transmitter Level Sensor
19mm Silicon Piezoresistive Pressure Sensor designed for industrial transmitters and level sensing applications.
Product Introduction

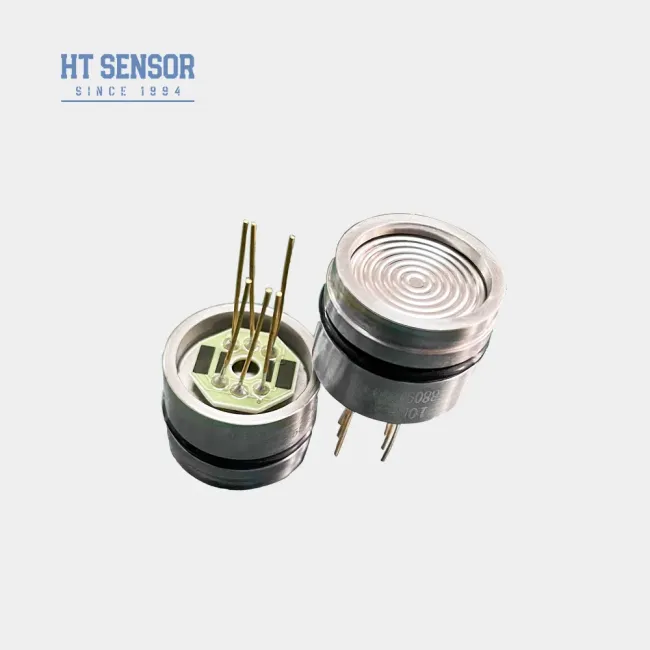

The HT19F is a silicon piezoresistive pressure sensor featuring a highly stable diffused silicon element core. It accurately measures liquid and gas pressure by transmitting the tested medium's pressure to the silicon diaphragm through an isolation diaphragm and silicon oil. This versatile sensor is widely used in air compressors and refrigeration systems.
Key Features
- Advanced technology with 316L stainless steel housing
- Premium diaphragm materials including titanium and Hastelloy
- Thick-film circuits for temperature compensation and zero-point correction
- Exceptional reliability, repeatability, and stability
Applications
- Measurement of non-corrosive gas and liquid pressure with 316L stainless steel compatibility
- Industrial process sites including petroleum, chemical, metallurgy, power, and hydrology
- Marine and aviation industries
- Hydraulic and pneumatic control systems
- Process control applications
Electrical Performance
Power Supply: ≤2mA DC (Typical 1.5mA DC)
Input Impedance: 3KΩ~6KΩ
Output Impedance: 2.5KΩ~6KΩ

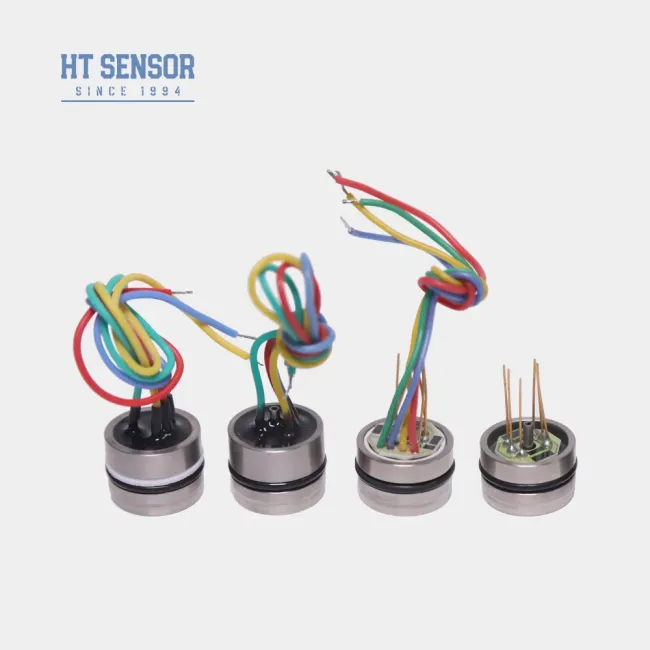

Electrical Connection: Gold-plated Kovar pins or 100mm high-temperature wires
Input Impedance: 3KΩ~6KΩ
Output Impedance: 2.5KΩ~6KΩ
Electrical Connection: Gold-plated Kovar pins or 100mm high-temperature wires
Performance Parameters
| Parameter | Typ | Max | Unit |
|---|---|---|---|
| Nonlinearity | ±0.15 | ±0.3 | %F.S |
| Repeatability | 0.05 | 0.1 | %F.S |
| Hysteresis | 0.05 | 0.1 | %F.S |
| Zero Output | 0±1 | 0±2 | mV |
| Span Output (≤20KPa) | 50±10 | 50±30 | mV |
| Span Output (≥35kPa) | 100±10 | 100±30 | mV |
| Temperature Error-Zero (≤20KPa) | ±1 | ±2 | %F.S |
| Temperature Error-Zero (≥35kPa) | ±0.5 | ±1 | %F.S |
| Temperature Error-Span (≤20KPa) | ±1 | ±2 | %F.S |
| Temperature Error-Span (≥35kPa) | ±0.5 | ±1 | %F.S |
| Compensated Temp. (≤20KPa) | 0~50 | - | ºC |
| Compensated Temp. (≥35kPa) | 0~70 | - | ºC |
| Operating Temperature | -20~80 | - | ºC |
| Storage Temperature | -40~125 | - | ºC |
| Allowable Overload | Take the smaller value between 3 times the full scale or 120MPa | ||
| Burst Pressure | 5X the full scale | ||
| Long-term Stability | 0.2 % F.S/Year | ||
| Diaphragm Material | 316L | ||
| Insulation Resistance | ≥200MΩ 100VDC | ||
| Vibration | No change under conditions of 10gRMS, 20Hz to 2000Hz | ||
| Shock | 100g,11ms | ||
| Response Time | ≤1ms | ||
| O-ring Seal | Nitrile ring or Fluoro ring | ||
| Filling Medium | Silicon Oil | ||
| Weight | about 28g | ||
Parameters tested under: 1.5mA @ 25°C
Pressure Ranges
Gauge (G): 10KPa, 20KPa, 35KPa, 100KPa, 200KPa, 350KPa, 1000KPa, 2000Kpa
Absolute (A): 100KPaA, 200KPaA, 350KPaA, 700KPaA, 1000KPaA, 2000KPaA
Sealed (S): 3500KPaS, 7MPaS, 10MPaS, 20MPaS, 40MPaS, 60MPaS, 100MPaS
Absolute (A): 100KPaA, 200KPaA, 350KPaA, 700KPaA, 1000KPaA, 2000KPaA
Sealed (S): 3500KPaS, 7MPaS, 10MPaS, 20MPaS, 40MPaS, 60MPaS, 100MPaS
Outline Construction
<3.5MPaS
≥3.5MPaS <40MPaS
≥40MPaS
Electrical Connection and Compensation
Selection Examples
Ordering Tips
- Ensure proper fit between core size and transmitter housing for required airtightness
- During housing assembly, maintain vertical alignment and apply even pressure to avoid damaging the compensation plate
- Provide special instructions when ordering if the measured medium is incompatible with 316L diaphragm material
- Avoid pressing the sensor diaphragm with hands or sharp objects to prevent damage
- Keep gauge pressure core ports open to atmosphere and prevent entry of water, vapor, or corrosive media
- Refer to actual core label for any pin lead changes
Company Information
Frequently Asked Questions
Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
Q: What is your production capacity?

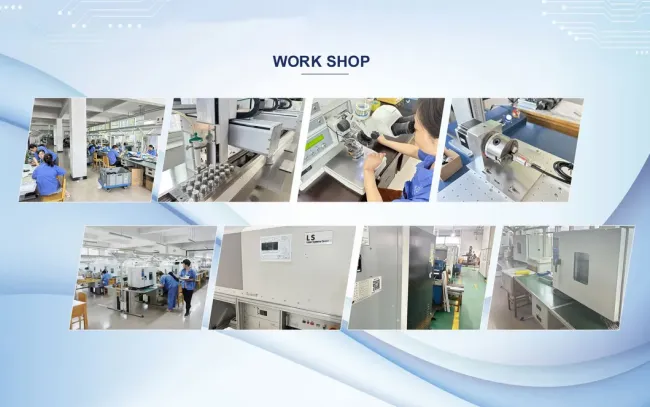

A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
