HT Sensor Differential Pressure Transmitter for Petroleum Chemical Industry Pressure Sensor
Price:
60
MOQ:
1
Delivery Time:
Negotiable
Brand:
HT SENSOR
Product Description

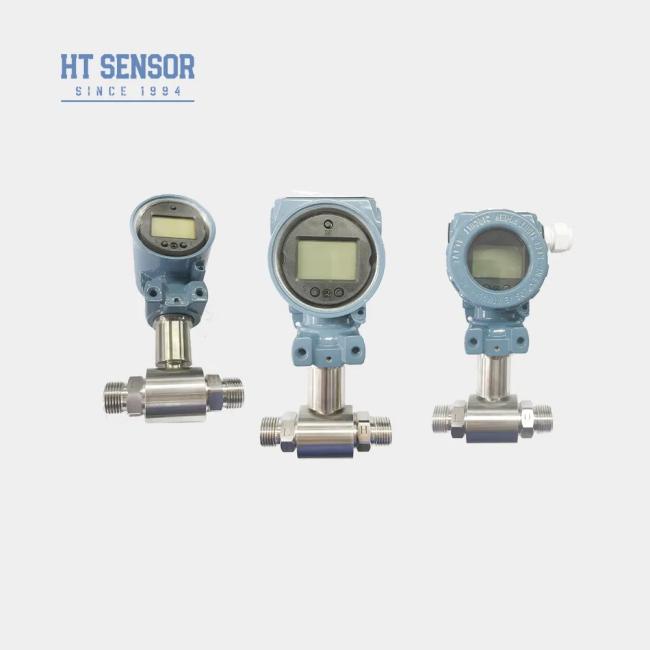

HT Sensor Differential Pressure Transmitter for Petroleum Chemical Industry
Product Introduction
The BP93420DII differential pressure transmitter utilizes a piezoresistive diffused silicon sensor. When differential pressure from the measured medium acts on the corrugated diaphragms at both sensor ends, the Wheatstone bridge output signal maintains excellent linear correlation with differential pressure, ensuring precise measurement. This transmitter is ideal for gas and liquid differential pressure measurement in petroleum, chemical, power, and hydrology industry pipelines.
Product Features
- Stainless steel structural design for compact size and easy installation
- Rigorous temperature compensation and aging screening ensure stable, reliable performance
- Flexible electrical interface options: plug-in or direct wiring configurations
Applications
- Differential pressure measurement for gases and liquids in petroleum, chemical, power, and hydrology industry pipelines
- Industrial process monitoring in petroleum, chemical, metallurgy, power generation, and hydrology applications
- Pressure measurement for pipelines and furnace chambers
Performance Parameters
| Measurement Range | 0-10KPa...~2MPa |
|---|---|
| Pressure Type | Differential Pressure |
| Single-side Overload | ≤3 times of the rated range |
| Static pressure | The minimum value between 5 times the rated range or 7 MPa |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC |
| Operating Temperature | -30ºC~80ºC |
| Storage Temperature | -40ºC~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Intrinsically safe and explosion-proof |
| Protection Rating | IP65 |
| Weight | ~0.45kg |
Output Signal Specifications
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0.5~4.5V | 5VDC |
Ordering Information
Ordering Tips
- Ensure measured medium compatibility with product contacting parts during selection
- Install a three-valve manifold between measurement point and transmitter for reliable operation and uniform pressure application
- Position pressure interfaces horizontally during installation to minimize location impact
- Specify special requirements for vibration, impact force, electromagnetic interference, or radio frequency interference in your order
Order Guide
| BP93420XX | Pressure Transmitter |
| Code | Outline Construction |
| DII | Differential Pressure Transmitter |
| Measurement Range | 0-10KPa...~2MPa |
| Code | Power Supply |
| D1 | 24VDC |
| D2 | 5VDC |
| D3 | Other |
| Code | Output Signal |
| S1 | 4~20mADC |
| S2 | 1~5VDC |
| S3 | 0~5VDC |
| S4 | 0~10mADC |
| S5 | 0~20mADC |
| S6 | 0~10VDC |
| S7 | 0.5~4.5VDC |
| Code | Pressure Connection |
| J1 | M20×1.5 Male |
| J2 | G1/2 Male |
| J3 | G1/4 Male |
| J4 | 1/2 NPT Male |
| J5 | Other |
| Code | Electrical Connection |
| B1 | Hirschmann |
| B2 | PG7 Plug |
| B3 | Sealed Cable Output |
| B4 | Other |
| Code | Pressure Type |
| D | Differential Pressure |
Frequently Asked Questions
Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
Q: What's the typical delivery period?
A: 5~8 working days for standard models. Customized products may vary.
Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond to your questions within 24hrs. Remote instruction by PC network is always available.
