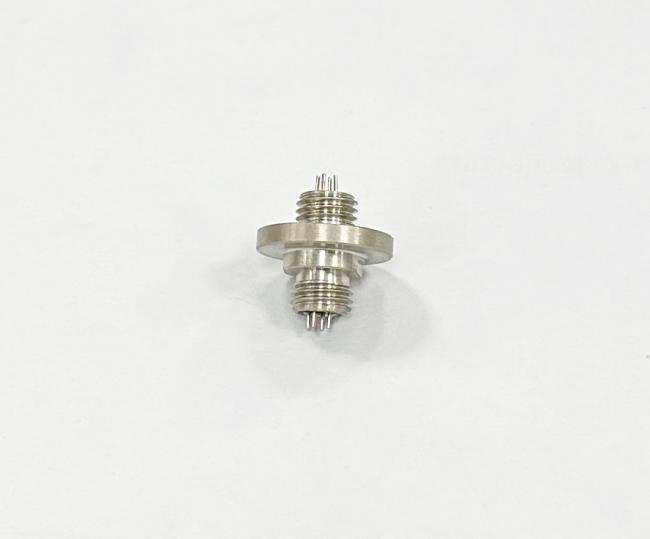

Screw Mounted Hermetic Fitting Connectors 45 Steel -70°C To 300°C

Product Description:

We are capable of meeting customer requirements concerning the production of sintered seal terminals of variable types. Performance parameters of the ones we make can be outlined as below:

• Material: 45 Steel
• Hi-pot: With a voltage of 3000v, the leakage current is lower than or equal to 0.5MA.
• IR: 1000V and the insulation resistance is over 1000MΩ.
• Leak Test: Assessed under 4MPa nitrogen pressure, no leakage.
• Burst Test: Under a pressure of 5MPa, no leakage.
• Operating Temperature Range: -70°C to 300°C.

Features:

• Product Name: Hermetic Feedthrough Connectors
• Contact Plating: Electroless Nickel
• Material: 45 Steel
• Core column: Φ0.5mm-Φ3.2mm
• Connector Type: Hermetic
• System: Hermetic Connectors System
• Cable Connectors: Hermetic Cable Connectors
• Devices: Hermetic Feedthrough Devices

Technical Parameters:

Our company provides electroless nickel plating method which is environmentally friendly. It has the coating thickness of 3-5 microns, and effectively meets the EU standards with the SGS environmental testing report.

The electroless nickel plating method has several advantages. It does not have the contents of mercury, lead, cadmium, hexavalent chromium or any other harmful substances. Besides, it has great performance on electrical connections.

Applications:

Our sintered joints are extensively used in various types of pressure, temperature, signal, and other sensors. They are designed to provide the utmost levels of protection, insulation, and resistance to pressure differentials.

With their high levels of resilience and strength, they can resist large amounts of external forces and, at the same time, enable signal transmission without disruption.

Customization:

SSCore's Hermetic Feedthrough Connectors offer reliable and robust sealing, high voltage and high current hermetic feedthrough terminals for use in a variety of applications. Our hermetic feedthrough assemblies are designed for extreme environments, and are manufactured from 45 steel for superior strength and durability. With a temperature rating from -70°C to 300°C, and core columns from Φ0.5mm-Φ3.2mm, these hermetic feedthrough connectors are perfect for the most demanding applications. Our hermetic sealing connectors are also available with mounting screws, making them easy to install.

Product Specifications:

• Brand Name: SSCore
• Place of Origin: ShenZheng
• Minimum Order Quantity: 5 pcs
• Price: 10 - 60 $
• Packaging Details: vacuum package
• Delivery Time: 7 - 14 work days
• Payment Terms: L/C, D/A, T/T, D/P
• Supply Ability: 50w pieces a month
• Manufacturer: SSCore
• Mounting Type: Mounting Screw
• Core column: Φ0.5mm-Φ3.2mm
• Material: 45 Steel
• Temperature Rating: -70°C To 300°C.

For more information on our hermetic feedthrough assemblies, hermetic feedthrough terminals and hermetic sealing connectors, contact SSCore today.

Support and Services:

At [COMPANY NAME], we provide comprehensive technical support and service for Hermetic Feedthrough Connectors. Our experienced engineers are available to provide you with the highest level of customer service and technical support.

We offer the following services to our customers:

• Design and engineering services to ensure the highest quality and performance of our products
• Installation and maintenance services
• Troubleshooting and repair services
• Product training and support
• Warranty services

We also provide custom manufacturing and design services to meet your unique requirements. Our team of engineers is available to answer any questions you may have about our products and services.

If you have any questions or would like to learn more about our Hermetic Feedthrough Connectors, please don't hesitate to contact us.
