China 0.5-4 Ton Fixed Grate Coal Fired Steam Boiler Dzh Biomass Steam Boilers for sale

0.5-4 Ton Fixed Grate Coal Fired Steam Boiler Dzh Biomass Steam Boilers

Price Negotiable

Price: US3000-19500 set

MOQ: 1

Delivery Time: 15-25DAYS

Brand: TAIGUO

Product Description

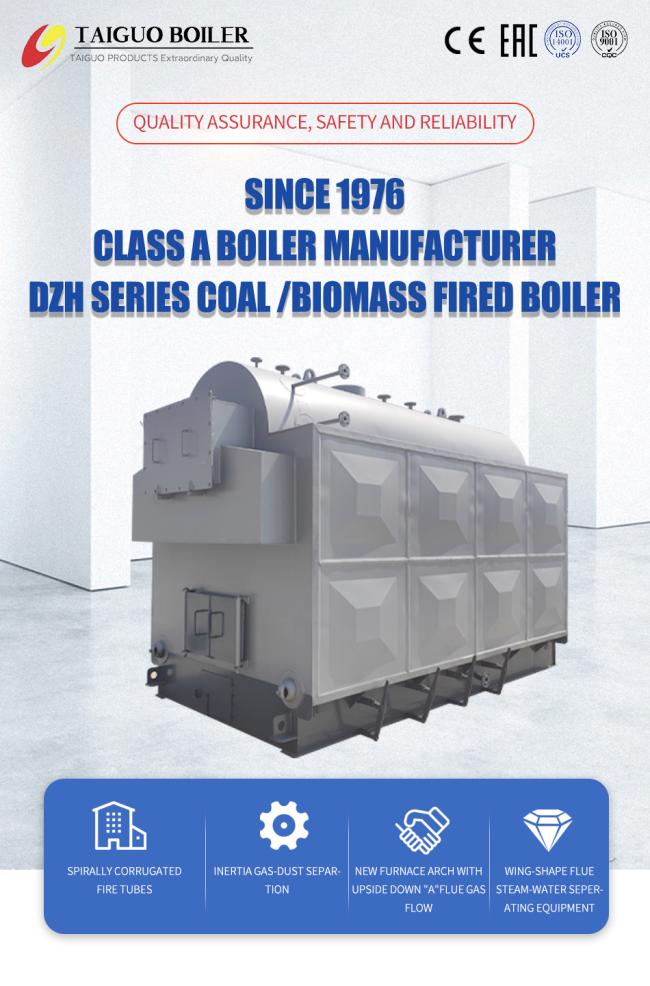

0.5-4 Ton Dzh Fixed Grate Coal Fired Steam Boiler for Sale

Mode l item		DZH0.5	DZH1	DZH2	DZH3	DZH4
Rated evaporation capacity(t/h)		0.5	1	2	3	4
Rated pressure( Mpa )		0 .7/ 1 .0	0 .7/ 1 .0/ 1 .25	0 .7/ 1 .0/ 1 .25	1 .25/ 1 .6	1 .25/ 1 .6
Rated steam temperature(℃)		170/ 184	170/ 184/ 194	170/ 184/194	194/204	194/204
Feed water temperature (℃)		20	20	20	20	20
Heating area(m)	Body	~21 .31	~33 .24	~59 .47	~72 .31	~92 .82
Heating area(m)	Economizer	8 .28	10 .56	27 .6	35 .2	69 .76
Effective area of garte(m)		1 .28	2 . 1	3 .36	4.5	5.2
Fuel type		Biomass pellet,wood sawdust,bamboo chip,wood block,straw,Jute, palm shell
Fuel Consumption (kg/h)		~150	~300	~600	~900	~1200
Flue gas temperature(℃)		~155	~155	~155	~155	~155
Themal efficiency (%)		~85	~85	~85	~85	~85
Weight of biggest part for transportation(t)		8	12	15	17 .6	22
Overall dimension of biggest part for transportation(m)		3 .32 .02 .7	4 . 12 .22 .9	4 .72 .43 .2	5 .22 .5 3 .3	5 .62 .6 3 .6

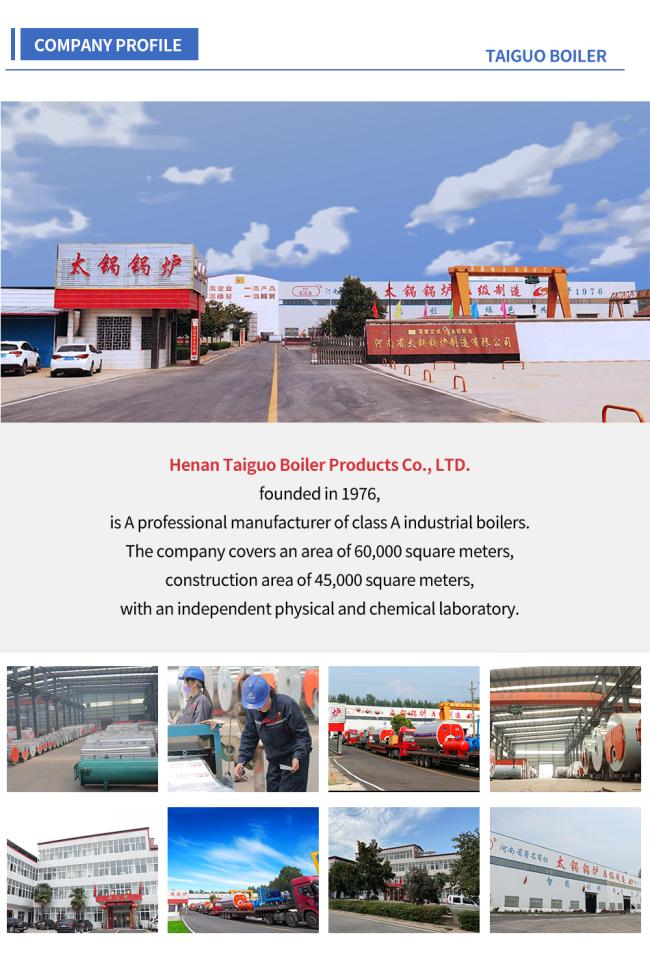

Henan Taiguo Boiler Manufacturing Co., Ltd founded in 1976, is the professional manufacturer of Grade A industrial boilers. The company covering an area of 60,000 m2, construction area of 45,000m2, owning independent physical and chemical laboratories. Henan Taiguo Boiler offer various industrial boilers, including Gas & Oil Fired Boiler, Coal Fired Boiler, Biomass Fired Boiler, Electric Heating Boiler, Thermal Oil Boiler,Steam Generator, Pressure Vessel, Hot Air Furnace, etc.
