Product Description:

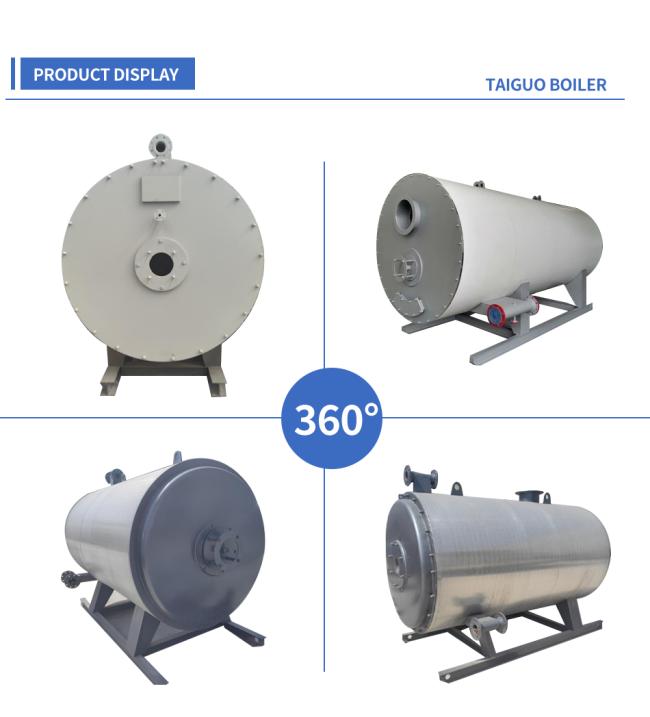

Thermal Oil Boiler is a type of biomass thermal oil heater boiler which is designed to provide high thermal efficiency, high design temperature, large boiler capacity and compact boiler structure, through the use of oil as fuel. With the fuel type of oil, the biomass thermal oil boiler can offer a high thermal efficiency up to 98% and can reach a maximum design temperature of up to 350℃. The large boiler capacity of Thermal Oil Boiler can meet the requirements of different applications. In addition, the compact boiler structure of Thermal Oil Boiler can ensure a small installation area and easy operation. Thermal Oil Boiler is also renowned for its superior safety performance .

Technical Parameters:

1. The flue gas three retures

2. Wet back structure

3. Compact coil tube

4. Multifunctional safety explosion-proof device

Product parameters

model ltem   YY(Q)W 350   YY(Q)W 500   YY(Q)W 700   YY(Q)W 1400   YY(Q)W 2100   YY(Q)W 2800   YY(Q)W 3500   YY(Q)W 4200   YY(Q)W 7000   YY(Q)W 14000 Rated thermal p ower KW 350 500 700 1400 2100 2800 3500 4200 7000 14000 Design pressure Mpa 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 Medium outlet t emperature C ≤350 ≤350 ≤350 ≤350 ≤350 ≤350 ≤350 ≤350 ≤350 ≤350 Heating area m 21.3 24 40 78.5 94.5 157 205.2 240 410 710 Fuel light oil/heavy/LNG/CG   Fuel Light oil   Kg/h 37 52 69 140 210 280 350 420 680 1360 LNG   Nm3/h 44 63 83 170 260 332 425 498 810 1620 Thermal efficiency 96% 96% 96% 96% 96% 96% 96% 96% 96% 96% Furnace oil cont ent m3 0.25 0.3 0.5 1.1 1.7 2.29 3.8 4.3 7 15.5   Boiler dimension s       mm   2100× 1390× 2055   2200× 1390× 2055   3240× 1470× 2260   4145× 1900× 2786   5020× 2050× 3080   5526× 2326× 3230   6555× 2470× 3634   6753× 2838× 3704   8200× 3050× 3800   12000× 3780× 4350 Boiler transport weight   T   2.58   3   3.7   6.9   8.8   11.5   17.8   19.8   27.5   42 Oil inlet   DN 80 100 100 125 150 150 200 200 250 350 Oil outlet   DN 80 100 100 125 150 150 200 200 250 350 Expansion tank   m3 1.5 1.5 1.5 2.5 2.5 3 3 4.5 6 8 Storage tank   m3 2.5 2.5 2.5 5 5 8 8 10 15 25 ChimneyΦ mm 280 280 280 350 400 400 500 500 700 1000

Applications:

FAQ:

Q1: How can you get the best price quickly?

1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.

Q2:Why choose us?

1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.

Q3: Details of electric control cabinet

Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.

Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
