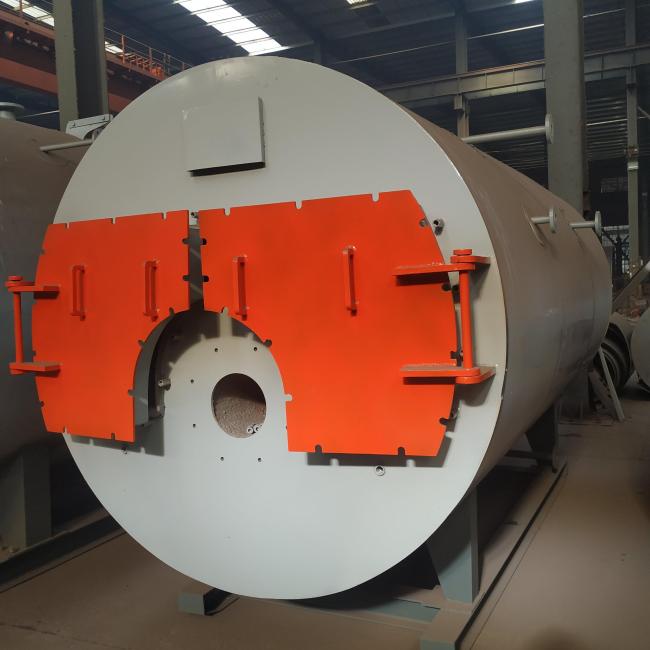

5t/h Gas Oil steam Boiler for Textile Industry 1.0/1.25/1.6Mpa Working Pressure
Product Description:
Gas oil steam boiler is a high quality and durable steam boiler fueled by gas or oil. It is designed with a horizontal construction form to ensure maximum efficiency and low emissions. It provides a wide range of evaporation capacity from 0.5t/h to 30t/h to provide reliable and consistent heating performance at working pressures of 1.0, 1.25 and 1.6Mpa, and has a multi-functional safety explosion-proof device to ensure long-term safe operation of the boiler.
Features:
- 1. Full wet back three trips.
2. Boiler pressure, water level set multiple control protection, as well as ultra-smoke temperature protection, to ensure the safety of boiler operation.
3. PLC is used for electrical components.
4. Provide high quality steam, steam temperature can be adjusted according to customer needs.
5. Fuels are diverse and environmentally friendly
Technical Parameters:
| Parameter | Value |
|---|---|
| Evaporation capacity | 5t/h |
| Installation mode | Skid Mounting |
| Boiler Type | Steam Boiler |
| Working pressure | 1.0,1.25,1.6Mpa |
| Country of origin | Zhoukou In Henan Province |
| Electrical element | PLC |
| Industry of use | Medicine, Chemical Industry, Light Industry, Textile, Culture, Food And Beverage, Plastic Foam, Paper And Paper Products, Wood Processing |
| Dimension | LCD Display English And Chinese Menu Can Touch Screen |
| Weight | 15t |
| Fuel Type | Natural Gas, Light Oil, Heavy Oil, Liquefied Petroleum Gas |
| Structural form | horizontal |
| Mode of transport | Sea, land, air |
| Steam temperature | 184,194,204℃ |
Applications:
Support and Services:
Oil boiler technical support and service
We offer comprehensive technical support and service for our oil fired boiler products. Our experienced staff will assist you with installation, maintenance and troubleshooting. We also offer extended warranty and repair services for our boilers.
If you need help with your gas oil boiler, please contact us. We offer you the best service around the clock. We also have a team of certified technicians who can help you with any technical issues.
Packing and Shipping:
Packing and transportation of oil fired boilers
The body of the gas and oil steam boiler is naked, and the required accessories are packaged in the box according to the type, and the label is affixed to the box to indicate the product name. All packages are insured to ensure that any damage during transit is covered.
The shipping process is handled by professional shippers who deliver the packages in a timely manner. Customers can expect their gas-fired boilers to arrive within the expected delivery time.
FAQ:
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
