Horizontal Gas Oil Boiler 0.5t/H-30t/H Industrial Gas Steam Boiler
Product Description:

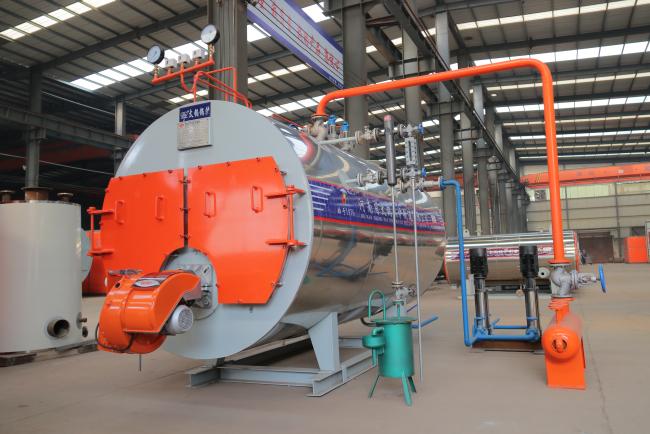

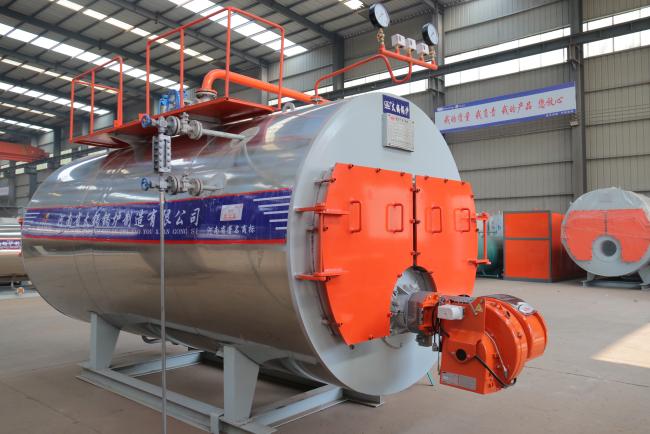

The AIGUO WNS series oil/gas boiler is an automatic horizontal internal combustion three return wet back type oil (gas) quick loading boiler. It features a large combustion chamber design that allows for fuller combustion. The pipe thread structure is designed to enhance heat transfer. The boiler is equipped with international first-class brand burners and valves, as well as an automatic control device and safety protection device. The automatic water level control, low water level alarm, furnace stop device, automatic steam pressure control, and overpressure alarm are all included. The boiler also comes with automatic ignition, burner fire automatic regulation, and flameout safety protection to ensure the safe operation of the boiler. This boiler is usually suitable for 500kg to 20t/h capacity.
Features:
This design features three returns, making it effective in lowering exhausted smoke temperature. It has been developed with the latest technology, incorporating a combustion chamber with large volume as well as a renowned world-class burner, guaranteeing supreme efficiency and minimal failure rate.
Furthermore, this design has adopted an improved corrugated furnace pipe structure that increases the heat surface area while allowing the furnace pipe to freely expand when exposed to high heat. It has also been equipped with a wet back structure that is renowned for its reliable performance and minimal maintenance cost.
The wet type flue gas flow and compact construction help in preventing tube plate cracking. With careful calculation of the heated area, this design can confidently provide an assured output capacity.
Technical Parameters:
| Parameters | Value |
|---|---|
| Steam temperature | 184,194,204 |
| Dimension | LCD Display English And Chinese Menu Can Touch Screen |
| Thermal efficiency | 96% |
| Installation mode | Skid Mounting |
| Fuel Type | Natural Gas, Light Oil, Heavy Oil, Liquefied Petroleum Gas |
| Electrical element | PLC |
| Evaporation capacity | 0.5t/h-30t/h |
| Industry of use | Medicine, Chemical Industry, Light Industry, Textile, Culture, Food And Beverage, Plastic Foam, Paper And Paper Products, Wood Processing |
| Country of origin | Zhoukou In Henan Province |
| Boiler Type | Steam Boiler |
Applications:
Applications: textile factory, food and beverage, chemical industry, light industry, rubber, printing and dyeing factory, paper factory, wood process-ing, clothing,laundry, etc.
Packing and Shipping:
Gas Oil Boilers are packaged in wooden crates or protective packaging to ensure that they are securely transported to their destination. The crates are designed to absorb the vibrations and impacts of shipping and to protect the unit from weather and other elements.
We offer a variety of shipping options to meet your needs. We can ship via air, sea, rail, or any other means of transportation you prefer. We will provide tracking information so you know where your product is at all times.
FAQ:
1. How to buy a good boiler?
a. Choose a good supplier, A grade boiler manufacturer.
b. Specification is clear, steam or hot water, capacity,fuel,pressure and so on
c. Price is not the only problem, quality and service also important.
2. What is your main product?
Steam boiler, hot water boiler, thermal oil boiler and pressure autoclave.
Gas fired boiler, oil fired boiler, diesel fired boiler, coal fired boiler, biomass fired boiler.
Industry boiler, paper machine boiler, sugar mill boiler, printing industry boiler, food industry boiler,
power plant boiler,textile mill boiler, garment industry boiler and so on.
3. Why choose us?
a. A grade boiler factory, long history since 1976.
b. Henan boiler industrial area, Taikang No.1 boiler factory
c. China famous brand, ISO certificate
