Wns Factory Automatic Diesel Waste Oil Fired Steam Boiler Price
Product Description:

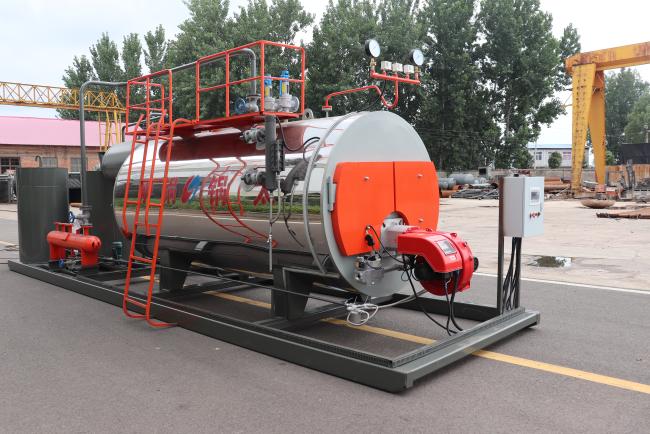

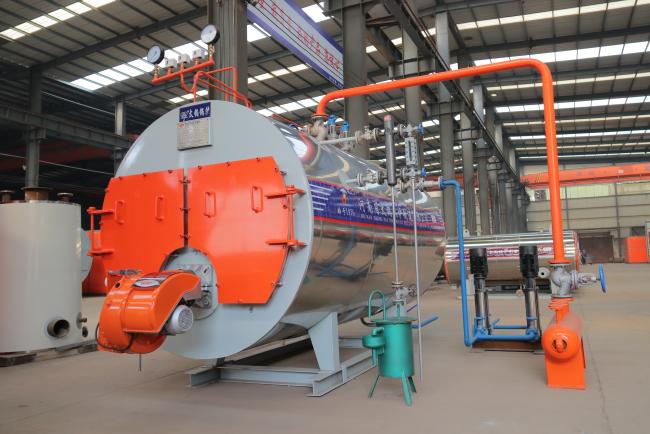

TAIGUO WNS series oil/gas boiler is a kind of automatic horizontal internal combustion three return wet back type oil (gas) quick loading boiler, combustion chamber large volume design, make the combustion more full; The pipe adopts thread structure to enhance the heat transfer effect. Boiler equipped with international first-class brand burner and valve group and perfect automatic control device and safety protection device, to achieve automatic water level control and dangerous low water level alarm, stop the furnace; Automatic steam pressure control and overpressure alarm; Boiler automatic ignition, burner fire automatic regulation and flameout protection, to ensure the safe operation of the boiler. Usually suitable for 500kg to 20t/h capacity.
Features:
- It has the three returns design, so exhausted smoke temperature is low;
- Adopted the latest technology, it is designed with a combustion chamber with large volume.It is equipped with a world-known burner,making the combustion more sufficient and ensuring higher efficiency and lower failure rate.
- It adopts advanced corrugated furnace pipe structure,increasing the heat surface area, and satisfying free expansion of the furnace pipe after heating.
- It adopts wet back structure with high reliability and low maintenance cost.The wet type flue gas flow and compact structure to prevent the tube plate cracking,Science and calculate the heated area, output assured;
Technical Parameters:
| Parameter | Value |
| Boiler Type | Steam Boiler |
| Thermal efficiency | 96% |
| Dimension | LCD Display English and Chinese Menu Can Touch Screen |
| Fuel Type | Natural Gas, Light Oil, Heavy Oil, Liquefied Petroleum Gas |
| Evaporation capacity | 0.5t/h-30t/h |
| Mode of transport | Land, Air, Sea |
| Weight | 6.8t-62t |
| Quality guarantee | 1 Year |
| Electrical element | PLC |
| Structural form | Horizontal |
| Oil-Burning Heating Boiler | Yes |
| Gas Fired Boiler | Yes |
| Oil Burning Boiler | Yes |
Applications:
Applications: textile factory, food and beverage, chemical industry, light industry, rubber, printing and dyeing factory, paper factory, wood process-ing, clothing,laundry, etc.
Packing and Shipping:
Gas Oil Boiler Packaging and Shipping:
The gas oil boiler will be packaged in a cardboard box or wooden crate for extra protection during shipping. The size and weight of the gas oil boiler will depend on the size and capacity of the boiler.
The gas oil boiler will be shipped via a truck, depending on the size and weight of the boiler.
The gas oil boiler is shipped with all the necessary installation instructions and manuals.
FAQ:
1. How to buy a good boiler?
a. Choose a good supplier, A grade boiler manufacturer.
b. Specification is clear, steam or hot water, capacity,fuel,pressure and so on
c. Price is not the only problem, quality and service also important.
2. What is your main product?
Steam boiler, hot water boiler, thermal oil boiler and pressure autoclave.
Gas fired boiler, oil fired boiler, diesel fired boiler, coal fired boiler, biomass fired boiler.
Industry boiler, paper machine boiler, sugar mill boiler, printing industry boiler, food industry boiler,
power plant boiler,textile mill boiler, garment industry boiler and so on.
3. Why choose us?
a. A grade boiler factory, long history since 1976.
b. Henan boiler industrial area, Taikang No.1 boiler factory
c. China famous brand, ISO certificate
