Product introduction:

TAIGUO SZS series double barrel steam industrial boiler is a typical boiler barrel vertical "D" layout quick loading water tube boiler, micro-positive pressure operation. It is composed of an upper and lower pot tube, a film water cooling wall, superheater, convection tube bundle, energy saver and condenser, the burner is arranged in the front wall, the fuel is burned in the furnace, the flue gas successively washed the first convection tube bundle, superheater, second convection tube bundle, energy saver and condenser, discharged into the chimney.

Product characteristics:

(1) The boiler adopts double drum "D" type arrangement, compact structure, small footprint, good flame filling degree.
(2) The boiler is fixed at the front end and supported at the lower part. After ignition and heating, it can expand freely backward and upward, and the components work safely and reliably.
(3) The furnace water wall and convection flue are made of film wall structure, good air tightness, suitable for positive pressure operation, and effectively reduce the use of refractory materials and maintenance workload.
⑷ Self-supporting structure, good seismic performance. The weight of the body structure is placed on the steel base, and the membrane wall welded structure makes the whole boiler integrated, which is especially suitable for earthquake zones and earthquake fortified areas.
(5) The outer packing of the boiler adopts the pressing protection plate, which is beautiful and beautiful in appearance.
The furnace of the boiler is provided with an inspection hole, which provides great convenience for use and maintenance. Explosion-proof doors are provided on the top of the furnace.

Technical parameter:

Model ltem		SZS4	SZS6	SZS10	SZS15	SZ20	SZ25	SZS30	SZS35	SZS40
Rated evaporation (t/h)		4	6	10	15	20	25	30	35	40
Rated working pressure (Mpa)		1.25/ 1.6/2.5
Rate steam temperature (℃)		194/204/226
Feed water temperature (℃)		20	20	104/20	104/20	104/20	104/20	104/20	104/20	104/20
heating area(m)	Body	90.22	125.6	205.56	216.84	271.5	285.24	392.34	457.7	523.12
	Economizer	35.8	63.4	132.2	283.6	411.2	504.8	471.2	549.7	628.2
	Condenser	25.4	41.5	62.8	101.1	134.7	168.3	252.4	294.7	336.8
Available Fuel		natural gas ,biogas ,coke gas ,light oil ,methanol ,biodiesel etc ,heavy oil
Fuel consumption	Natural gas (Nm3/h)	288	432	720	1080	1440	1800	2160	2525	2881
	Light oil (kg/h)	244	372	620	930	1240	1550	1860	2079	2373
Thermal efficiency (%)		＞98
Weight biggest part of Transportation (t)		25	32	40	45	50.6	60	68.2	77	85.5
Overall dimension boiler assembied L×W×H( m )		5.76*4.1 0*3.70	7.84*3.4 0*3.40	8.00*3.60*4.70	8.90*3.9 0*4.00	8.90*3.9 0*4.00	10.50*4. 12*4.15	10.50*4. 30*4.23	11.78*4. 40*4.35	12.82*4. 45*4.40

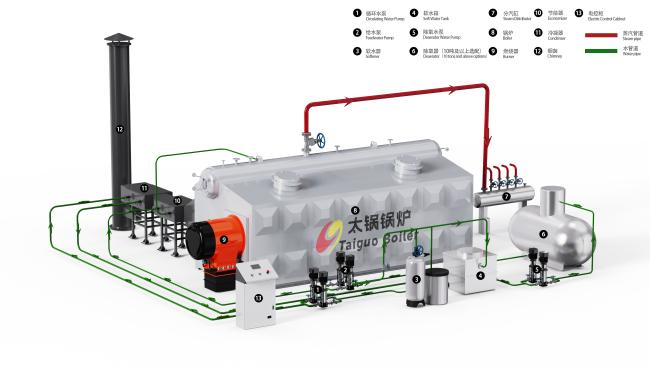

Product workflow:

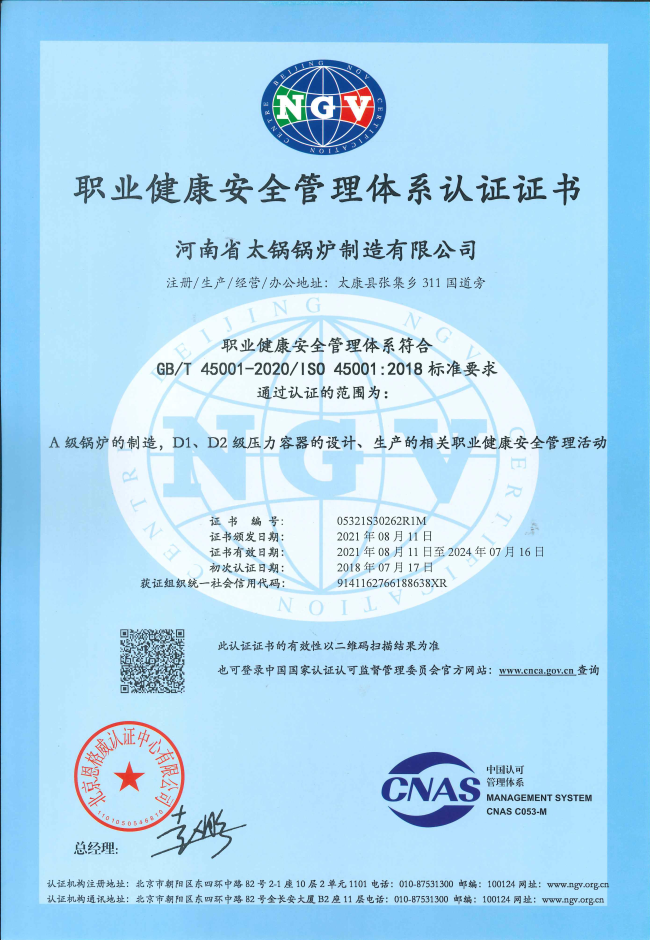

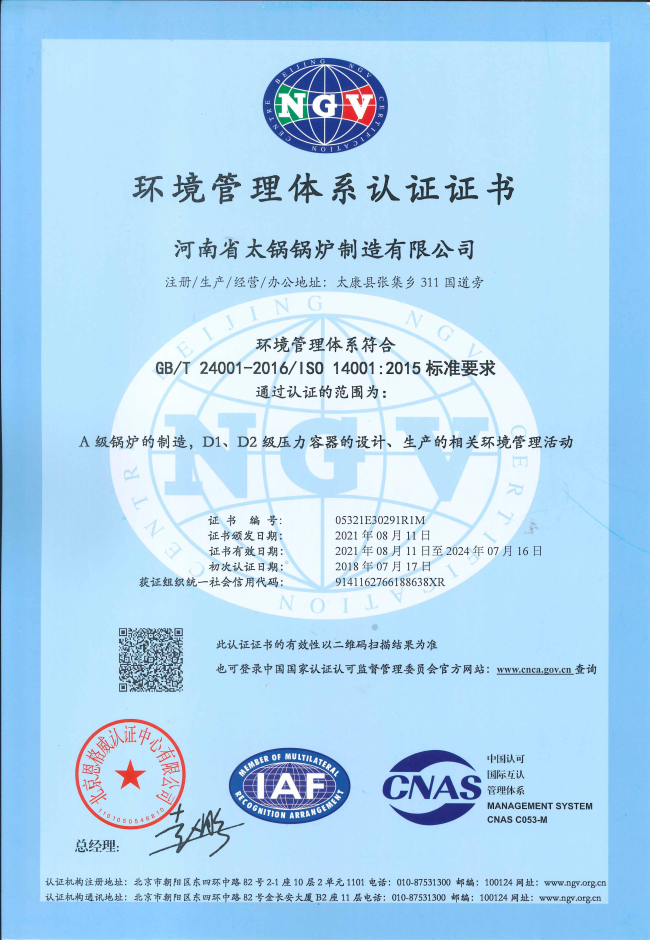

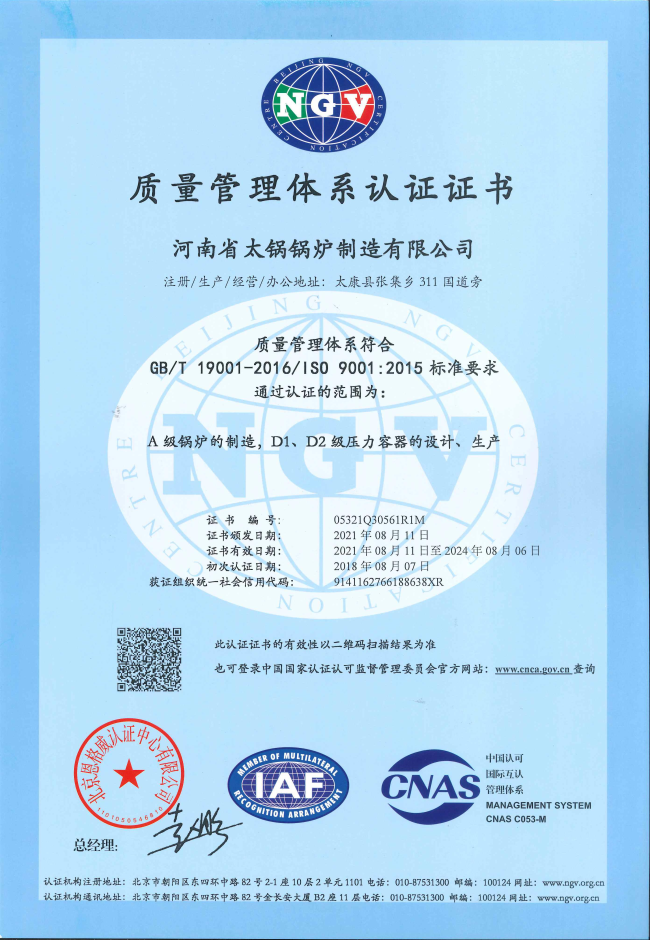

Qualification certificate:
