Automatic 1 Ton Wood Chip Steam Boiler Steam Generation From Biomass
Product Description:
TAIGUO Biomass DZL/DZH series Boiler uses high -efficiency heat transfer thread tobacco pipes, which strengthens the heat transfer effect, achieves the characteristics of boiler heating and fast pressure, and improves the thermal efficiency of the boiler. The smoke pipe is not easy to accumulate ash, and it plays a role in automatic cleaning. At the same time, the thicker furnace insulation design reduces heat dissipation loss. The independent wind chamber expanded the adaptability of coal. The structure is compactly saving the area of boiler room.
Features:
1. Single cylinder vertical arrangement, compact structure, small footprint, good flame filling degree.
2. The boiler furnace adopts the form of curved water-cooled wall tube and drum and left and right collecting box, which can expand freely upward.
3. The use of high efficiency heat transfer threaded smoke pipe, to obtain enhanced heat transfer effect, to achieve the boiler heating, pressure boost characteristics, improve the boiler thermal efficiency.
4. Compact structure, compared with the same type of boiler, small size, saving boiler room infrastructure investment.
Technical Parameters:
| Property | Parameter |
|---|---|
| Capacity | 0.5-4t/h |
| Type | Coal-fired grate steam boiler, Coal-fired steam boiler, Biomass steam boiler |
| Pressure | 0.7,1.0,1.25,1.6Mpa |
| Structural form | Horizontal |

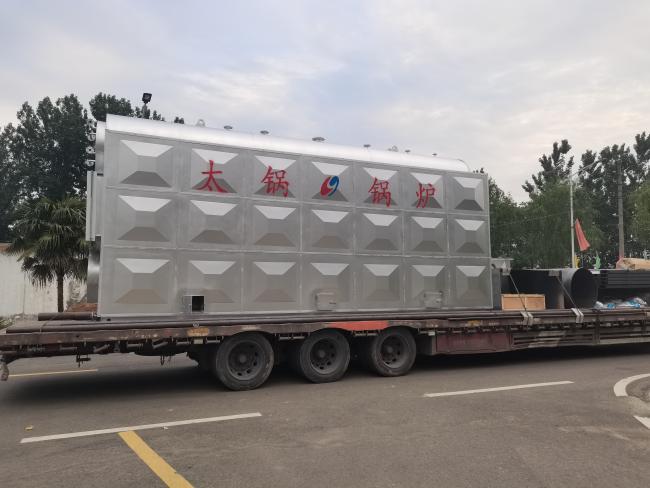

| Mode of transport | Sea And Land Transport |
| Efficiency | 89% |
| Temperature | 170,184,194,204 |
| Installation | Pry Mounting, Quick Mounting |
| Control System | PLC |
| Applicable industry | Chemical Industry, Light Industry, Textile, Culture, Building Materials, Printing And Dyeing, Paper Making, Food Processing, Wood Processing, Medicine, Etc |
Applications:
It is designed for various industries, including chemical, light industry, textile, culture, building materials, printing and dyeing, paper making, food processing, wood processing, medicine and so on. The structure of the boiler is horizontal, and the fuel used is biomass particles, wood chips, bamboo chips, wood chips, straw, palm shells, etc. The manual covers both sea and land transport, as well as skid mounting and rapid installation.
FAQ:
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
