Water Wall 1t/H Chain Grate Biomass Steam Boiler Industrial Vertical
steam boiler has sufficient output and high thermal efficiency

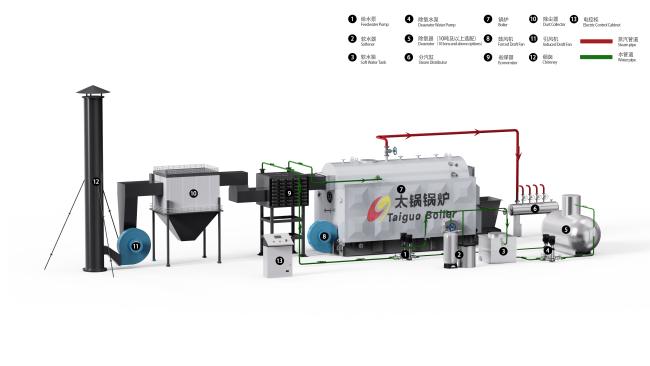

Product introduction:
DZL series boiler body in the overall structure of the upper cylinder, water wall tube and collecting box symmetrical arrangement of the form. The barrel is made of a cylinder with a diameter of 1400×14 and a front and back tube plate with a diameter of 1400×14. The water wall tube is a 51×3 boiler tube, the header is a 159×6 boiler tube, and the descending tube is a 133×6 boiler tube. The furnace of the boiler is equipped with a back arch and secondary air, and the combustion efficiency is high.
This series of boilers use the latest scientific research results, such as: arch tube plate, threaded smoke pipe, secondary air and other new technologies, better solve the shell boiler tube plate cracks, low thermal efficiency, insufficient output, poor fuel adaptability and other problems.
Product characteristics:
1. Stable operation, convenient adjustment, sufficient output.
2. The threaded smoke pipe is used to strengthen heat transfer, improve the heat transfer coefficient and thermal efficiency, because the flue gas has a disturbance in the pipe. The smoke pipe is not easy to accumulate ash, and plays the role of self-cleaning.
3. The eight-figure flue in the furnace and the exit smoke window have a certain dust reduction effect. The original dust concentration of the boiler is controlled below the standard to ensure that the boiler dust emission reaches the national environmental protection regulations.
Technical parameter:
|
item |
DZL1 |
DZL2 |
DZL3 |
DZL4 |
DZL6 |
DZL8 |
DZL10 |
DZL12 |
DZL15 |
||
|
Rated evaporation capacity(t/h) |
1 | 2 | 3 | 4 | 6 | 8 | 10 | 12 | 15 | ||
| Rated pressure(Mpa ) |
0 .7/ 1 .0/ 1 .25 |
0 .7/ 1 .0/ 1 .25 |
0 .7/ 1 .0/ 1 .25 |
1 .25/ 1 .6 | 1 .25/ 1 .6 | 1 .25/ 1 .6 | 1 .25/ 1 .6 | 1 .25/ 1 .6 | 1 .25/ 1 .6 | ||
| Rated steam temperat ure( ℃ ) |
170/ 184/ 194 |
170/ 184/ 194 |
170/ 184 / 194 |
194/204 | 194/204 | 194/204 | 190/204 | 194/204 | 194/204 | ||
| Feed water temperat ure( ℃ ) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | ||
| Heating Area( m) | Body | ~33 | ~50 | ~75 | ~100 | ~170 | ~200 | ~250 | ~340 | ~415 | |
| Economizer | 20 .7 | 25 .3 | 28 .6 | 33 . 12 | 87 .2 | 98 | 145 | 168 | 189 | ||
| Effective area of garte ( m) | 2 .22 | 4 . 1 | 5 .85 | 6.2 | 7 .95 | 9 .75 | 10 .77 | 13 .4 | 16 .6 | ||
| Fuel type | Biomass pellet,wood sawdust,bamboo chip,wood block,straw ,Jute, palm shell | ||||||||||
|
Fuel Consumption (kg/h) |
~200 | ~400 | ~600 | ~800 | ~1000 | ~1200 | ~1400 | ~1600 | ~1800 | ||
| Flue gas temperat ure( ℃ ) | ~150 | ~150 | ~150 | ~150 | ~150 | ~150 | ~150 | ~150 | ~150 | ||
| T hemal efficiency(%) | ~82 | ~82 | ~82 | ~82 | ~82 | ~82 | ~82 | ~82 | ~82 | ||
|
Weight of biggest part for t ransportation(t) |
17 | 18 .5 | 20 | 25 | 35 | 45 | 58 | 64 | 77 | ||
| Overall dimension of biggest part for t ransportation( m) |
5 . 1*2 .2 *3 |
5 .5*2 .3 *3 .3 |
6 .4*2 . 4*3 .5 |
6 .6*2 .6 *3 .6 |
8 . 1*2 .9 *3 .8 |
8 .3*3 . 1 *4 .0 |
8 .6*3 .2 *4 .2 |
9 .8*4 .2 *4 .5 |
12 .9*4 *7 .5 |
||
Mode l
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
