Industrial 1t/h Small Steam Boiler 50 Hp Gas Steam Generators
Price:
USD6000-29800 Set
MOQ:
1
Delivery Time:
30 working days
Brand:
Taiguo
Product Description
Small Steam Boiler Steam Generator 50 Hp Gas Steam Generators Price
Product introduction:

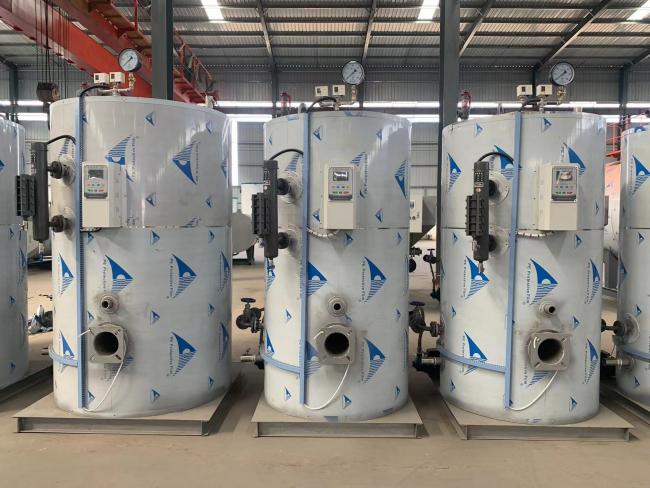

The TAIGUO vertical steam boiler operating system is fully automatic touch screen control, and all operating conditions can be clearly seen on the LCD screen. You can observe the working status, water level status, steam pressure high and low status, pump operation status, fault alarm status, etc. on the display screen, so that you can always grasp the operating status of the equipment and use it with peace of mind.
The use of high-quality components: All pipelines and instruments are connected with seamless steel pipes or pressure resistant copper pipes, and the electrical appliances are well-known in China, ensuring safe and reliable use.
Product advantages:
1.This boiler is adopted of tubeless to prevent any tube explosion. With big water capacity, the boiler can tolerate more variants. Fully automatic, easy maintenance.
2.Introducing advanced technology, energy-saving, easy operation, fast start-up.
3.Equipped with European brand burner with functions like flame detection, control of air and fuel, etc.
4.High quality steam, the dryness is above 96%.
5.Multi-safety protections such as pressure, temperature, water level, etc.
Technical parameter:
|
Model |
Rated Capacity (t/h) |
Rated Pressure (Mpa) |
Rated Temperature (C) |
Maximum transport weight of boiler(t) |
Maximum transport size of boiler( mm) |
Fuel Consumption | ||
|
diesel oil (Kg/h) |
Natural gas (m³/h) |
LPG (kg/h) |
||||||
| LHS0.05 | 0.05 |
0.4 |
151 |
0.37 | 700× 650×1700 | 8.2 | 10.2 | 6.45 |
| LHS0.1 | 0.1 | 0.59 | 800×750 ×2000 | 11.3 | 13.6 | 13 | ||
| LHS0.2 | 0.2 |
0.4~0.7 |
151~170 |
0.68 | 900× 850×2000 | 15.6 | 18.7 | 19.4 |
| LHS0.3 | 0.3 | 0.83 | 1000×950×2000 | 22.5 | 26.8 | 25.6 | ||
|
LHS0.5 |
0.5 |
1.07 |
1100×1050×2000 |
32.5 |
36.8 |
32 |
||
|
LHS0.7 |
0.7 |
0.4~0.7 |
151~170 |
1.45 |
1200×1150×2200 |
40.6 |
48.5 |
50 |
|
LHS1 |
1 |
1.78 |
1300×1250×2450 |
45.9 |
65.3 |
65 |
||
|
LHS1.5 |
1.5 |
1.9 |
1780×1600×3200 |
78.4 |
102.1 |
97 |
||
|
LHS2 |
2 |
5.2 |
2000×2000×4000 |
91.8 |
130.6 |
130 |
||
|
Note: 1,Fuel type:Light diesel oil/Heavy oil/Natural gas/Liquefied gas/City gas 2 ,Parameter is for reference only, we can design the boilers based on customers’ needs. |
||||||||
