WNS Horizontal 1-30t/h Oil-fired Gas Steam Boiler For Chemical Industry Factory
Product introduction:

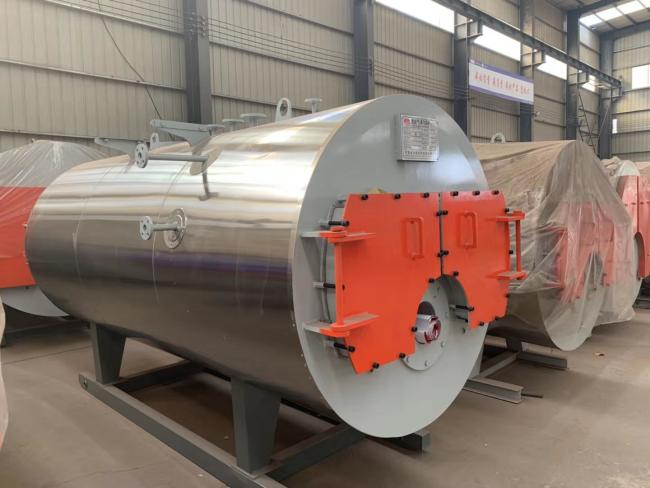

WNS horizontal gas oil boiler
Oil and gas boiler is a kind of high-tech safety, energy saving and environmental protection products, efficient automatic heating equipment. This series of equipment adopts horizontal, fire tube, three cycles, wet back structure, increase the condenser, so that the efficiency of the boiler is increased to more than 98%, saving the operating cost. At the same time, the boiler is equipped with leakage protection function, once the control system detects the leakage of the electric heating element, the boiler will automatically cut off the power supply, in order to ensure the safety of workers and boilers, and improve the service life of the boiler.
The boiler has the characteristics of compact structure, beautiful appearance, simple operation, safe and reliable operation, etc., and has been widely used in all walks of life.
Technical parameter:
| Model | Rated | Rated | Rated | Thermal | Fuel Consumption | |
|
Capacity (t/h) |
Pressure (Mpa) |
Temperature (C) |
Efficiency (%) |
Light oil (Kg/h) |
Natural gas (Nm³/h) |
|
| WNS1 | 1 | 0.7/1.0/1.25 | 170/184/194 | >96 | 45-100 | 18-100 |
| WNS1.5 | 1.5 | >96.2 | 101.73 | 123.47 | ||
| WNS2 | 2 | 1.0/1.25/1.6 | 184/194/204 | >96.2 | 137.09 | 165.97 |
| WNS3 | 3 | >96 | 205.75 | 249.6 | ||
| WNS4 | 4 | >96 | 272.3 | 329.5 | ||
| WNS5 | 5 | >96 | 134-402 | 80-500 | ||
| WNS6 | 6 | >96 | 134-402 | 80-500 | ||
| WNS8 | 8 | 1.25/1.6/2.5 | 194/204/225 | >96 | 523.4 | 631.5 |
| WNS10 | 10 | >96 | 212-890 | 150-1085 | ||
| WNS12 | 12 | >96 | 915.5 | 1090 | ||
| WNS15 | 15 | >96 | 931.5 | 1094.4 | ||
| WNS20 | 20 | >96 | 1380.33 | 1598.44 | ||
| Note: Parameter is for reference only, we can design the boilers based on customers’ needs. | ||||||
Henan Taiguo Boiler Products Co., LTD., with more than 50 years of manufacturing experience, is a professional manufacturer, engaged in the research, development, production, sales and service of steam boilers, hot water boilers, hot oil boilers, hot air boilers. Products are produced by cutting, coil plate, drilling, cylindrical welding and other technologies. We have obtained ISO9001, ISO 14001, C E, SGS, EAC certification. Our boilers are sold to 108 countries in the world, I sincerely hope to cooperate with you!
