Bochen WIW22S Cermet Element Converter Governor Inverter Resistance Switch Potentiometer
Bochen WIW22S Cermet Element Converter Governor Inverter Resistance Switch Potentiometer
Description
The WIW22S rotary potentiometer from BOCHEN is a high-precision component designed for accurate speed regulation in variable frequency drive (VFD) and industrial motor control systems. Built with a durable cermet resistive element, the WIW22S offers excellent reliability, stability, and control performance across a wide range of environments.
With a resistance range from 50Ω to 2MΩ and a rated power of 1W at 70°C, it delivers precise adjustment with minimal variation. The mechanical rotation of 280°±10° allows for smooth and wide-range tuning, while the device remains stable under temperature fluctuations from -25°C to +125°C.
Key Features
-
Wide resistance range: 50Ω to 2MΩ
-
High thermal stability: Operates from -25°C to +125°C
-
Precise adjustment: Electrical travel covers >70% of mechanical range
-
Low temperature coefficient: ±250ppm/°C
-
Robust cermet element for long service life
-
Rated power: 1W at 70°C
-
Reliable performance in humid and harsh conditions
Specification
| Electrical Characteristics | Nominal Resistance Range | 50Ω~2MΩ |
| Resistance Tolerance | ±10% | |
| Terminal Resistance | ≤5% R or 10Ω | |
| Contact Resistance Variation (CRV) | ≤5%R or 5Ω | |
| Insulation Resistance | Ri ≥1GΩ(100Vac) | |
| Withstand Voltagey | 600 Vdc | |
| Electrical Travel | >70% of Total Mechanical Travel | |
| Environment Characteristics | Humidity | 40±2℃,87-92%R.H 96h ΔR≤5%R, R1≥1MΩ |
| Rated Power | 1W 70℃, 0W 125℃ | |
| Temperature Range | -25℃~+125℃ | |
| Temperature Coefficient | ±250ppm/℃ | |
| Temperature Variation | -55℃, 30min, +125℃, 30min, 3 cycles, ΔR≤5%R, Δ(Uab/Uac)≤±10% |
|
| Collision | 100m/S2, 16ms, 1000 cycles ΔR≤2%R Δ(Uab/Uac)≤10% |
|
| Electrical Endurance At 70°C | 1W, 1000h ΔR≤10%R Δ(Uab/Uac)≤10% | |
| Rotational Life | 200 cycles ΔR≤10%R | |
| Physical Characteristics | Total Mechanical Travel | 280°±10° |
| Starting Torque | ≤35mN.m |

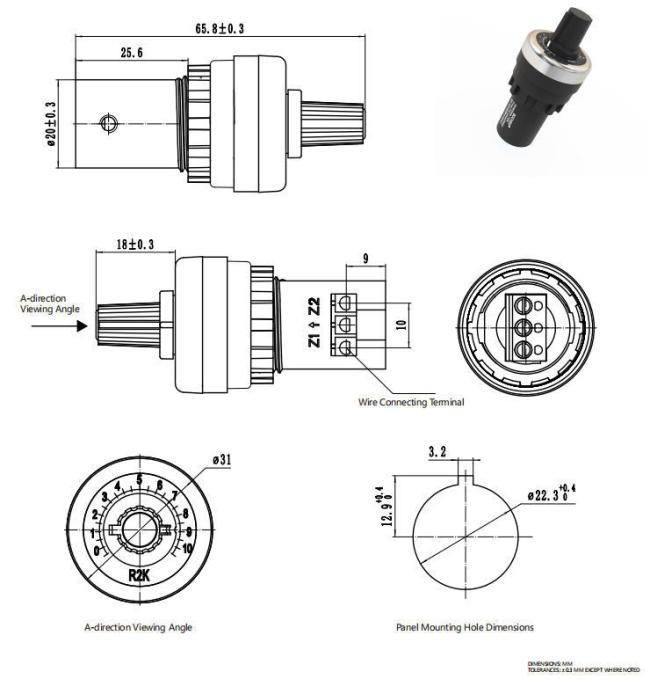

Dimension
Packaging
Packaging specification: 10 pieces per box.
Applications
The WIW22S potentiometer is engineered for use in a wide range of industrial and commercial systems that demand reliable and precise speed or voltage control:
-
Industrial Motors & Drives: Speed adjustment in conveyors, pumps, and automation lines
-
HVAC Systems: Fan and blower speed control for energy efficiency
-
Smart Manufacturing Equipment: CNC machines, automated assembly lines
-
Electric Vehicles: Motor speed regulation in EVs and e-bikes
-
Power Tools & Appliances: Variable speed control in drills, washers, and more
-
Renewable Energy: Control systems in wind turbines and solar trackers
-
Test Equipment: Accurate tuning in lab instruments and measurement setups
Why Choose BOCHEN WIW22S?
Built to deliver accuracy, durability, and versatility, the WIW22S is a trusted choice for engineers and system designers who demand stable performance in variable speed and voltage applications.
Advantage
• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
