RX20 10W~10KW Adjustable Wirewound Resistor with Chromium-alloy Wire for Stable Performance
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
RX20 10W~10KW Power Adjustable Wirewound Sliding Rheostat Resistor
Quick Detail
- Wide Power Range - Available from 10W up to 10,000W to meet diverse application needs
- Durable Construction - Chromium-alloy wire wound on high-quality ceramic base ensures long service life
- High Safety - Coated with flame-retardant, heat-resistant resin for reliable operation
- Excellent Insulation - Processed with high-temperature treatment for superior electrical performance
- Stable & Versatile - Offers strong resistance to humidity and a broad adjustable resistance range
- Custom Options - Supports mixed winding of flat and round wire to achieve tailored resistance values
Description
The RX20 series variable resistor is a high-power adjustable component designed for demanding applications. With a rated power range from 10W to 10,000W, it is constructed using a chromium-alloy wire as the resistance element, ensuring stable performance and long service life. The resistor body is coated with a flame-retardant, high-temperature resin, except at the sliding contact area, providing superior insulation and reliability.
Equipped with a central rotating adjustment mechanism, the RX20 allows smooth and precise resistance tuning across a wide range of values. Its robust design ensures excellent resistance to humidity and consistent performance under harsh conditions. Additionally, this series supports multiple resistance configurations--flat and round wire elements can be combined in a single rheostat to meet customized requirements.
Engineered for versatility, high power handling, and adjustable precision, the RX20 Variable Resistor is ideal for laboratory, industrial, and electronic control applications.
Specification
| Temperature Coefficient of Resistance: | Within ±440ppm/°C |
| Rated Power Free Air: | 10W~10000W |
| Operating Temperature Range: | -25°C~+225°C |
| Resistance Range (Ohms): | See resistance range chart below |
| Tolerance: | ±5%, ±10% as per resistance range chart below |
| Type | Resistance Value | Tolerance |
|---|---|---|
| 100W | 1R0 - 2K7 | 5% |
| 120W | 1R0 - 2K7 | 5% |
| 150W | 1R0 - 2K7 | 5% |
| 200W | 1R0 - 2K7 | 5% |
| 300W | 1R0 - 2K7 | 5% |
| 400W | 1R0 - 2K7 | 5% |
| 500W | 1R0 - 2K7 | 5% |
| 600W | 1R0 - 2K7 | 5% |
| 750W | 1R0 - 2K7 | 5% |
| 1000W | 1R0 - 2K7 | 5% |
| 1200W | 1R0 - 2K7 | 5% |
| 1500W | 1R0 - 2K7 | 5% |
| 2000W | 1R0 - 2K7 | 5% |
| 2500W | 1R0 - 2K7 | 5% |
Dimension
Application
The RX20 Variable Resistor is widely used in applications requiring adjustable resistance and high power handling. Typical uses include:
- Power Electronics - Current limiting, load regulation, and power control
- Testing & Calibration - Adjustable resistance for circuit testing, lab experiments, and calibration systems
- Industrial Equipment - Motor drives, speed regulation, welding machines, and heating control
- Educational & Research - Training kits, teaching labs, and research instruments requiring variable load adjustments
- Energy Systems - Load banks, renewable energy testing, and voltage regulation
Its high reliability, flameproof design, and broad resistance range make it suitable for both industrial and educational environments.
Advantage
- Factory direct supply, no middlemen
- Completed certificates such as RoHS, REACH, etc and best quality assurance
- Sufficient production capacity, short delivery time
- Professional after-sales service team
- OEM&ODM available

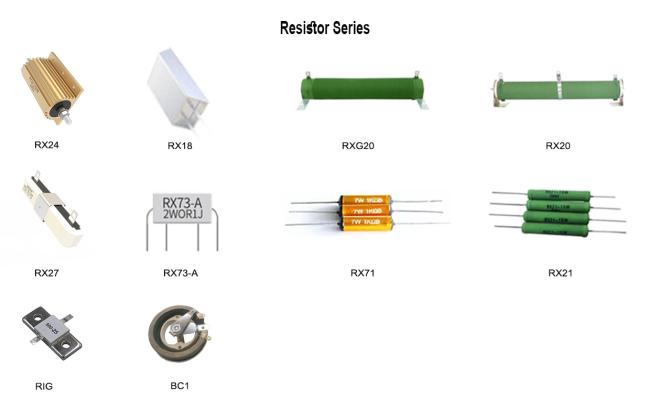

Product Catalog
