BOCHEN RX24 25W 100R Wirewound Resistor with 0.1~50KΩ Resistance Range ±1% or ±5% Tolerance and Solder Lug Terminals
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
BOCHEN RX24 25W 100R Solder Lug Terminals Wirewound Resistor For Motor
Key Features
- Rated power: 25W
- Rated resistance range: 0.1~50KΩ, tolerance: +1%, +5%
- Solder lug terminals for secure connections
- Gold aluminum housing with high-quality alloy wire winding
- High temperature resistance and excellent heat dissipation
- Strong load capacity and easy installation
- Supports personalized special customization
Product Description
The RX24 25W Wirewound Resistor is a compact, high-performance solution designed for demanding electronic and industrial applications. Built with durable alloy resistance wire wound on a robust core, it ensures excellent stability and long-term reliability even under continuous load.
The resistor features a gold anodized aluminum body that enhances thermal transfer efficiency and supports installation on cooling plates, making it suitable for high-temperature environments. Its encapsulation with non-combustible, inorganic insulating material provides outstanding vibration endurance and electrical safety.
With solder lug terminals for secure connections, the RX24 25W resistor is widely used in power converters, industrial controllers, elevator systems, audio equipment, and test instruments. It offers excellent heat dissipation, strong load capability, and customizable specifications for both standard and special-purpose projects.
Technical Specifications
| Rated power at 25℃(W) | Range (Ω) | Tolerance (%) | T.C.R. (*10-6/℃) | Voltage (V) |
|---|---|---|---|---|
| With heatsink | Without heatsink | 0.01~1K | ±1, ±5 | ±100, ±50 | 1000 |
| 5 | 3 | 0.01~1.5K | |||
| 10 | 8 | 0.01~10K | |||
| 20 | 12.5 | 0.01~27K | |||
| 30 | 15 | 0.01~33K | |||
| 50 | 20 | 0.01~39K | |||
| 75 | 45 | 0.01~51K | 2000 | ||
| 100 | 50 | 0.01~56K | |||
| 150 | 55 | 0.01~62K | |||
| 200 | 50 | 0.01~68K | |||
| 250 | 60 | 0.01~75K | |||
| 300 | 75 | 0.01~82K | |||
| 500 | 200 | 0.01~82K |

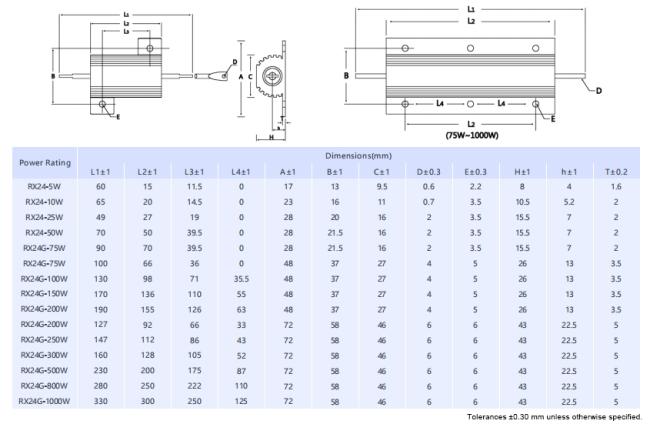

Product Dimensions
Applications
The RX24 25W Wirewound Resistor is widely used in power supply systems, motor drives, and frequency converters for precise load control. It provides stable braking resistance in elevator and transportation systems, and is used in audio equipment, LED lighting, broadcasting systems, industrial automation, renewable energy equipment, and test instrumentation.
Product Advantages
- Factory direct supply with no middlemen
- Certified with UL, RoHS, SGS and quality assurance
- Sufficient production capacity with short delivery time
- Professional after-sales service team
- OEM & ODM services available
