50W 100W 150W 200W 300W 500W BC1 Power High Power Sliding Rheostat Rotary Variable Wire Wound Resistor Potentiometer Disc Shape
Description

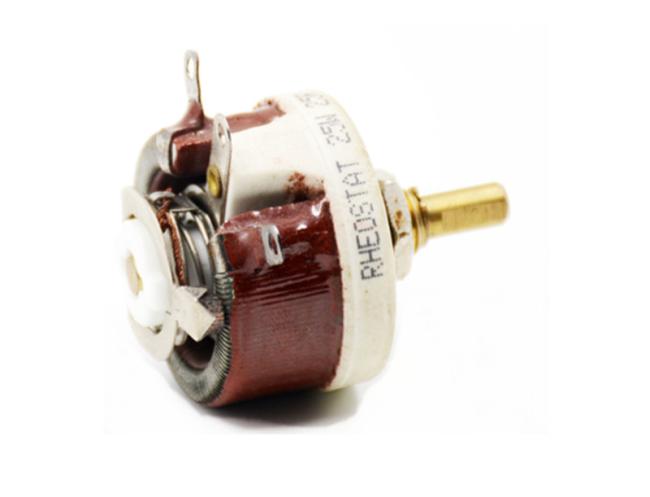

1. The disc vatiable resistor uses an alloy resistance wire wound around a circular ceramic frame and then fixed by high-temperature glaze sintering. A rotating shaft at the center of the ceramic disc drives a brush on the resistive element, thus obtaining a changing resistance value. The product features high power, moisture resistance, and a wide adjustment range.
2. Power: 25W-500W; Common resistance values: 10Ω-1KΩ.
3. Applications: Suitable for voltage and current regulation in industrial electrical equipment with voltage not exceeding 500V, as well as for voltage adjustment of AC/DC generators and speed regulation of small DC motors.
4. Complies with RoHS regulations and LEAD-FREE standards.
Specification
Product Catalog
