Precision Metal Film Resistor 1% 2% 5% MF 1/6W 1/4W 1/2W 1W 2W Original Manufacturer Metal Film Resistor

Description

Metal film precision resistance is formed by using high-temperature vacuumcoating technology to tightly attach nickel chromium or similar alloys tothe surface of ceramic rods to form a skin film, After cutting andadjusting the resistance value to achieve the final required precisionresistance value, it is then cut with appropriate joints and coated withepoxy resin sealing protection on its surface. Due to its lead typeresistor, it is convenient for manual installation and maintenance, and isused in most household appliances, communication, and instruments.

Features

• Compared to precision plug in resistors and winding resistors,its appearance is small and exquisite. If it is a small volumeproduct, it will save space very much. The consistency of the SMTmachine welding is good, and the efficiency is high.
• The highest accuracy can be achieved by 0.01%, and the lowesttemperature coefficient can be achieved by 5PMM.
• Wide size range, with a minimum of 020l and a maximum of 2512.
• High cost-effectiveness, about twice as cheap as cylindricalmetal film resistors of the same specification, and somespecifications may even be more expensive.

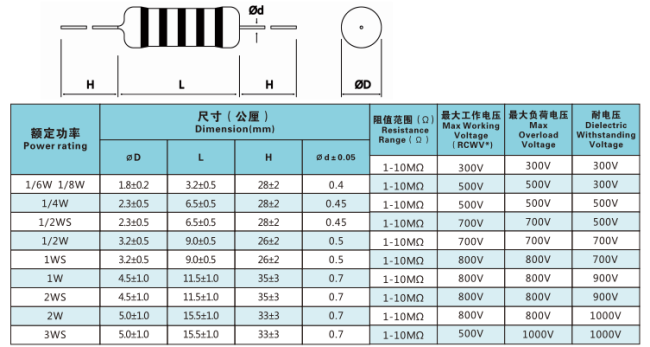

Specification
