Description

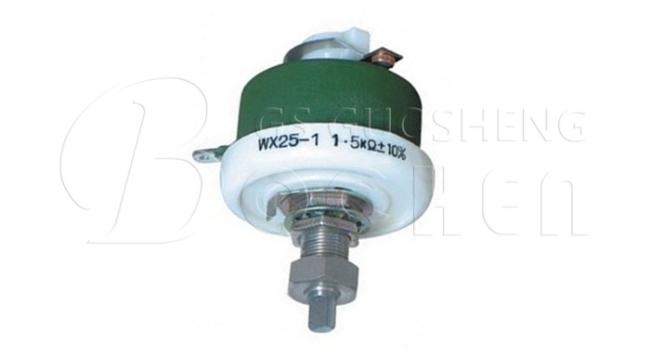

The WX25 is a compact, high-power wirewound potentiometer widely used in electrical and radio equipment for voltage division and adjustable resistance applications. It offers a rated power of 25W at 85°C, a broad resistance range from 2.2Ω to 8.2kΩ, and excellent electrical reliability with low noise and stable performance. Designed for harsh environments, it withstands temperatures from –55°C to 300°C, strong vibration, shock, and humidity conditions. With durable mechanical endurance and customizable shaft options, the WX25 is ideal for demanding industrial and instrumentation applications.

Features

• compact size, large power.
• Bespoke shaft dimension and shape available upon request.
• Widely used in electrics and radio equipment, as voltage divider and variable resistor.

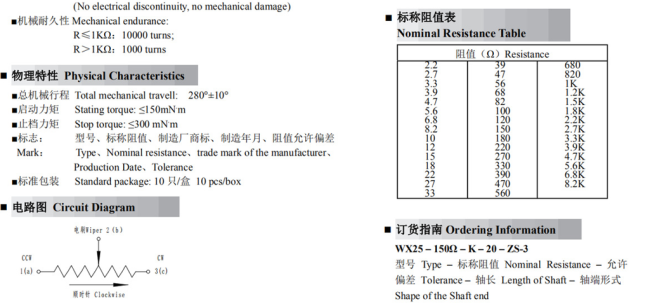

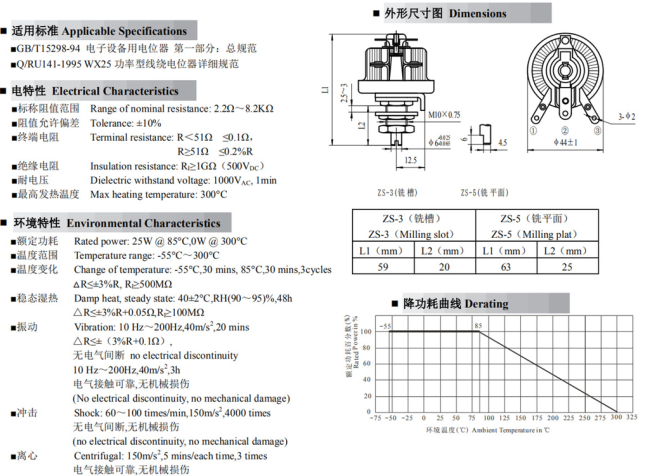

Specification
