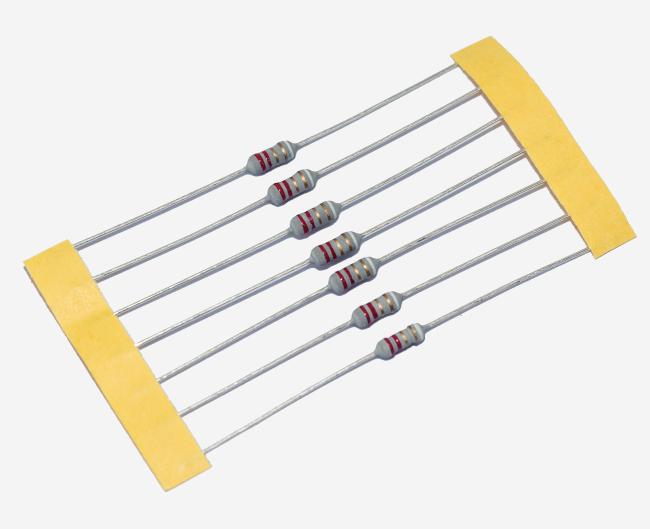

Wirewound Fuse Resistor 1/8W 1/4W 1/2W 1W 2W 3W 5W 5% Tolerance Winding Metal Film Resistor KNP Wirewound Resistors

Description

Fuse Metal Film Resistor is designed with true fuse characteristics and a nonflammable structure, ensuring reliable circuit protection. It offers a resistance range from 0.1Ω to 1kΩ with ±5% tolerance. The fifth color band (white) indicates the fuse type. Featuring stable performance, fast fusing under overload, and high dielectric withstand voltage, this resistor is suitable for safety-critical applications. Available in both Standard (gray coating) and Miniature (pink coating) versions, it provides dependable overcurrent protection while maintaining precise resistance values.

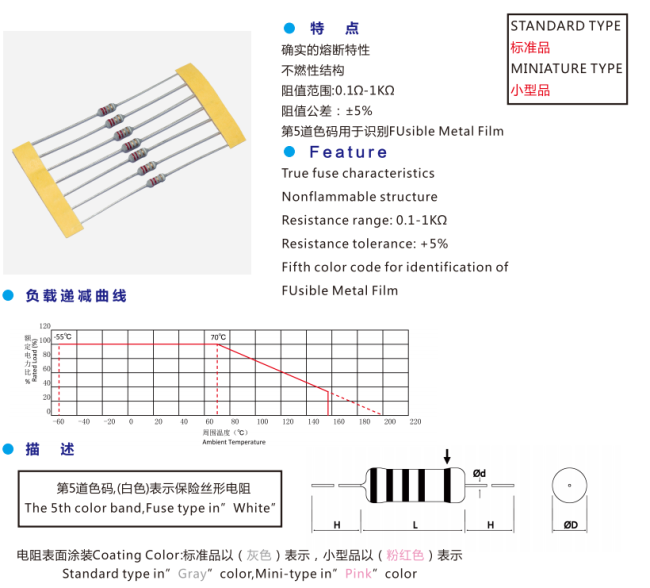

Features

• True fuse characteristics.
• Nonflammable structure.
• Resistance range:0.1-1K ohm.
• Resistance tolerance:+5%.
• Fifth color code for identification of Fusible Metal Film.

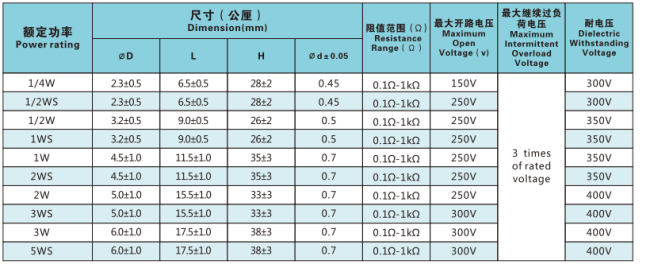

Specification
