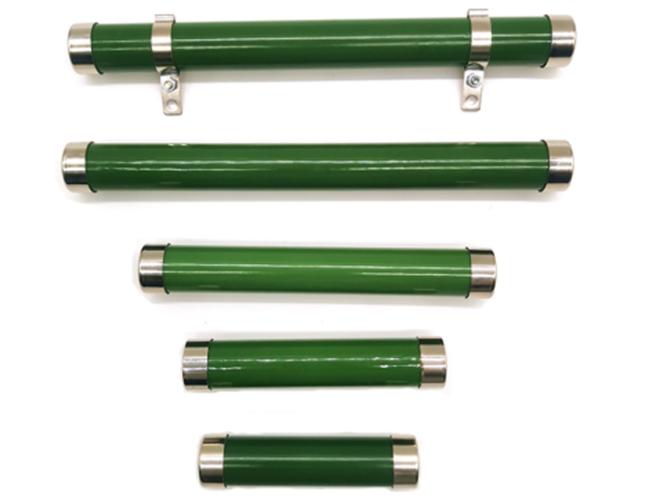

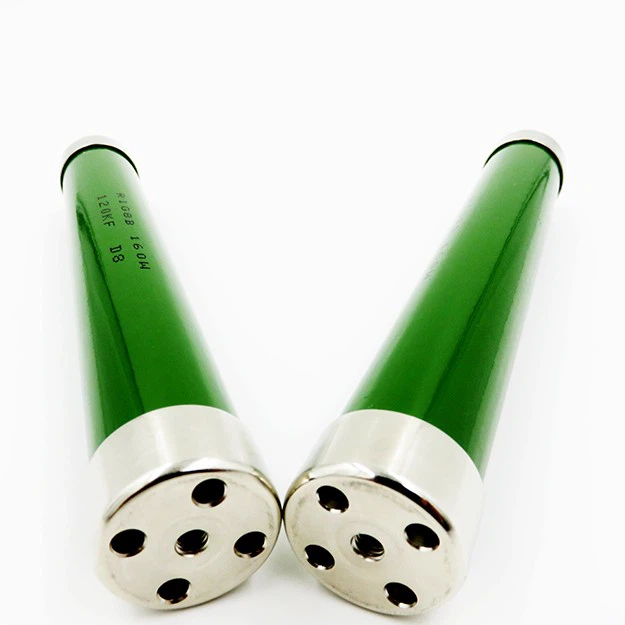

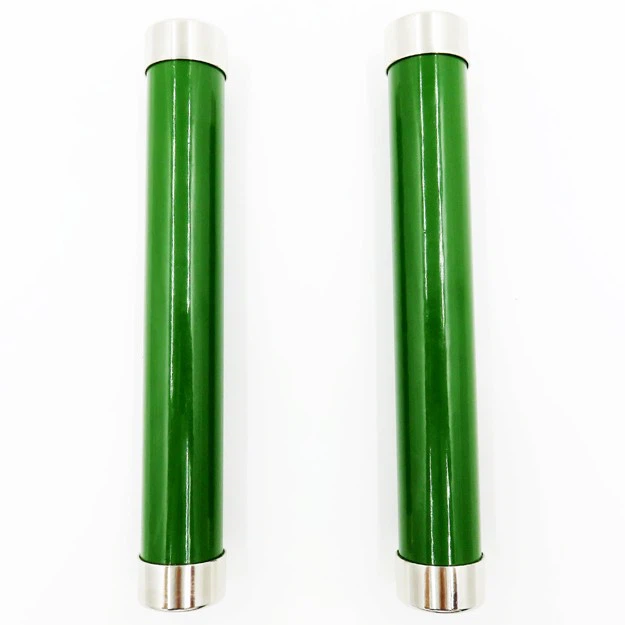

Description

• Film materials: Metal Glaze.
• Film: All covered or part covered.
• Core: ceramic rod(Al203 content over 95%).
• Coating materials: low temperature vitreous enamel.
• Power Range:5W-25WResistance range: 100 0hm-100G Ohm.
• Resistance tolerance:+1%-+10%.
• Resistance temperature coefcient: +25PPM-+200ppm.
• Specialty: Good overload and high voltage performance;High resistance and low inductance; can be widely usedin high voltage load, voltage divider circuit.
• Special Requirements: Negotiate meet.

Features

• Non Inductive Design
• Thick Film Technology
• Low TCR
• High Voltage to 200KV

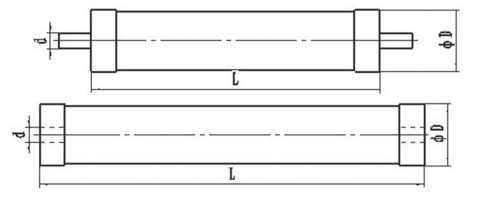

Dimension

Application

Mainly used in high voltage dividers, high voltage measurement, aging test equipment, electronic loads, high voltage inverters and high voltage soft starters; electrostatic dust removal equipment; high voltage power supplies.
